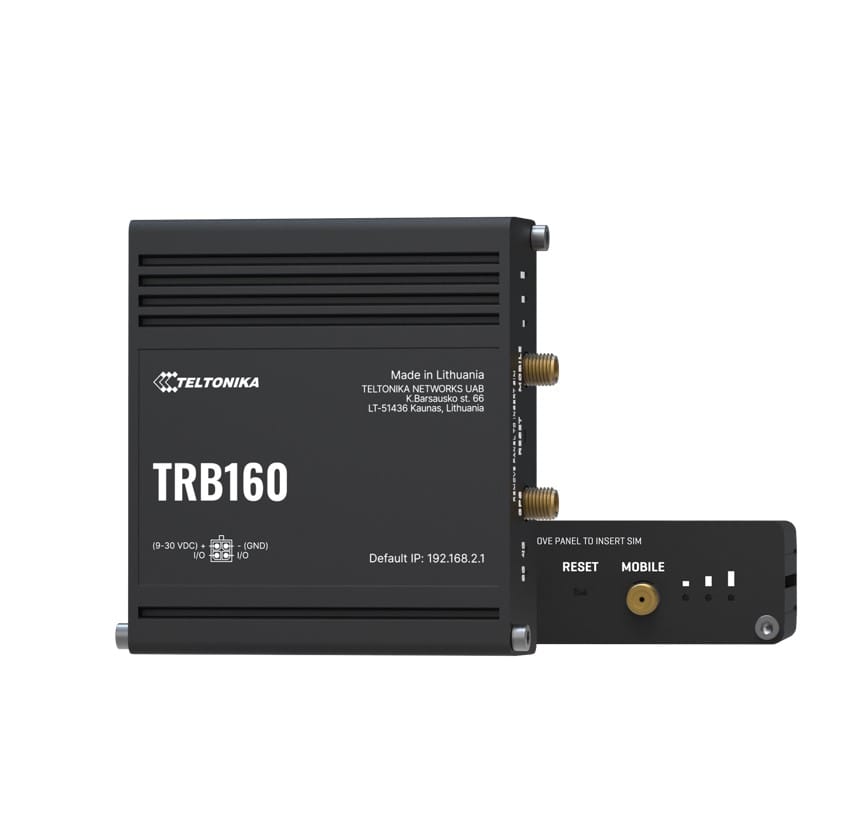

Teltonika 4G LTE CAT 6 IoT Gateway, Ultra-Small, Lightweight, Energy-Efficient, Cellular speeds of up to 300 Mbps, USB Type-C, PSU included
TRB160 is a compact industrial 4G (LTE) gateway equipped with a Gigabit Ethernet port, Type-C, a powerful CPU and RutOS software for advanced networking solutions. - PSU included
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Steel |
| Enclosure material | Aluminium |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP30 |
| Enclosure International Protection (IP) code | IP30 |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Antennas quantity | 1 |
| Short Message Service (SMS) |
 |
| Performance | |
| Control display unit |
 |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | ARM |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | ARM Cortex |
| Processor model The model number for the processor in a computer. | Cortex-A7 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 1200 MHz |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 128 MB |
| Flash memory | 256 MB |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Data link protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
| DMZ support |
|
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 4G LTE category | 4 |
| Mobile network generation | 4G |
| Data network Telecommunications network that allows computers to exchange data. | 3G, 4G |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) |
|
| Security | |
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Network address translation (NAT) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| Management features | |
| Quality of Service (QoS) support |
|
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 3.3 W |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| DC input voltage | 9 - 30 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 74.2 mm |
| Depth The distance from the front to the back of something. | 83 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 172 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| SKU | 808657 |
| MPN | TRB160 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
