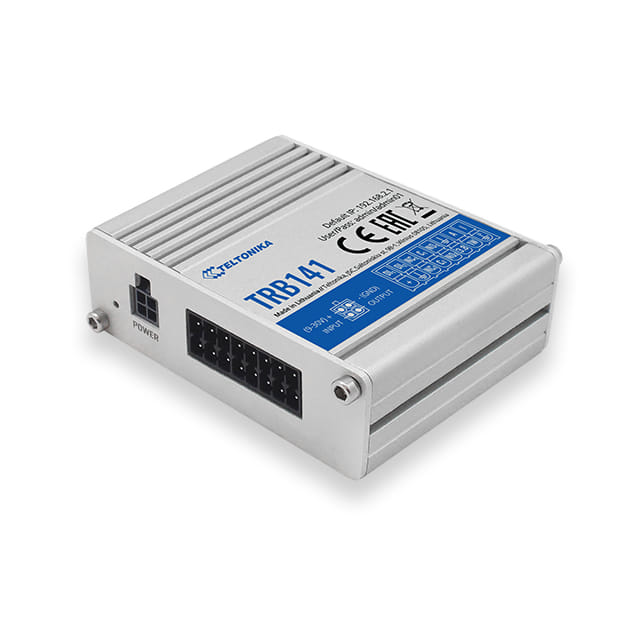

Teltonika TRB141 Linux based LTE Gateway Board

Protocols
Management protocols	HTTP/HTTPS, JSON-RPC, RMS
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT

Security
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	256-bit AES,DES,HTTPS,SSH,SSL/TLS
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.
VPN support	OpenVPN, IPsec, GRE, PPTP, L2TP
NAT functionality	NAT, NAT-T

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Dynamic DNS (DDNS)

Management features
Web-based management Using a website/web application to manage something.
Reset button

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
SIM card slot Whether the device features a SIM card slot.
SIM card type	MiniSIM

Weight & dimensions
Width The measurement or extent of something from side to side.	70 mm
Depth The distance from the front to the back of something.	18 mm
Height The measurement of the product from head to foot or from base to top.	60 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	136 g

Power
DC input voltage	9 – 30

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%

Technical details
Built-in processor Whether or not a processor is built into the device.
Number of processors installed Number of processors in the product.	1
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1200 MHz
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Wireless connection Wireless is a term used to describe telecommunications in which electromagnetic waves (rather than some form of wire) carry the signal over part or all of the communication path.
Short Message Service (SMS)
Number of simultaneous SIM cards	1

Indication
LED indicators

Certificates
Safety List of regulatory safety standards for all countries in which this product has been certified.	IEC 62368-1:2014, EN 50385:2017, EN 62232:2017
Certification	CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 EN 61000-4-11:2004

Memory
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	128 MB
Flash memory	512 MB

Packaging content
Manual

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Antenna connector type The way in which the antenna is connected to the device e.g. coaxial.	SMA
Antennas quantity	1

Design
Product colour The colour e.g. red, blue, green, black, white.	Grey
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP30
