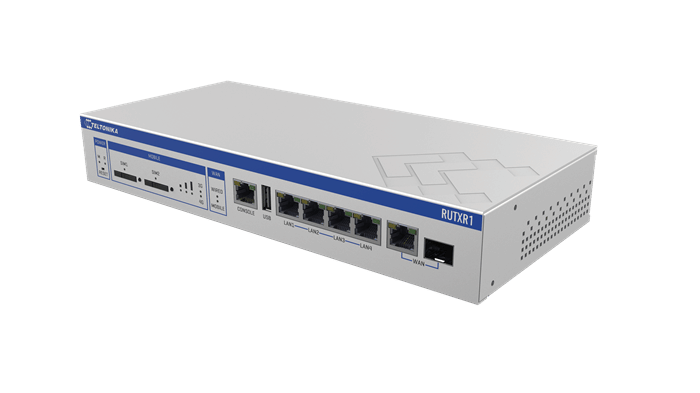

Teltonika RUTXR1 Enterprise Rack Mount SFP/LTE Router

Design
Device type Type or category of the device.	Cellular network router
Product colour The colour e.g. red, blue, green, black, white.	Grey
Housing material What the casing of the product is made of.	Steel
Reset button
LED indicators

Ethernet LAN features
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
IP routing
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.

Wireless LAN features
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported	867 Mbit/s

Mobile network
Data network Telecommunications network that allows computers to exchange data.	3G, 4G, HSUPA, LTE, WCDMA
3G standards	DC-HSDPA, HSUPA, WCDMA
4G standard	LTE
Number of SIM cards	2
SIM card type	MiniSIM
Short Message Service (SMS)

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB port type	USB Type-A
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1

Serial interface
Serial interface type	RS-232

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	AES-CCMP, HTTPS, SSH, SSL/TLS, TLS, WEP, WPA2-EAP, WPA2-Enterprise, WPA2-PSK
Network address translation (NAT)
Firewall
URL filtering
DMZ support
Port forwarding
VPN support	DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

Performance
Built-in processor Whether or not a processor is built into the device.
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	0.717 GHz
RAM capacity	0.256 GB
RAM type The type of RAM (random access memory) inside the device e.g. DDR3.	DDR3
Internal storage capacity The amount e.g of data which can be stored inside the device.	0.256 GB

Management features
Web-based management Using a website/web application to manage something.

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	External
Detachable antenna(s)

Power
Power source type What the power source is.	DC
Output voltage	9 - 50 V

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	272 mm
Height The measurement of the product from head to foot or from base to top.	43.7 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.05 kg

Logistics data
Harmonized System (HS) code	85176990
