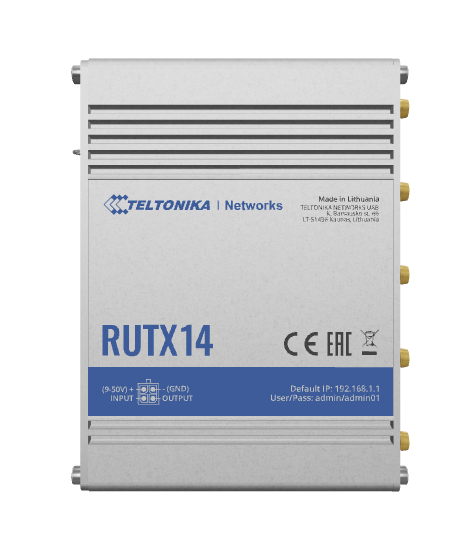

Teltonika RUTX14 CAT-12 4G LTE Industrial Cellular Router

Item No:
671986
MPN:
RUTX14
$1,202.00

Teltonika RUTX14 CAT-12 4G LTE Industrial Cellular Router

$1,202.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 5-10 business days
Store Availability
  • 6-11 business days at Bankstown Store
  • 6-11 business days at Castle Hill Store
  • 5-10 business days at Northmead Store
Shipping Estimate
Product Related Products Related Summary Summary Details Details Specifications Specs Reviews Reviews

The Teltonika RUTX14 CAT-12 4G LTE Industrial Cellular Router

The Teltonika RUTX14 CAT-12 4G LTE Industrial Cellular Router has a combination of fast LTE CAT12 connectivity, a wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.

FEATURES

  • Fast CAT12 connectivity
  • Five Gigabit Ethernet Ports
  • Wave-2 802.11ac Dual-Band WiFi
  • 4G LTE CAT12
  • Bluetooth LE
  • USB interfaces
  • Dual SIM

PACKAGE CONTAINS

  • Router RUTX14
  • 24 W PSU
  • 4 x LTE antennas (swivel, SMA male)
  • 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
  • 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • RMS Flyer
  • Packaging box

Downloads

Teltonika RUTX14 CAT-12 4G LTE Industrial Cellular Router Data SheetTeltonika RUTX14 CAT-12 4G LTE Industrial Cellular Router Quick Start Guide
Design
Device type Type or category of the device. Cellular network router
Product colour The colour e.g. red, blue, green, black, white. Silver
Housing material What the casing of the product is made of. Aluminium
Reset button
LED indicators Power, Status, WAN
Ethernet LAN features
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface. Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100,1000 Mbit/s
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA
Wireless LAN features
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Mobile network
Data network Telecommunications network that allows computers to exchange data. LTE
4G standard LTE
Short Message Service (SMS)
Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 5
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. 1
Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. AES-CCMP, TKIP, WEP, WPA2-Enterprise, WPA2-PSK, WPA3-SAE
Firewall
GPS Performance
Embedded GNSS
Performance
Built-in processor Whether or not a processor is built into the device.
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. 0.717 GHz
RAM capacity 0.256 GB
RAM type The type of RAM (random access memory) inside the device e.g. DDR3. DDR3
Internal storage capacity The amount e.g of data which can be stored inside the device. 0.256 GB
Web-based management Using a website/web application to manage something.
Antenna type Type of antenna, also known an aerial, e.g. external, internal. External
Antennas quantity 8
Power
Power source type What the power source is. DC
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -40 - 75 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width The measurement or extent of something from side to side. 132 mm
Depth The distance from the front to the back of something. 95 mm
Height The measurement of the product from head to foot or from base to top. 44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 515 g
More Information
SKU 671986
MPN RUTX14
Brand Teltonika
Product Condition Brand New/Unused
Wired/Wireless Wired
Stock Availability Available for Shipping
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://teltonika-networks.com/
