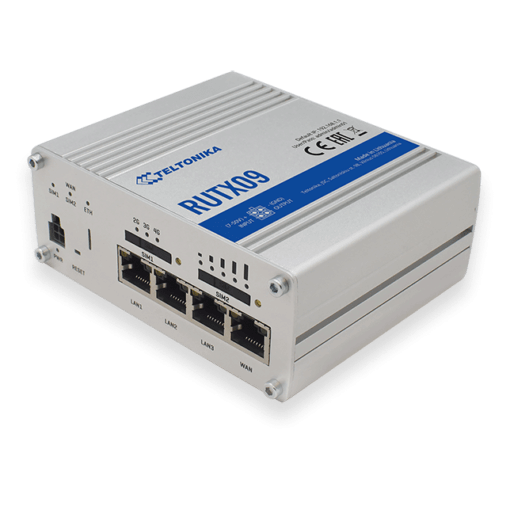

Teltonika RUTX09 3G/4G/4G700 CAT6 Router
PACKAGING CONTAINS
- Router RUTX09
- 240V Power Supply
- 2 x LTE antennas (swivel, SMA male)
- 1 x GNSS antenna
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- Packaging box
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
This powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.
FEATURES:
- LTE Cat 6 with speeds up to 300Mbps
- Gigabit Ethernet speeds up to 1000Mbps
- Dual-SIM with auto Failover. Backup WAN and other SW features
- Teltonika Remote System Management System Compatible
- Multiple secure VPN services
- Easy to use, secure and feature rich OpenWrt based Operating System
- Supports Telstra 4GX 700 MHz LTE with full Next-G fallback
- Supports Optus 4G+ 700 MHz LTE with full 3G fallback
- Supports Vodafone 4G+ 850 MHz LTE with full 3G fallback
- 3x LAN, 1x WAN 10/100 Ethernet Ports
- 2.4 GHz 802.11n WiFi 2X2 MIMO
- 9 to 36 Vdc Molex connector with 240 Vac power supply
- Can be powered by 24 Vdc Passive PoE Injector
- Dynamic DNS, DHCP Relay, Web filters
- 2x Removable Cellular Antennas, 2x WiFi antennas
- SMS Config & Ping reboot
- Dual SIM (standard size) with carrier failover.
- Telstra.Corp and Private APNs fully functional
- Now includes mounting flanges as standard
| WAN connection | |
| Ethernet WAN |
 |
| DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option. |
 |
| SIM card slot Whether the device features a SIM card slot. |
|
| 3G/4G USB modem compatibility |
|
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Mobile network | |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Short Message Service (SMS) |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Quality of Service (QoS) support |
|
| Wi-Fi Multimedia (WMM)/(WME) |
|
| Reset button |
|
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB ports quantity | 1 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Protocols | |
| Routing protocols | OSPFv2, BGP, RIP-1, RIP-2 |
| VoIP protocols | H.323, SIP-alg |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, FTP, SMTP, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SNMP, SNMPv3, SSH |
| Firewall |
|
| Blacklist |
|
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 717 MHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Flash memory | 256 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR2 |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | RutOS |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium |
| Housing material What the casing of the product is made of. | Aluminium |
| LED indicators |
|
| Antenna | |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 95 mm |
| Depth The distance from the front to the back of something. | 44 mm |
| Height The measurement of the product from head to foot or from base to top. | 115 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 456 g |
| SKU | 667863 |
| MPN | RUTX09 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
