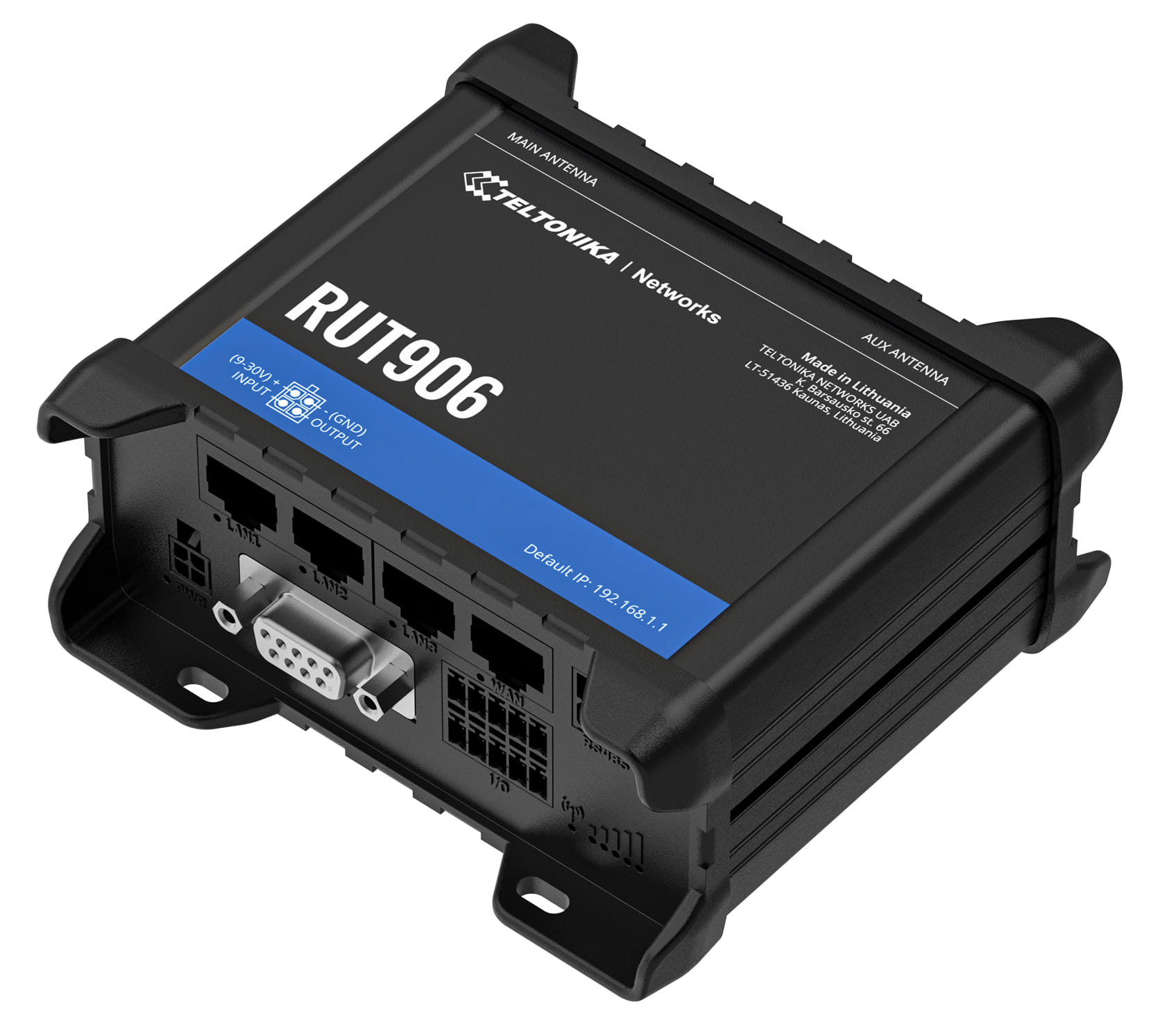

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
| Design | |
| Device type Type or category of the device. | Cellular network router |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Aluminium |
| Mounting What size the mounting head of the product is, to couple it with a camera. | DIN-rail |
| Reset button |
 |
| LED indicators | 3G, Data, Network, Power, System |
| Ethernet LAN features | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11e, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| IP routing |
|
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi frequency | 2.4 GHz |
| Mobile network | |
| Data network Telecommunications network that allows computers to exchange data. | 2G, 3G, 4G, LTE |
| 4G standard | LTE |
| Number of SIM cards | 2 |
| SIM card type | MiniSIM |
| Short Message Service (SMS) |
|
| Data transfer rate (LTE) (download) | 150 Mbit/s |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB port type | USB Type-A |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Serial interface type | RS-232, RS-485 |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES-CCMP, FTPES, TKIP, WEP, WPA-PSK, WPA2-Enterprise-PEAP, WPA3-EAP, WPA3-SAE |
| Network address translation (NAT) |
|
| Firewall |
|
| IP address filtering |
|
| URL filtering |
|
| DMZ support |
|
| Port forwarding |
|
| VPN support | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| GPS Performance | |
| GLONASS |
|
| BeiDou |
|
| Galileo |
|
| Quasi-Zenith Satellite System (QZSS) |
|
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | Mediatek |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 0.58 GHz |
| RAM capacity | 0.128 GB |
| RAM type The type of RAM (random access memory) inside the device e.g. DDR3. | DDR2 |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 0.016 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | RutOS |
| Web-based management Using a website/web application to manage something. |
|
| GPS (satellite) Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver. |
|
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA/RP-SMA |
| Antennas quantity | 5 |
| Detachable antenna(s) |
|
| Power | |
| Power source type What the power source is. | DC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 109.5 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 50 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 295 g |
| SKU | 814188 |
| MPN | RUT906000800 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
