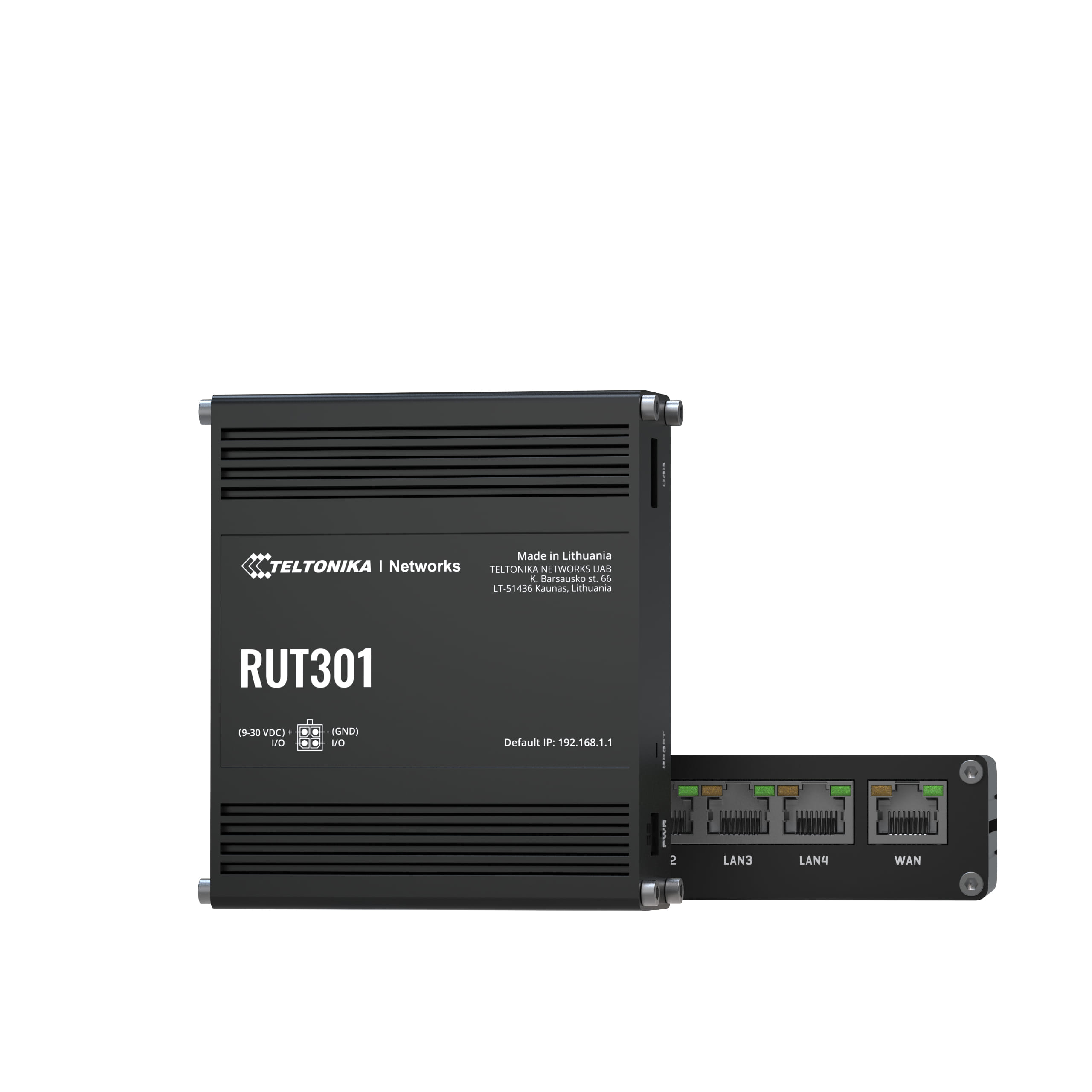

Teltonika RUT301 Industrial Ethernet Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
SFP WAN

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Static route
Port forwarding

Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
Universal Plug and Play (UPnP)
Reset button
Firmware upgradeable

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB ports quantity	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Protocols
DMZ support
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

Security
Firewall
IP address filtering
Network address translation (NAT)

Packaging content
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Features
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Mediatek
Flash memory	16 MB
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	128 MB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR2
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	RutOS
Certification	CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF, WEEE

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Aluminium
LED indicators	LAN, Power, Status, WAN

Power
Power source type What the power source is.	DC, PoE
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	100 mm
Depth The distance from the front to the back of something.	85 mm
Height The measurement of the product from head to foot or from base to top.	30 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	233 g

Packaging data
Package type The type of product package e.g. box.	Box

Other features
Management platform	RMS
Input voltage The voltage (V) which is required to power the product.	9-30 V
