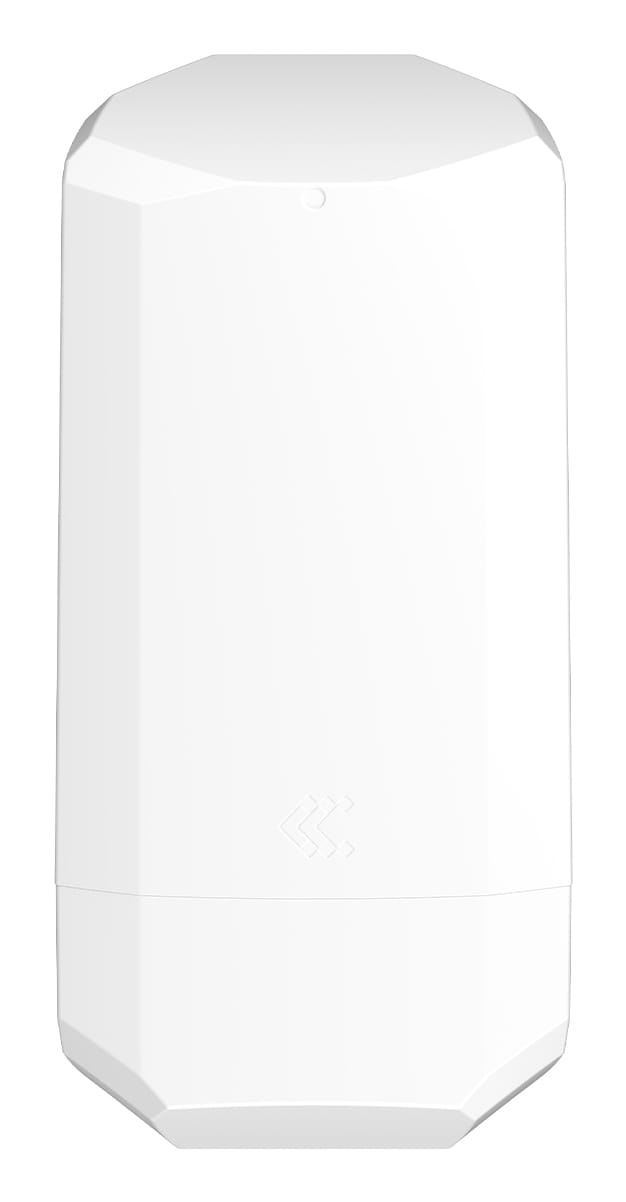

Teltonika Outdoor Wi-Fi Router Cat4 With Dual SIM Auto

Design
Device type Type or category of the device.	Cellular network router
Product colour The colour e.g. red, blue, green, black, white.	White
Housing material What the casing of the product is made of.	Acrylonitrile styrene acrylate (ASA), Polycarbonate (PC)
Suitable for outdoor use Product can be used outdoors.
Reset button
LED indicators	Network, Signal strength

Ethernet LAN features
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11e, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Dynamic DNS (DDNS)
Network bridge
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP(S), SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

Wireless LAN features
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Mobile network
Data network Telecommunications network that allows computers to exchange data.	2G, 3G, 4G, LTE
Number of SIM cards	2
SIM card type	MiniSIM
4G LTE category	4
Short Message Service (SMS)

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	128-bit AES, 192-bit AES, 256-bit AES, AES-CCMP, DES, EAP-TLS, HTTPS, OWE, PEAP, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSID, SSL/TLS, TKIP, WPA2-EAP, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE
Network address translation (NAT)
Firewall
DMZ support
Port forwarding

Certificates
Compliance certificates	CB, CE, EAC, RCM, UKCA, WEEE

Packaging content
Packaging content	Router Holder QSG (Quick Start Guide)

Performance
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Mediatek
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	0.58 GHz
RAM capacity	64 GB
RAM type The type of RAM (random access memory) inside the device e.g. DDR3.	DDR2
Internal storage capacity The amount e.g of data which can be stored inside the device.	0.016 GB
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	RutOS
Web-based management Using a website/web application to manage something.
Management protocols	WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	Internal
Antennas quantity	4

Power
Power source type What the power source is.	PoE
Input voltage The voltage (V) which is required to power the product.	42.5 - 57 V

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	110 mm
Depth The distance from the front to the back of something.	235 mm
Height The measurement of the product from head to foot or from base to top.	49.3 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	315 g

Packaging data
Package width The distance from one side of the packaging to the other.	110 mm
Package depth The distance from the front to the back of the packaging.	235 mm
Package height The distance from the top to the bottom of the packaging.	51 mm
