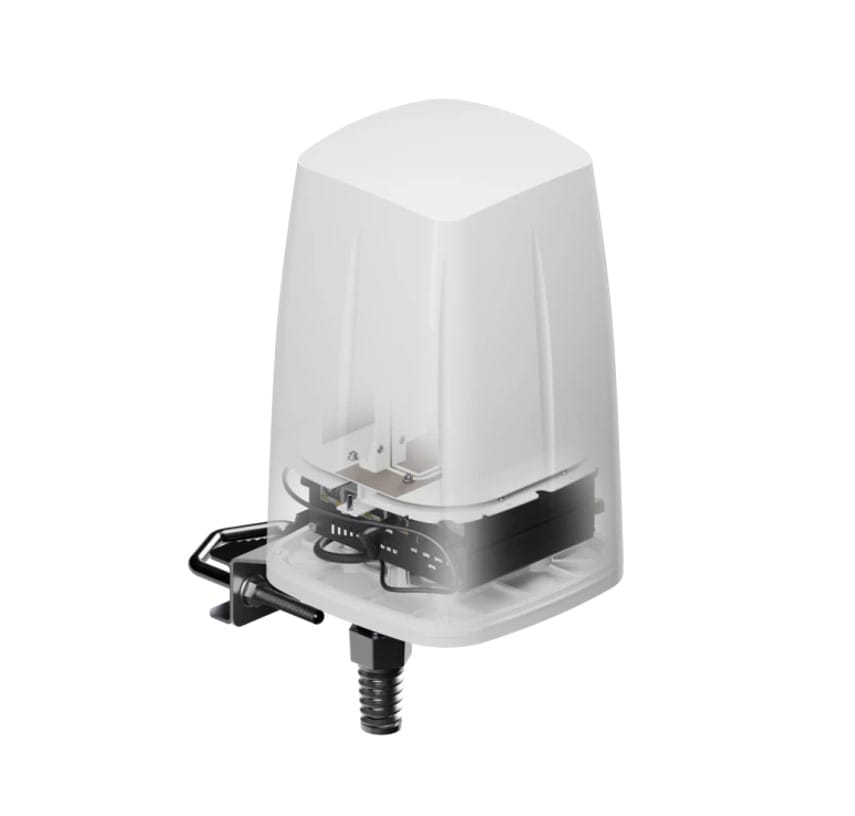

Teltonika Outdoor LTE/Wi-Fi/GPS/Bluetooth antenna for RUTX11 and RUTM11 routers
Compatible products:
RUTM11
RUTX11
width='100%' height='auto'>
width='100%' height='auto'>
width='100%' height='auto'>
width='100%' height='auto'>
width='100%' height='auto'>
width='100%' height='auto'>
width='100%' height='auto'>
width='100%' height='auto'>
RUTM11
RUTX11
width='100%' height='auto'>width='100%' height='auto'>width='100%' height='auto'>width='100%' height='auto'>width='100%' height='auto'>width='100%' height='auto'>width='100%' height='auto'>width='100%' height='auto'>| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 0.617 - 4.3 GHz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Bandwidth note | 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 28 dBi |
| Wi-fi frequency range | 2.4 - 6 GHz |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Omni-directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male |
| Polarization | RHCP polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.50 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Ceiling/wall |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 2.5 - 6.5 V |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 189 mm |
| Height The measurement of the product from head to foot or from base to top. | 347 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.5 kg |
| SKU | 807125 |
| MPN | PR1IC970 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
