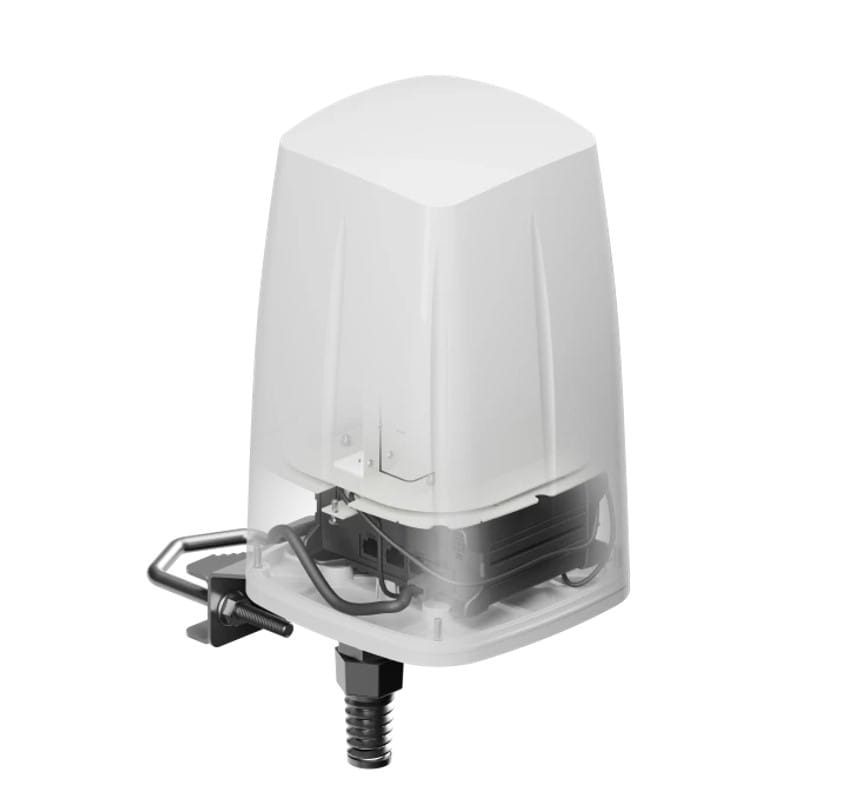

The Teltonika Outdoor LTE/WI-FI/GPS Antenna for RUT9-Series Routers has an omnidirectional design that ensures consistent signal reception from every direction, making it an ideal choice for outdoor installations.
Key Features:
- Omnidirectional radiation pattern
- IP67-rated for water and dust resistance
- LTE, Wi-Fi, and GPS support
- Wide frequency range:
- LTE: 617 ~ 960, 1700 ~ 4300 MHz
- Wi-Fi: 2400 ~ 2500, 4700 ~ 6000 MHz
- GPS: 1560 ~ 1610 MHz
- Up to 7.5 dBi gain for Wi-Fi and 28 dBi for GPS
- Integrated mounting bracket for easy installation on poles, walls, or ceilings.
- 2x SMA male connectors for LTE
- 2x RP-SMA male connectors for Wi-Fi
- 1x SMA male connector for GPS
- RoHS compliant
Superior LTE and Wi-Fi Performance
Supporting LTE frequencies from 617 to 4300 MHz and Wi-Fi frequencies from 2400 to 6000 MHz, this antenna offers exceptional range and performance. With a maximum LTE gain of 4.5 dBi and Wi-Fi gain of 7.5 dBi, it delivers strong, reliable connectivity across all supported frequencies, ensuring uninterrupted network access.
Integrated GPS Functionality
This antenna includes an integrated GNSS (GPS) feature with a frequency range of 1560 to 1610 MHz and a maximum gain of 28 dBi. Its right-hand circular polarisation (RHCP) ensures precise location tracking, making it an excellent choice for applications requiring accurate GPS functionality. The antenna operates at a low power consumption range of 2.5 to 6.5 mA, making it energy-efficient for extended use.
Built for Harsh Outdoor Environments
With its IP67-rated water and dust-resistant construction, this antenna is designed to endure the toughest outdoor conditions. It operates reliably across a wide temperature range from -40 °C to 75 °C, making it suitable for both hot and cold climates.
Quick and Versatile Installation
The integrated mounting bracket allows for fast and easy installation on walls, ceilings, or masts. Whether you need to deploy it in a remote location or an industrial setting, the flexible mounting options make setup simple and efficient.
High-Quality Connectors for Enhanced Reliability
Equipped with 2x SMA male connectors for LTE, 2x RP-SMA male connectors for Wi-Fi, and 1x SMA male connector for GPS, the antenna ensures secure and stable connections across all functions. The cables, including 4x RG316 and 1x RG174, further ensure reliable signal transmission.
Environmentally Compliant and Lightweight Design
Weighing only 1.5 kg, the Teltonika Outdoor LTE/Wi-Fi/GPS Antenna is RoHS compliant, reflecting its commitment to environmental and safety standards. Its lightweight design makes it easy to install, while maintaining the durability required for long-lasting performance in outdoor settings.A

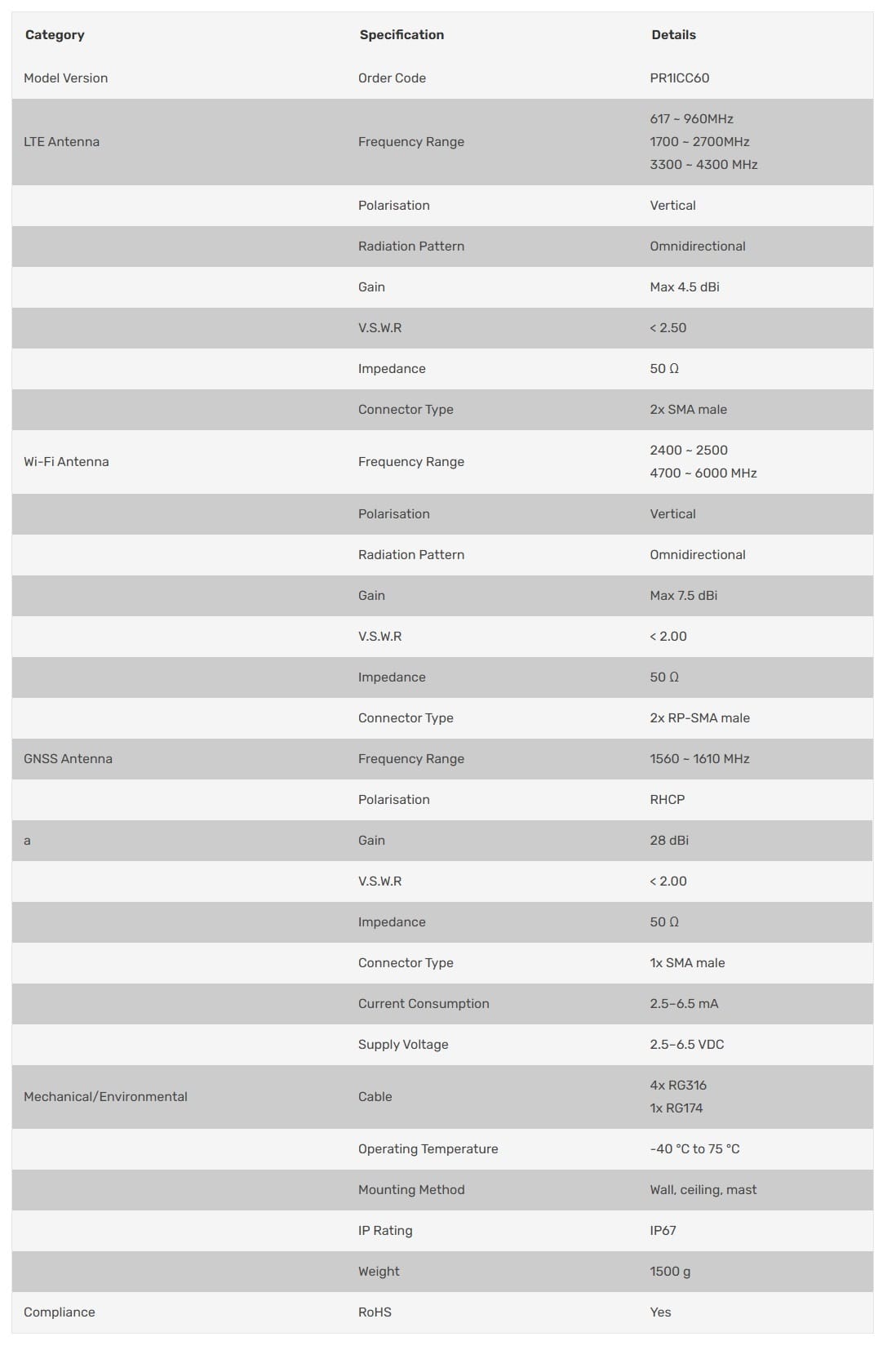

| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 0.617 - 4.2 GHz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Bandwidth note | 617 ~ 960, 1700 ~ 2200, 2300 ~ 2700, 3300 ~ 3800 MHz |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 28 dBi |
| Wi-fi frequency range | 2.4 - 6 GHz |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Omni-directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.50 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Ceiling/wall |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 189 mm |
| Height The measurement of the product from head to foot or from base to top. | 347 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.5 kg |
| SKU | 807159 |
| MPN | PR1ICC60 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
