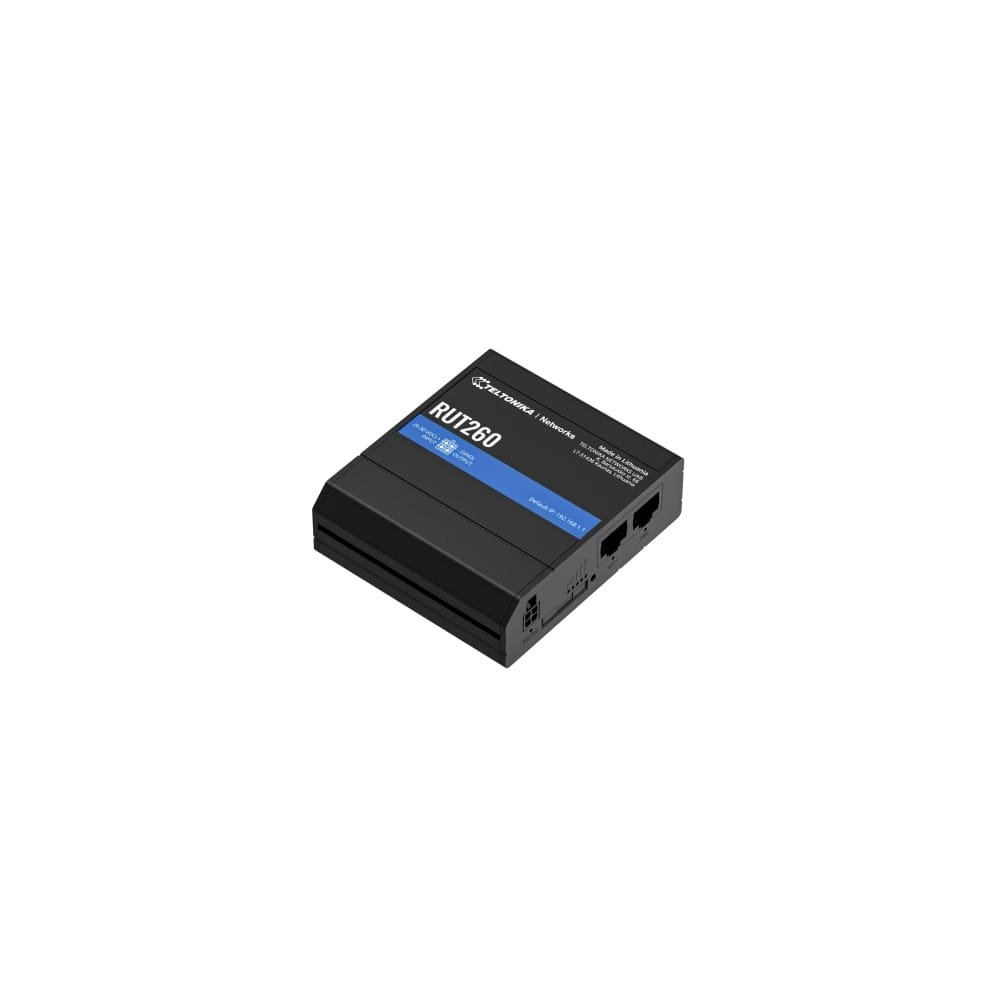

Teltonika RUT260, Cellular network router, Black, Blue, Aluminium, Plastic, DIN-rail/Wall mounting, Industrial, LAN, Network, Power, Signal strength, WAN
RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.
| Design | |
| Device type Type or category of the device. | Cellular network router |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Blue |
| Housing material What the casing of the product is made of. | Aluminium, Plastic |
| Mounting What size the mounting head of the product is, to couple it with a camera. | DIN-rail/Wall mounting |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Industrial |
| Suitable for indoor use |
 |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| LED indicators | LAN, Network, Power, Signal strength, WAN |
| Ethernet LAN features | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Mobile network | |
| Data network Telecommunications network that allows computers to exchange data. | 3G, LTE |
| Number of SIM cards | 1 |
| SIM card type | MiniSIM |
| Short Message Service (SMS) |
|
| Data transfer rate (LTE) (download) | 300 Mbit/s |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES-CCMP, TKIP, WEP, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE |
| Network address translation (NAT) |
|
| Firewall |
|
| IP address filtering |
|
| DMZ support |
|
| GPS Performance | |
| Assisted GPS (A-GPS) Assisted GPS, generally abbreviated as A-GPS, enhances the startup performance of a GPS satellite-based positioning system. It is used extensively with GPS-capable cellular phones as its development was accelerated by the U.S. FCC's 911 mandate making the location of a cell phone available to emergency call dispatchers. |
|
| Embedded GNSS |
|
| GLONASS |
|
| BeiDou |
|
| Galileo |
|
| Quasi-Zenith Satellite System (QZSS) |
|
| Electronic compass Electronic instrument used for navigation that shows directions in a frame of reference (north, south, east, west) that is stationary relative to the surface of the earth. |
|
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | Mediatek |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 0.58 GHz |
| RAM capacity | 0.128 GB |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 0.016 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | RutOS |
| Web-based management Using a website/web application to manage something. |
|
| GPS (satellite) Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver. |
|
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA/RP-SMA |
| Antennas quantity | 3 |
| Detachable antenna(s) |
|
| Power | |
| Power source type What the power source is. | DC |
| Built-in battery |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 83 mm |
| Depth The distance from the front to the back of something. | 74 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 130 g |
| SKU | 836965 |
| MPN | RUT260 |
| Brand | Teltonika |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://teltonika-networks.com/ |
