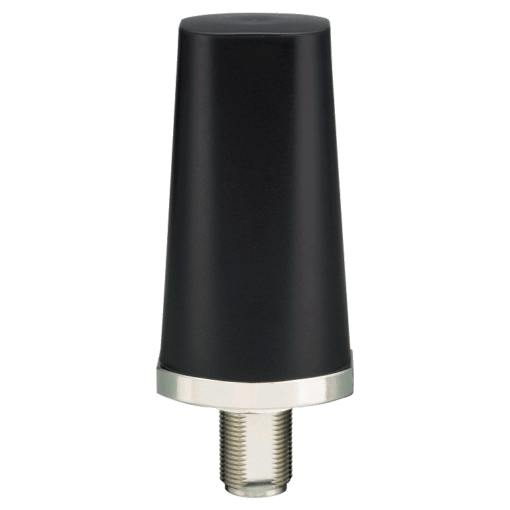

A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna.
The TLS.01 antenna is IP67 waterproof and IP69K resistant against high pressure water jets in commercial cleaning environments, which makes the antenna ideal for 5G / 4G / Cat-M / NB-IoT applications either in indoor or in harsh outdoor environments.
This is an extremely efficient antenna on B28 (700 MHz), sporting 95.2% radiated efficiency.
This antenna covers all 4G and 5G bands excluding LTE450, n79 4.5 GHz, 5G FR2 mmWave. All data are recorded on a 300 x 300 mm metal ground plane.
