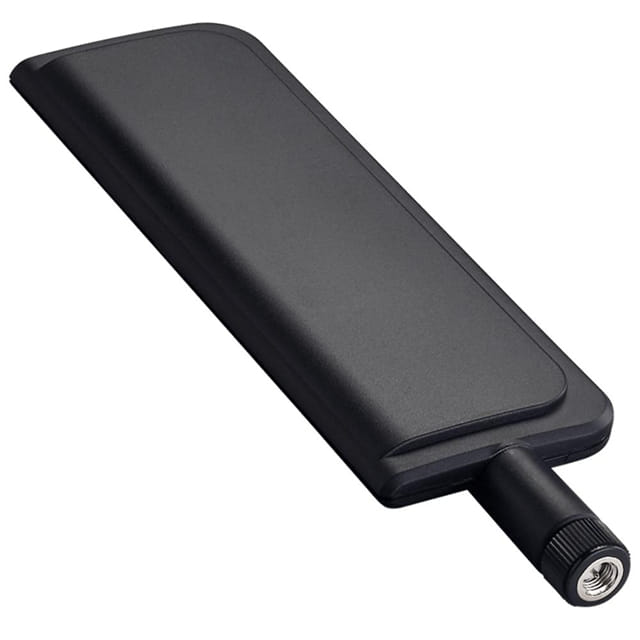

Taoglas TG.30.8111, 3 dBi, 0.6 6 GHz, 50 , SMA, Pole, Black
Apex Wideband 5G/4G LTE Antenna for Cellular modules with Assisted GPS
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 0.6 - 6 GHz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 3 dBi |
| Features | |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Pole |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 49 mm |
| Depth The distance from the front to the back of something. | 10 mm |
| Height The measurement of the product from head to foot or from base to top. | 171 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 45.5 g |
| SKU | 712223 |
| MPN | TG.30.8111 |
| Brand | Taoglas |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.taoglas.com/ |
