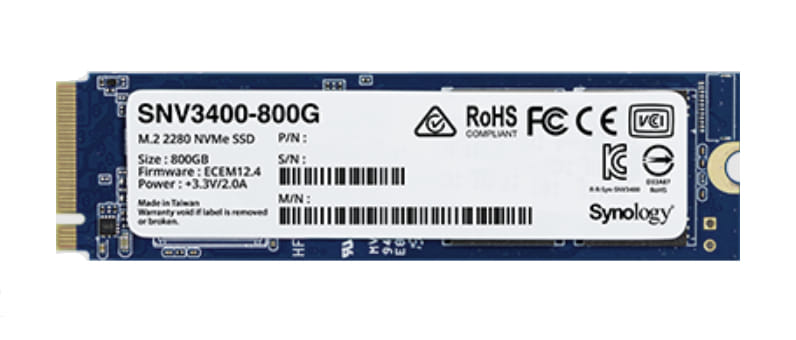

800 GB, M.2 2280, NVMe PCIe 3.0 x4, 3,100 MB/s, 1,000 MB/s, 375,000 IOPS
Durable SSD for demanding caching workloads
Synology SNV3000 series NVMe SSD is designed to handle tough caching workloads in a 24/7 multi-user environment. Its durable I/O performance boosts system responsiveness and speeds up handling of frequent access data, providing a streamlined storage experience while minimizing service disruptions to your Synology NAS.
Consistently fast caching for 24/7 environments
Built for system cache, Synology SNV3000 series pushes up random I/O performance and reduces latency in demanding 24/7 environments. It offers durable caching with over 375,000/70,000 4K random read/write IOPS1 and a 988 TBW endurance rating2, suitable for multimedia post-production and database applications.
Data integrity safeguards
Synology SNV3000 series integrates end-to-end data protection to safeguard data integrity over the entire transfer path. The SNV3500 comes with power loss protection circuit design3, further preventing data corruption during an abnormal shutdown: Dedicated capacitors provide power to flush data-in-flight into NAND flash in a power loss event and firmware is designed to enable a correct restart on the next power-up.
Lifetime analytics based on actual workload
Full integration with Synology's DiskStation Manager (DSM) enables lifetime analytics for each SNV3000 series unit based on actual workloads4:
Timely Notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Optimal Use
Easy monitoring allows you to make optimal use of each SSD.
Purpose-built for Synology NAS
Synology SNV3000 series is thoroughly tested for compatibility with our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.
Synology SNV3000 series NVMe SSD is designed to handle tough caching workloads in a 24/7 multi-user environment. Its durable I/O performance boosts system responsiveness and speeds up handling of frequent access data, providing a streamlined storage experience while minimizing service disruptions to your Synology NAS.
Consistently fast caching for 24/7 environments
Built for system cache, Synology SNV3000 series pushes up random I/O performance and reduces latency in demanding 24/7 environments. It offers durable caching with over 375,000/70,000 4K random read/write IOPS1 and a 988 TBW endurance rating2, suitable for multimedia post-production and database applications.
Data integrity safeguards
Synology SNV3000 series integrates end-to-end data protection to safeguard data integrity over the entire transfer path. The SNV3500 comes with power loss protection circuit design3, further preventing data corruption during an abnormal shutdown: Dedicated capacitors provide power to flush data-in-flight into NAND flash in a power loss event and firmware is designed to enable a correct restart on the next power-up.
Lifetime analytics based on actual workload
Full integration with Synology's DiskStation Manager (DSM) enables lifetime analytics for each SNV3000 series unit based on actual workloads4:
Timely Notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Optimal Use
Easy monitoring allows you to make optimal use of each SSD.
Purpose-built for Synology NAS
Synology SNV3000 series is thoroughly tested for compatibility with our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.
| Features | |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 800 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Read speed The speed at which a device can read data. | 3100 MB/s |
| Write speed The speed at which a device can write data. | 1000 MB/s |
| Random read (4KB) | 375000 IOPS |
| Random write (4KB) | 70000 IOPS |
| PCI Express interface data lanes | x4 |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^17 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1800000 h |
| Backlight Product has a built-in light source for its illuminating. |
 |
| Certification | FCC CE EAC BSMI VCCI RCM KC RoHS |
| Power | |
| Operating voltage Defines the range of operating voltages available | 3.3 V |
| Power consumption (read) | 4.5 W |
| Power consumption (write) | 4.5 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 3.5 mm |
| SKU | 513314 |
| MPN | SNV3400-800G |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 3 NVMe M.2 |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
