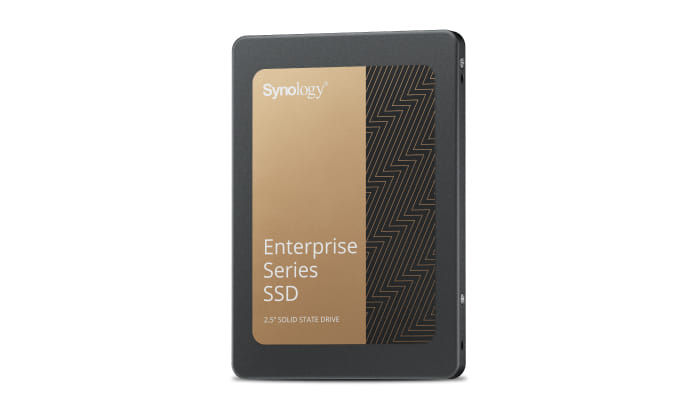

Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.
Stable high performance for demanding environments
Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.
Enterprise-grade endurance and reliability
11,460 TBW
Built to withstand 24/7 intensive workloads with endurance up to 11,460 TBW.
End-to-end data protection
Data integrity and consistency are safeguarded over the entire data transfer path.
Power loss protection circuit design
Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.
Better analytics
Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.
Timely notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Optimal use
Easy monitoring allows you to make optimal use of each SSD.
One-click firmware upgrades
Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.
Purpose-built for Synology systems
Synology SAT5200 Series SSDs are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.
Stable high performance for demanding environments
Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.
Enterprise-grade endurance and reliability
11,460 TBW
Built to withstand 24/7 intensive workloads with endurance up to 11,460 TBW.
End-to-end data protection
Data integrity and consistency are safeguarded over the entire data transfer path.
Power loss protection circuit design
Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.
Better analytics
Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.
Timely notifications
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Optimal use
Easy monitoring allows you to make optimal use of each SSD.
One-click firmware upgrades
Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.
Purpose-built for Synology systems
Synology SAT5200 Series SSDs are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.
| Features | |
| SSD capacity The Solid State Drive's data storage capacity. | 1.92 TB |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | NAS |
| Hardware encryption |
|
| Random read (4KB) | 90000 IOPS |
| Random write (4KB) | 30000 IOPS |
| Sequential read speed (ATTO) | 500 MB/s |
| Sequential write speed (ATTO) | 500 MB/s |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| Certification | EAC BSMI VCCI RCM KC |
| Power | |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Power consumption (read) | 4.5 W |
| Power consumption (write) | 5 W |
| Power consumption (idle) | 1.2 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 69.8 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 7 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Other features | |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| SKU | 812322 |
| MPN | SAT5221-1920G |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 2.5" |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
