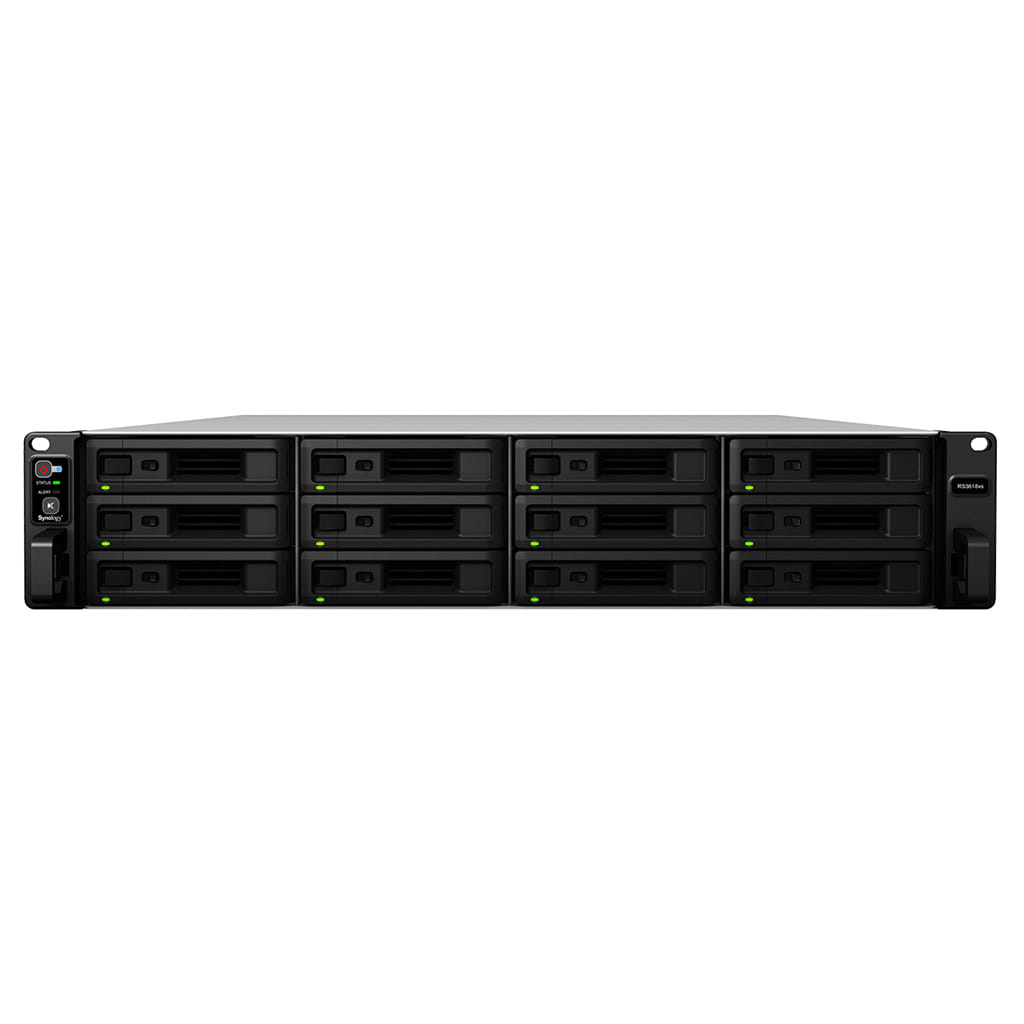

Synology RackStation RS3618xs 12-Bay Xeon D-1521 Quad-Core Scalable NAS

Storage
Maximum supported storage capacity The maximum capacity of data storage on the device.	144 TB
Supported storage drive interfaces	Serial ATA,Serial ATA II,Serial ATA III
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5,3.5"
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0,1,5,6,10,F1,JBOD
Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems	BTRFS,FAT,HFS+,NTFS,ext3,ext4
Storage drives installed Storage drives are built into the system.
Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types The type of storage drives the device is compatible with.	HDD,SSD
Number of storage drives supported How many storage drives can be fit into the product at once.	12

Processor
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Xeon® D
Processor model The model number for the processor in a computer.	D-1521
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2.40 GHz
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	2.70 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Processor threads	8
Processor cache	6 MB
CPU configuration (max)	1
ECC supported by processor
PCI Express configurations	1x16,1x4,1x8
PCI Express slots version	2.0,3.0
Processor code	SR2DF
Processor codename	Broadwell
Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit).	14 nm
Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software.	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon D-1500
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.	BGA 1667
Scalability	1S
Stepping	V2
Thermal Design Power (TDP)	45 W
Maximum internal memory supported by processor	128 GB
Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.

Memory
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	2133 MHz
Maximum RAM supported	64 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	4
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
iSCSI support
Wake-on-LAN ready
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
Link aggregation

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
PCI Express x8 (Gen 3.x) slots Slots in the computer for PCI Express x8 (Gen 3.x), which is a high-speed serial computer expansion bus standard with 8 pins.	2

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Rack (2U)
Cooling type The method used to cool the device or to cool the air around the device.	Active
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	4 fan(s)
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.	8 cm
LED indicators	HDD,Power

Performance
Type Characteristics of the device.	NAS
Device class The category to which this device belongs.	Small & Medium Business
Backup function The function if the main power source fails.
Backup features	Cloud,iSCSI LUN
Multilingual support
Number of users The number of people that use or can use this product.	16000 user(s)
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	50.2 dB
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS,SSH,SSL/TLS
Access Control List (ACL)
Web-based management Using a website/web application to manage something.
Reset button
On/off switch The button which is pressed to switch the device on or off.
Browser supported List of supported browsers for this product.	Chrome, Firefox, Internet Explorer 10, Safari
System log
Hot spare
S.M.A.R.T. support
Share folder	CIFS/AFP/FTP

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	DiskStation Manager
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10,Windows 7
Mac compatibility Product can be used with Apple Mac software and/or hardware.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra
Server operating systems supported	Windows Server 2012,Windows Server 2012 R2

Power
Power supply location Where the power supply is positioned.	Built-in
Power supply unit (PSU) capacity	500 W
Number of power supply units	1
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	142.76 W
Power consumption (HDD standby)	55.05 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz

Weight & dimensions
Width The measurement or extent of something from side to side.	430.5 mm
Depth The distance from the front to the back of something.	692 mm
Height The measurement of the product from head to foot or from base to top.	88 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	14.5 kg

Packaging content
Cables included	AC
Quick installation guide

Processor special features
Embedded options available
Enhanced Intel SpeedStep Technology
Execute Disable Bit
Idle States
Intel 64
Intel Enhanced Halt State
Intel Trusted Execution Technology
Intel TSX-NI
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)
Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth.
Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel.
Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security.
Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.	2.0
Maximum number of PCI Express lanes	32
Thermal Monitoring Technologies
UART
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM,DDR4-SDRAM

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating altitude	0 - 5000 m

Certificates
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance.
Certification	EAC, VCCI, CCC, RCM, FCC, CE, BSMI

Other features
Processor ARK ID	91202
