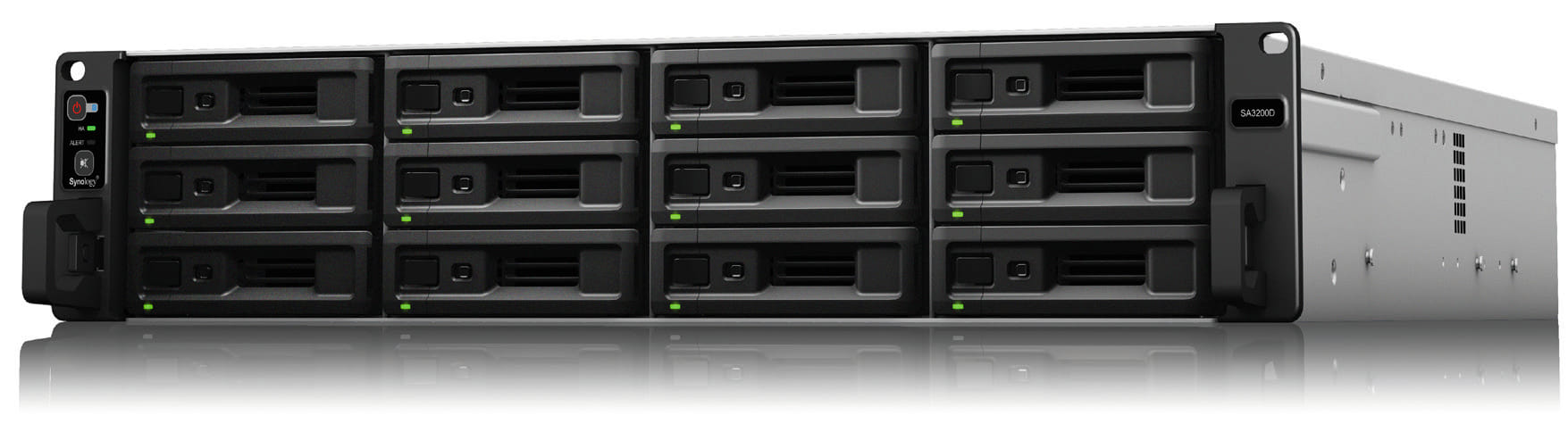

Synology RackStation SA3200D 12-Bay Xeon D-1521 Quad-Core Rackmount NAS
Item No:
439991
MPN:
SA3200D
$14,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Synology RackStation SA3200D, NAS, Rack (2U), Intel xeon D, D-1521, Black, Grey
Maximize Service Availability, Minimize Downtime
Synology SA3200D features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power
supplies, and fans to prevent a single point of failure. Powered by the intuitive and feature-rich
operating system DiskStation Manager (DSM), SA3200D provides comprehensive protection for network, file services, and applications.
Designed with High Availability and Scalability
Synology SA3200D is a cost-effective yet highly available data management solution for enterprises, with a competitive priceperformance ratio of $0.05 per gigabyte. Underneath the 2U chassis are dual controller modules in an active-passive architecture, each connected to the other by the reliable, high-speed Non-Transparent Bridge (NTB) with low latency. Service continuity is also backed up by the hardware redundancy mechanism of modularized power supplies and fans to prevent a single point of failure.
With SA3200D, you can start small and grow in the future. It supports up to 12 x 3.5"/2.5" SAS interface drive slots by default, and the capacity can be further scaled up to 576 TB using two RxD1219sas4 expansion units, with minimal performance impact3. Data replication is not needed for the shared storage design, saving valuable rack space and network bandwidth when compared with two devices using Synology High Availability.
Real-Time Protection with Automatic Failover
With an active-passive design consisting of dual controller modules and the built-in Synology High Availability (SHA) service, SA3200D is built to provide a real-time, system-level protection to maximize service availability. It actively monitors network status and critical file services of CIFS, iSCSI, AFP, FTP, NFS, and Synology Directory Server. Once a controller module or the service is unavailable, the system will fail over automatically within a minute1 to minimize system interruption and ensure service continuity.
Easy to Deploy, Easy to Manage
SA3200D is designed to help IT administrators easily deploy and manage a highly available data management infrastructure. The system features straightforward, wizard-based GUI setup processes that allow you to build up a highly available service environment within minutes. Service status monitoring is made easy and intuitive.
Powered by DiskStation Manager (DSM), an intuitive, user-friendly webbased operating system across Synology hardware platforms, SA3200D provides IT administrators a unified user experience without the need to adapt to different user interfaces and complex configuration settings. With a full suite of software applications supported in the Package Center, you can download and install a variety of packages including backup, data protection, and virtualization.
Built for Your SAN Storage Needs
Synology SA3200D provides a fully certified virtualization solution with VMware vSphere , Microsoft Hyper-V , Citrix xenServer , and OpenStack Cinder. It supports both iSCSI and NFS protocols and integrates with VMware VAAI and Microsoft ODx, allowing IT
administrators to effectively deploy and facilitate storage operations in various virtualization environments. IT administrators can efficiently manage virtualized workloads through built-in DSM features and addon plugins for VMware and Windows environments. Features including
fast clone, NFS v4.1, and thin provisioning delivers more flexibility to accommodate to administration needs.
With no additional license fees required, your virtualized workload can be further protected by a complete suite of data protection applications including Synology Snapshot Replication, Hyper Backup, and Active Backup for Business to cover various protection scenarios.
Virtualize Workloads Flexibly in a Protected Environment
Synology Virtual Machine Manager (VMM) is an intuitive hypervisor software application allowing you to easily set up virtual machines and run various operating systems, including Windows, Linux, and Virtual DSM. By integrating the computing and the storage nodes into
one system, single vendor support experience is achieved to lower the management cost.
With VMM, each virtual machine can be fully protected by a set of disaster recovery features including instant snapshot, replication, clone, and restore, safeguarding your virtual machines without additional cost.
Synology SA3200D features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power
supplies, and fans to prevent a single point of failure. Powered by the intuitive and feature-rich
operating system DiskStation Manager (DSM), SA3200D provides comprehensive protection for network, file services, and applications.
Designed with High Availability and Scalability
Synology SA3200D is a cost-effective yet highly available data management solution for enterprises, with a competitive priceperformance ratio of $0.05 per gigabyte. Underneath the 2U chassis are dual controller modules in an active-passive architecture, each connected to the other by the reliable, high-speed Non-Transparent Bridge (NTB) with low latency. Service continuity is also backed up by the hardware redundancy mechanism of modularized power supplies and fans to prevent a single point of failure.
With SA3200D, you can start small and grow in the future. It supports up to 12 x 3.5"/2.5" SAS interface drive slots by default, and the capacity can be further scaled up to 576 TB using two RxD1219sas4 expansion units, with minimal performance impact3. Data replication is not needed for the shared storage design, saving valuable rack space and network bandwidth when compared with two devices using Synology High Availability.
Real-Time Protection with Automatic Failover
With an active-passive design consisting of dual controller modules and the built-in Synology High Availability (SHA) service, SA3200D is built to provide a real-time, system-level protection to maximize service availability. It actively monitors network status and critical file services of CIFS, iSCSI, AFP, FTP, NFS, and Synology Directory Server. Once a controller module or the service is unavailable, the system will fail over automatically within a minute1 to minimize system interruption and ensure service continuity.
Easy to Deploy, Easy to Manage
SA3200D is designed to help IT administrators easily deploy and manage a highly available data management infrastructure. The system features straightforward, wizard-based GUI setup processes that allow you to build up a highly available service environment within minutes. Service status monitoring is made easy and intuitive.
Powered by DiskStation Manager (DSM), an intuitive, user-friendly webbased operating system across Synology hardware platforms, SA3200D provides IT administrators a unified user experience without the need to adapt to different user interfaces and complex configuration settings. With a full suite of software applications supported in the Package Center, you can download and install a variety of packages including backup, data protection, and virtualization.
Built for Your SAN Storage Needs
Synology SA3200D provides a fully certified virtualization solution with VMware vSphere , Microsoft Hyper-V , Citrix xenServer , and OpenStack Cinder. It supports both iSCSI and NFS protocols and integrates with VMware VAAI and Microsoft ODx, allowing IT
administrators to effectively deploy and facilitate storage operations in various virtualization environments. IT administrators can efficiently manage virtualized workloads through built-in DSM features and addon plugins for VMware and Windows environments. Features including
fast clone, NFS v4.1, and thin provisioning delivers more flexibility to accommodate to administration needs.
With no additional license fees required, your virtualized workload can be further protected by a complete suite of data protection applications including Synology Snapshot Replication, Hyper Backup, and Active Backup for Business to cover various protection scenarios.
Virtualize Workloads Flexibly in a Protected Environment
Synology Virtual Machine Manager (VMM) is an intuitive hypervisor software application allowing you to easily set up virtual machines and run various operating systems, including Windows, Linux, and Virtual DSM. By integrating the computing and the storage nodes into
one system, single vendor support experience is achieved to lower the management cost.
With VMM, each virtual machine can be fully protected by a set of disaster recovery features including instant snapshot, replication, clone, and restore, safeguarding your virtual machines without additional cost.
| Storage | |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,JBOD |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | BTRFS,FAT,HFS+,NTFS,exFAT,ext3,ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 12 |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® D |
| Processor model The model number for the processor in a computer. | D-1521 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.4 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 2.7 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1x16,1x4,1x8 |
| PCI Express slots version | 2.0,3.0 |
| Processor code | SR2DF |
| Processor codename | Broadwell |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | BGA 1667 |
| Scalability | 1S |
| Stepping | V2 |
| Thermal Design Power (TDP) | 45 W |
| Maximum internal memory supported by processor | 128 GB |
| Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries. |
|
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 64 GB |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | UDIMM |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| iSCSI support |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| Fan diameter 2 | 6 cm |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, iSCSI LUN |
| Multilingual support |
|
| Number of users The number of people that use or can use this product. | 16000 user(s) |
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES |
| Access Control List (ACL) |
|
| Web-based management Using a website/web application to manage something. |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Chrome, Firefox, Edge, Internet Explorer, Safari, Chrome |
| Password authentication |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | DiskStation Manager |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430.5 mm |
| Depth The distance from the front to the back of something. | 692 mm |
| Height The measurement of the product from head to foot or from base to top. | 88 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 19.7 kg |
| Packaging content | |
| Cables included | AC |
| Quick installation guide |
|
| Processor special features | |
| Embedded options available |
|
| Enhanced Intel SpeedStep Technology |
|
| Execute Disable Bit |
|
| Idle States |
|
| Intel 64 |
|
| Intel Enhanced Halt State |
|
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology |
|
| Intel TSX-NI |
|
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel. |
|
| Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. | 2.0 |
| Maximum number of PCI Express lanes | 32 |
| Thermal Monitoring Technologies |
|
| UART |
|
| Memory types supported by processor | DDR3-SDRAM,DDR4-SDRAM |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating altitude | 0 - 5000 m |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Other features | |
| Processor ARK ID | 91202 |
| SKU | 439991 |
| MPN | SA3200D |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
