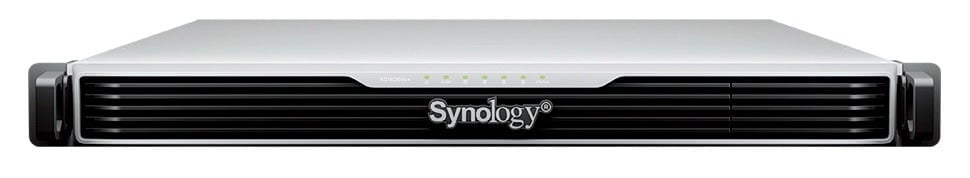

Synology RackStation 4-Bay Scalable Rackmount NAS

Storage
Storage drive capacity The amount of data that can be stored on the storage drive.	0 GB
Storage drive interface Where the storage device links with other parts of the product, or an external device.	M.2, Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5,3.5,M.2
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Number of M.2 (M & B) slots	2
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	F1, JBOD, 0, 1, 5, 6, 10
Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems	ext4, BTRFS, ext3, FAT32, NTFS, HFS+, exFAT
Storage drives installed Storage drives are built into the system.
Total installed storage capacity	0 TB
Number of storage drives supported How many storage drives can be fit into the product at once.	4
Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Maximum number of drives (with expansion)	16

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Xeon® D
Processor model The model number for the processor in a computer.	D-1726
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2.9 GHz
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	3.5 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	6
Processor threads	12
Processor cache	10 MB
Number of processors installed Number of processors in the product.	1
Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit).	10 nm
Thermal Design Power (TDP)	70 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4
Maximum RAM supported	64 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	4
Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM.	RDIMM
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
iSCSI support
Wake-on-LAN ready
Wake-on-WAN ready
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	3
Remote management port	RJ-45 (Gigabit)
Expansion ports quantity	1
PCI Express x8 (Gen 4.x) slots	1

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Rack (1U)
Cooling type The method used to cool the device or to cool the air around the device.	Active
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	4 fan(s)
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.	4 cm
Fan diameter 2	4 cm
LED indicators	Power, Alarm, Status
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Type Characteristics of the device.	NAS
Device class The category to which this device belongs.	Small & Medium Business
Backup function The function if the main power source fails.
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	52.6 dB
Snapshot
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SSL/TLS, SSH, HTTPS
Access Control List (ACL)
Reset button
Browser supported List of supported browsers for this product.	Chrome, Firefox, Edge, Safari
Share folder	512

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	DiskStation Manager

Power
Power supply unit (PSU) capacity	250 W
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	97.59 W
Power consumption (HDD standby)	56.19 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Number of phases	1

Weight & dimensions
Width The measurement or extent of something from side to side.	481.9 mm
Depth The distance from the front to the back of something.	668.5 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	9.5 kg

Packaging content
Cables included	Power
Power cables quantity	2

Features
Product languages	Multi

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m

Other features
Security features	Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite
Expansion description	Mini-SAS HD
Size (imperial) Physical dimension.	48.3 cm (19")
Supported protocols	SMB AFP NFS FTP WebDAV Rsync
Doesn't contain	Lead, Mercury, Cadmium
Warranty period	5 year(s)
Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.	Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS
