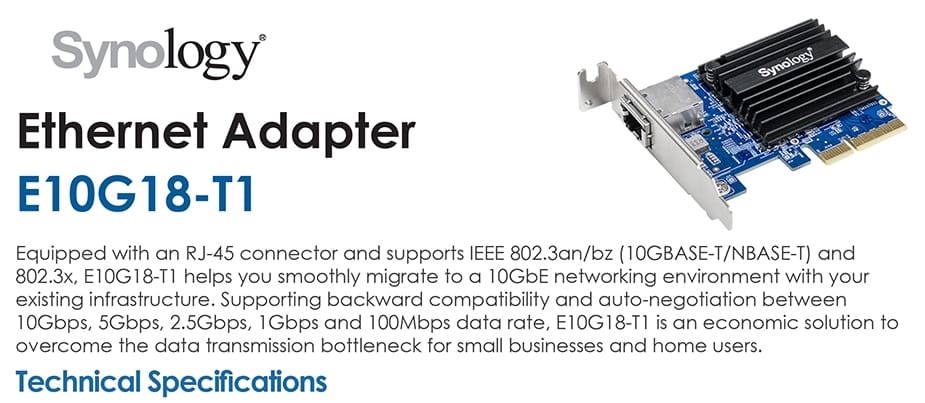

Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps data rate, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ab,IEEE 802.3an,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500,5000,10000 Mbit/s |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Auto-negotiation |
|
| Jumbo frames support |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Blue |
| Internal The product is built in. |
|
| PCI Card form factor Design of the PCI Card. | Full-height (low-profile) |
| Compatible products Other products that can be used with this product. | Synology FS3017, FS2017, FS1018, RS18017xs+, RS18016xs+, RC18015xs+, RS10613xs+, RS4017xs+, RS3617xs+, RS3614xs+, RS3413xs+, RS3618xs, RS3617RPxs, RS3617xs, RS3614(RP)xs, RS3412(RP)xs, RS3411(RP)xs, DS3617xs, DS3615xs, DS3612xs, DS3611xs, DS3018xs, RS2818RP+, RS2418(RP)+, RS1219+, RS818(RP)+, DS1817+, DS1618+, DS1517+ |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68.1 mm |
| Depth The distance from the front to the back of something. | 13.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Other features | |
| Flow control support |
|
| Jumbo frames | 9000 |
| SKU | 328384 |
| MPN | E10G18-T1 |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
