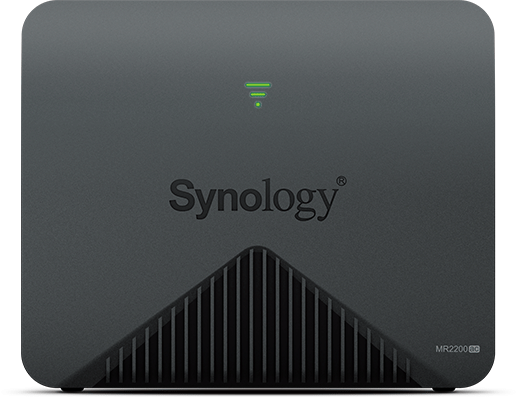

Embrace a whole Wi-Fi coverage in your home and office with the intelligent Synology Mesh Router MR2200ac. Designed with Tri-Band and MU-MIMO technology,
MR2200ac makes sure your devices are on the fastest bandwidth dedicated to an optimized performance while keeping multiple devices reliably connected without any delay.
Besides, you can enjoy the best Wi-Fi seamless roaming with single Wi-Fi name among your modular mesh system.
Safe access provides easy to use parental management while keeping away any maliciious instrusions.
Specification:
• CPU Frequency: Quadl core 717Mhz
• RAM : DDR3 256MB
• LAN port : Gigabit (RJ-45) x 1
• WAN port L Gigabit (RJ-45) x 1
• External port : USB 3.0 x1 (5V,1.5A power output)
• Wireless standards : IEEE 802.11 ac/n/a 5Ghz,IEEE 802.11 b/g/n 2.4Ghz,simultaneous dual-band
• Frequency and data rate:2.4Ghz: 400Mbps(256-QAM supported),5Ghz:867Mbps
• Wireless security: WEP/WPA/WPA2-Personal,WPA/WPA2-Enterprise,Wi-Fi protected setup(WPS) 2.0
• Supported client : Windows XP onwards, Mac OS X 10.7 onwards , Ubuntu 12 onwards.
• AC Input Power Voltage: 100V-240V AC
• Power Frequency: 50/60 Hz, Single Phase
• Operating Temperature: 5°C-40°C
• Storage Temperature: -20°C-60°C
• Relative Humidity: 5%-95% RH
| WAN connection | |
| Ethernet WAN |
 |
| SIM card slot Whether the device features a SIM card slot. |
|
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 867 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| WLAN data transfer rate (third band) | 400 Mbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v |
| Port forwarding |
|
| Dynamic DNS (DDNS) |
|
| VPN tunnels quantity | 4 |
| Mobile network | |
| 3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV. |
|
| 4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing. |
|
| Short Message Service (SMS) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Memory card slot(s) Places where memory cards are placed inside and connected to the computer motherboard. |
 |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Quality of Service (QoS) support |
|
| Wake-on-LAN ready |
|
| Reset button |
|
| WPS push button |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | IPSec |
| Firewall |
|
| Guest access |
|
| DoS attack prevention |
|
| Filtering |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 64 entries |
| DMZ support |
|
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Universal Plug and Play (UPnP) |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Product type The sub-category of the product. | Tabletop router |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 717 MHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Digital Living Network Alliance (DLNA) certified The product has been certified by the Digital Living Network Alliance (DLNA), which is a non-profit collaborative trade organization established by Sony in June 2003 that is responsible for defining interoperability guidelines to enable sharing of digital media between multimedia devices |
|
| Certification | FCC CE BSMI VCCI Class B RCM KC iDA TELEC JATE IC |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12.95 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 199 mm |
| Depth The distance from the front to the back of something. | 65 mm |
| Height The measurement of the product from head to foot or from base to top. | 154 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 450 g |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| AC adapter included |
|
| Quick installation guide |
|
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 284564 |
| MPN | MR2200AC |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| Modem Type | Ethernet |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
