Up to 281 MB/s sustained data transfer; Up to 19% faster drive repair in Synology NAS; Rated for 2.5 million hours MTBF; One-click drive firmware updates through DSM

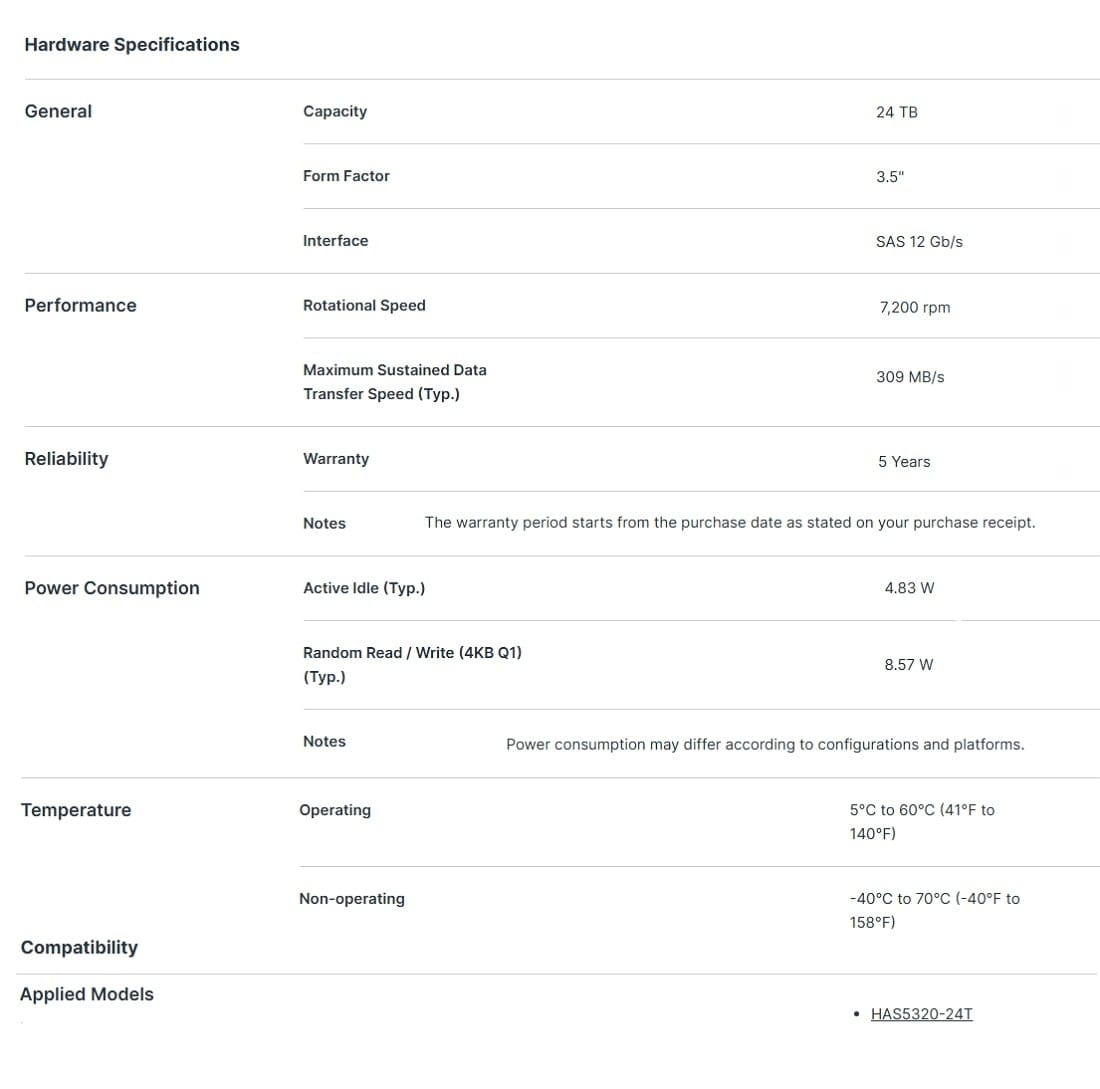

| Features | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 24 TB |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| Storage drive buffer size | 1000 MB |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SAS3 |
| Type Characteristics of the device. | HDD |
| Component for What this product is used as a part of (component for). | Server |
| Hot-swap |
 |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 309 MiB/s |
| Workload rate limit | 550 TB/year |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2500000 h |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8.57 W |
| Power consumption (idle) | 4.8 W |
| Operating voltage | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.1 mm |
| Depth The distance from the front to the back of something. | 147 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 730 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Warranty period | 5 year(s) |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | BSMI, CE, EAC, ICES, KC, RCM, RoHS, UKCA, UL |
| Certification | E, RCM, BSMI, KC, EAC, UKCA, UL, TUV, ICES, RoHS, Morocco Mark |
| SKU | 839331 |
| MPN | HAS5320-24T |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 3.5" |
| Storage Size (HDD) | 24TB |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
