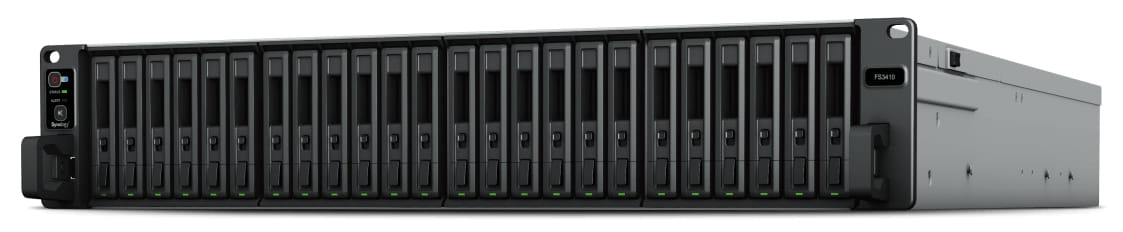

Synology FlashStation FS3410 24-Bay Xeon D-1541 8-Core Rackmount NAS
Item No:
656278
MPN:
FS3410
$12,999.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 3-5 business days
Store Availability
- 4-6 business days at Bankstown Store
- 4-6 business days at Castle Hill Store
- 3-5 business days at Northmead Store
Shipping Estimate
Synology FlashStation FS3410, Storage server, Rack (2U), Intel Xeon D, D-1541, Black
Economical, high-performance data management solution for SMBs
Harness all-flash storage to speed up business workflows
With 24 all-flash bays in a 2U rackmount enclosure, the Synology FlashStation FS3410 is the ideal solution for SMBs, enterprise offices, and data centers requiring high sustained I/O performance for applications such as video post-production, virtual machines (VMs), enterprise email servers, and online transaction processing.
Storage
Supports 24 x 2.5" SATA SSDs
Throughput
Over 356,500/129,400 iSCSI 4K random read/write IOPS1
Memory
16 GB DDR4 ECC RDIMM, up to 128 GB
Expandability
Optional 25/40GbE through PCIe 3.0 expansion
Powerful flash storage server
Combine all-flash performance with Synology systems' ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.
Built for high reliability
The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.
Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Dual power supply
Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Failover cluster
Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimize downtime when performing system updates or upgrades.
Powerful networking options
The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity
Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.
Support for 10/25/40GbE
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage
The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.
Harness all-flash storage to speed up business workflows
With 24 all-flash bays in a 2U rackmount enclosure, the Synology FlashStation FS3410 is the ideal solution for SMBs, enterprise offices, and data centers requiring high sustained I/O performance for applications such as video post-production, virtual machines (VMs), enterprise email servers, and online transaction processing.
Storage
Supports 24 x 2.5" SATA SSDs
Throughput
Over 356,500/129,400 iSCSI 4K random read/write IOPS1
Memory
16 GB DDR4 ECC RDIMM, up to 128 GB
Expandability
Optional 25/40GbE through PCIe 3.0 expansion
Powerful flash storage server
Combine all-flash performance with Synology systems' ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.
Built for high reliability
The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.
Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Dual power supply
Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Failover cluster
Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimize downtime when performing system updates or upgrades.
Powerful networking options
The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity
Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.
Support for 10/25/40GbE
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage
The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.
| Storage | |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| Total installed system drives capacity | 1000000 GB |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 6, 10, F1, JBOD |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 24 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® D |
| Processor model The model number for the processor in a computer. | D-1541 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.1 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 2.7 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 16 |
| Processor cache | 12 MB |
| CPU configuration (max) | 1 |
| Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries. |
|
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 128 GB |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | RDIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 7 |
| PCI Express x8 (Gen 3.x) slots Slots in the computer for PCI Express x8 (Gen 3.x), which is a high-speed serial computer expansion bus standard with 8 pins. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 4 fan(s) |
| LED indicators | Status |
| Performance | |
| Type Characteristics of the device. | Storage server |
| Device class The category to which this device belongs. | Large Enterprise Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, USB drive |
| Multilingual support |
|
| Number of users The number of people that use or can use this product. | 16000 user(s) |
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES |
| Access Control List (ACL) |
|
| Browser supported List of supported browsers for this product. | Google Chrome, Firefox, Microsoft Edge, Safari 13 |
| System log |
|
| Share folder |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | DSM |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 7.1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430.5 mm |
| Depth The distance from the front to the back of something. | 692 mm |
| Height The measurement of the product from head to foot or from base to top. | 88 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15 kg |
| Packaging content | |
| Cables included | AC |
| Power cables quantity | 2 |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, RoHS |
| Processor special features | |
| Embedded options available |
|
| Enhanced Intel SpeedStep Technology |
|
| Execute Disable Bit |
|
| Idle States |
|
| Intel 64 |
|
| Intel Enhanced Halt State |
|
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology |
|
| Intel TSX-NI |
|
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 656278 |
| MPN | FS3410 |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Rackmounted |
| NAS Bays | 24.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
