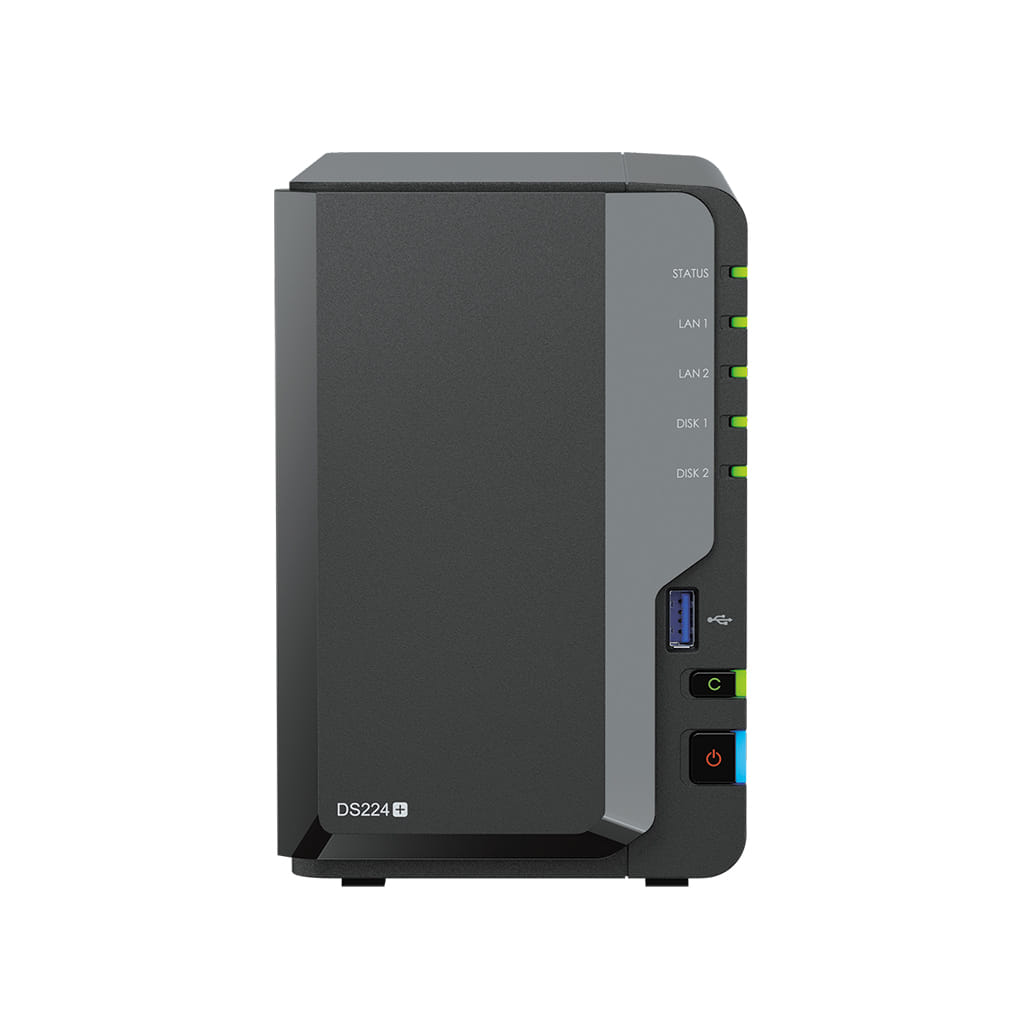

Synology DiskStation DS224+ 2 Bay 3.5" Diskless 2xGbE NAS (HMB),Intel Celeron J4125 4 core 2.0GHz,USB3.2 x2 , 2 year Warranty
The Synology DiskStation DS224 is a compact 2 bay NAS solution designed to bring centralized data management to small organizations and teams. Synology DiskStation Manager (DSM) supports creating a private cloud to make working together better for everyone, with tools to manage, share, and protect files and photos, back up devices and data, and manage surveillance recordings.
Powerful 2 bay all round storage solution for small businesses
2GB DDR4 onboard memory expandable up to 6GB with DDR4 non ECC SO DIMM 4 GB (D4NESO 2666 4G)
Organize and stream your music, video, and photo collections across all your devices
Maximum IP camera: 25 (total of 750 FPS at 720p, H.264) (includes two free camera licenses; additional cameras require the purchasing of additional licenses)
Back up critical data and reduce your Recovery Time Objective (RTO) with Snapshot Replication
Model supports Active Backup Office 365
| Storage | |
| Storage drive capacity The amount of data that can be stored on the storage drive. | 0 GB |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | Serial ATA |
| Storage drive size The size of the storage drive, given in inches (''). | 2.5/3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, JBOD |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Celeron® |
| Processor model The model number for the processor in a computer. | J4125 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 2.7 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| CPU configuration (max) | 1 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 2 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 6 GB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Desktop |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| LED indicators |
|
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Home & Home Office |
| Backup function The function if the main power source fails. |
|
| Number of users The number of people that use or can use this product. | 1200 user(s) |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 22 dB |
| Access Control List (ACL) |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Browser supported List of supported browsers for this product. | Google Chrome, Firefox, Microsoft Edge, Safari |
| USB copy function |
|
| Power | |
| Power supply unit (PSU) capacity | 60 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 108 mm |
| Depth The distance from the front to the back of something. | 232.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 165 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.3 kg |
| Packaging content | |
| External power adapter |
|
| Cables included | AC, LAN (RJ-45) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| SKU | 734012 |
| MPN | DS224+ |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Freestanding |
| NAS Bays | 2.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
