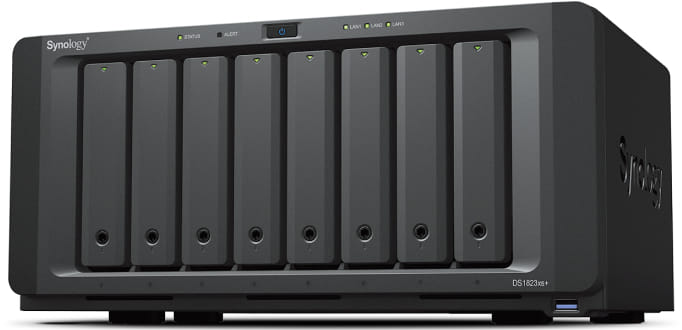

Synology DiskStation DS1823XS , NAS, Tower, AMD Ryzen, V1780B, Black
Flexible large scale storage for small and medium sized businesses
Private data center on your desk
The DS1823xs is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.
Desktop sized powerhouse
Over 3,100/2,600 MB/s seq. read/write,1 built in 10GbE, and up to 144 TB raw storage2 before expansion.
Flexible configuration
Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.3
Versatile applications
Back up 300 endpoints, manage 75 IP cameras,4 or safely sync and share files between devices and sites.
Safe, dependable, and scalable
Built in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs dependable, easy to maintain, and cost efficient.
Data integrity protection
The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self healing, and efficient point in time snapshots. ECC memory provides additional integrity safeguards.
Efficient remote management
Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out of band management (OOB).
Plug and play expansion
The DS1823xs can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.
The performance you need
Configure the DS1823xs to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance.
Store, share, and protect
Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.
Flexible file server
Use the DS1823xs as a central file repository and data sharing hub. Provide easy access to business data from PCs, phones, and other devices, and set up powerful cross site syncing to empower collaboration between offices or branches.
Private cloud
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.
Dependable and secure network storage
Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built in snapshot technology and other backup options.
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console. Learn more
Dependable and secure network storage
Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built in snapshot technology and other backup options.
Cross site syncing
Secure site to site file and folder syncing
Make sure branches always have up to date copies of crucial documents and data available locally by syncing Synology systems one or two way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page.
Backup repository
Back up files, folders, physical devices, VMs, and SaaS applications with free solutions, and protect your NAS with built in technologies.
Centralize your backup and recovery solution
Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built in remote backup solutions designed to protect your data with seamless 3 2 1 backup configurations.
Centralize your backup and recovery solution
Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built in remote backup solutions designed to protect your data with seamless 3 2 1 backup configurations.
Perform full system backups with Synology
Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.
Protect folders and LUNs with snapshots
Configure efficient point in time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Allow users to easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover.
Private data center on your desk
The DS1823xs is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.
Desktop sized powerhouse
Over 3,100/2,600 MB/s seq. read/write,1 built in 10GbE, and up to 144 TB raw storage2 before expansion.
Flexible configuration
Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.3
Versatile applications
Back up 300 endpoints, manage 75 IP cameras,4 or safely sync and share files between devices and sites.
Safe, dependable, and scalable
Built in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs dependable, easy to maintain, and cost efficient.
Data integrity protection
The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self healing, and efficient point in time snapshots. ECC memory provides additional integrity safeguards.
Efficient remote management
Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out of band management (OOB).
Plug and play expansion
The DS1823xs can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.
The performance you need
Configure the DS1823xs to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance.
Store, share, and protect
Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.
Flexible file server
Use the DS1823xs as a central file repository and data sharing hub. Provide easy access to business data from PCs, phones, and other devices, and set up powerful cross site syncing to empower collaboration between offices or branches.
Private cloud
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console.
Dependable and secure network storage
Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built in snapshot technology and other backup options.
A private cloud suite for file sharing
Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console. Learn more
Dependable and secure network storage
Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built in snapshot technology and other backup options.
Cross site syncing
Secure site to site file and folder syncing
Make sure branches always have up to date copies of crucial documents and data available locally by syncing Synology systems one or two way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page.
Backup repository
Back up files, folders, physical devices, VMs, and SaaS applications with free solutions, and protect your NAS with built in technologies.
Centralize your backup and recovery solution
Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built in remote backup solutions designed to protect your data with seamless 3 2 1 backup configurations.
Centralize your backup and recovery solution
Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built in remote backup solutions designed to protect your data with seamless 3 2 1 backup configurations.
Perform full system backups with Synology
Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.
Protect folders and LUNs with snapshots
Configure efficient point in time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Allow users to easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover.
| Storage | |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration |
|
| Online RAID expansion |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 8 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Ryzen Embedded |
| Processor model The model number for the processor in a computer. | V1780B |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3.35 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.6 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Number of processors supported The quantity of processors which can be used by the product. | 1 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 2 |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | SO-DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| iSCSI support |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Link aggregation |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| PCI Express x8 (Gen 3.x) slots Slots in the computer for PCI Express x8 (Gen 3.x), which is a high-speed serial computer expansion bus standard with 8 pins. | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| LED indicators |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, iSCSI LUN |
| Multilingual support |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 23.6 dB |
| Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card. |
|
| Snapshot |
|
| Management protocols | SNMP |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES |
| Access Control List (ACL) |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Google Chrome Firefox Microsoft Edge Safari |
| System log |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | DiskStation Manager |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 7.1.1 |
| Server operating systems supported | Windows Server 2019 |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 87.93 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 343 mm |
| Depth The distance from the front to the back of something. | 243 mm |
| Height The measurement of the product from head to foot or from base to top. | 166 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.2 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Sustainability | |
| Sustainability compliance |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Compliance certificates | CE, RoHS |
| Certification | FCC BSMI VCCI RCM EAC CCC KC |
| SKU | 718709 |
| MPN | DS1823xs+ |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Freestanding |
| NAS Bays | 8.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
