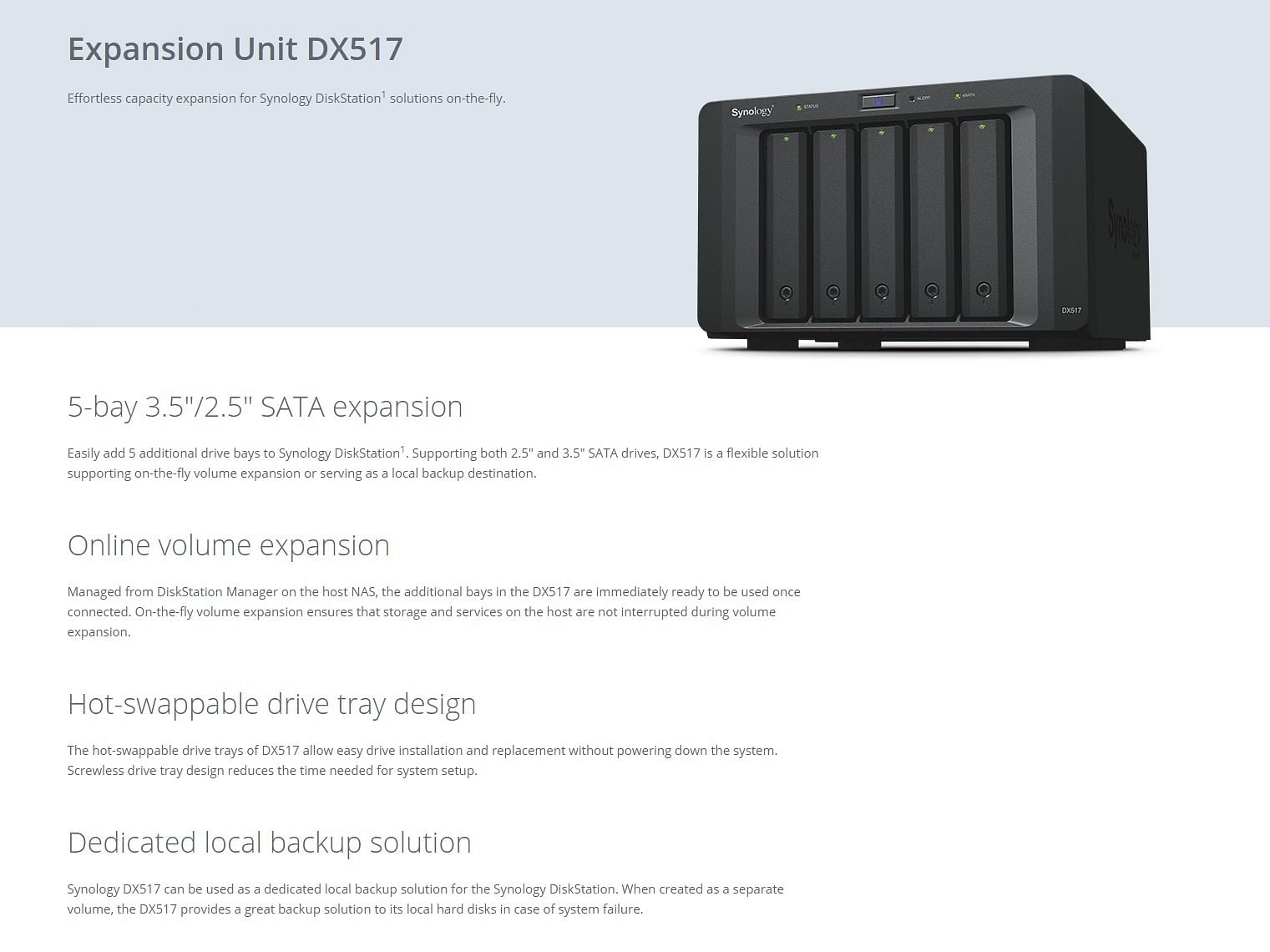

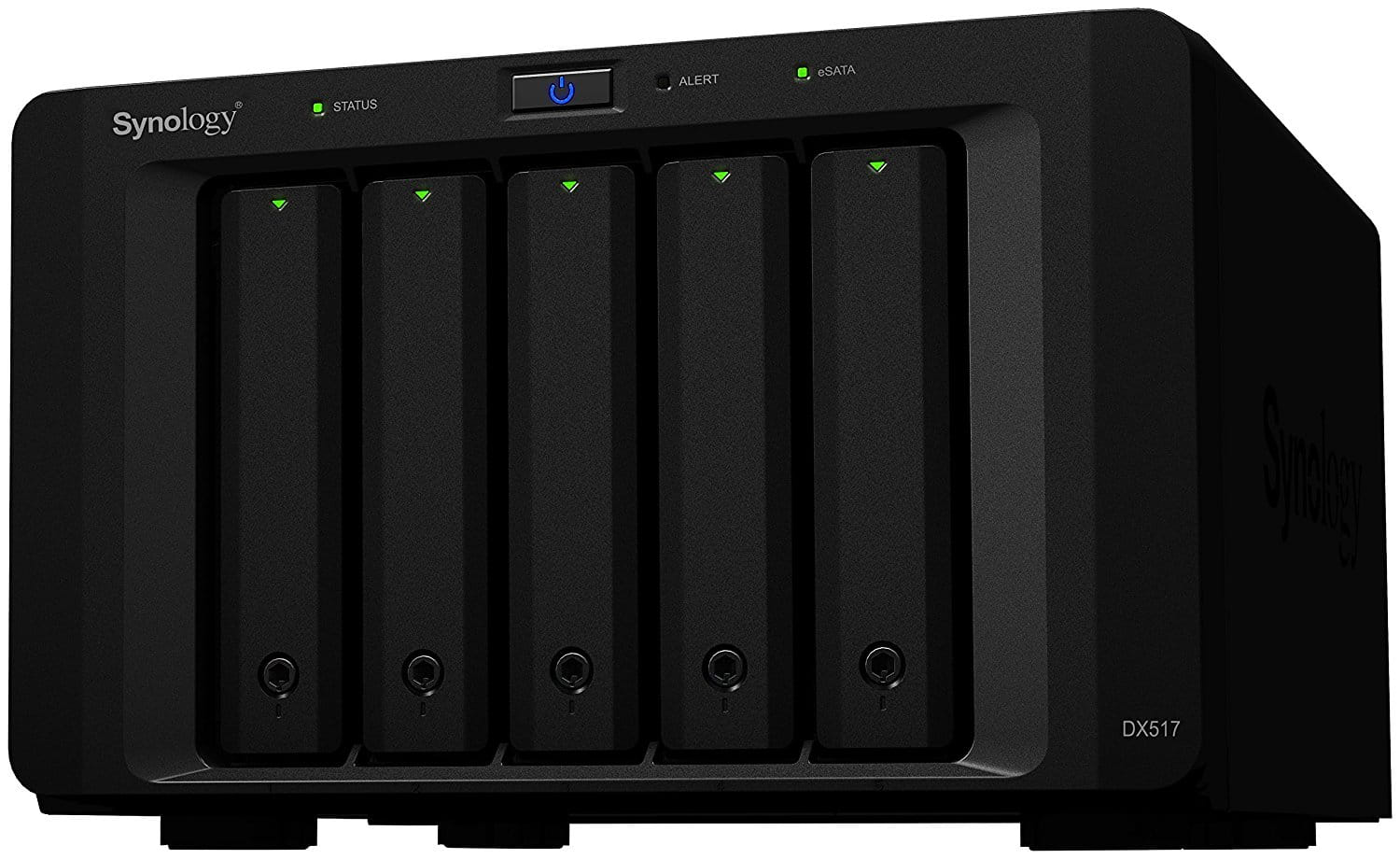

Synology® DX517 offers simple storage capacity expansion solution for your DiskStation through its intuitive plug-n-use design. DX517 allows you to instantly scale up to 5 addiontal hard drives, so that you can expaid RAID coume online or deploy the drives as a dedicated local backup destination for your Diskstation.
Synology DX517 DiskStation Expansion add on 5 for x17 and x18 series only - Synology® DX517 offers simple storage capacity expansion solution for your DiskStation through its intuitive plug-n-use design. DX517 allows you to instantly scale up to 5 addiontal hard drives, so that you can expaid RAID coume online or deploy the drives as a dedicated local backup destination for your Diskstation.
| Storage | |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD,SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 5 |
| Maximum supported storage capacity The maximum capacity of data storage on the device. | 70 TB |
| Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
 |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
|
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Desktop |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Alarm,Power,Status |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 21.5 dB |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC B, CE B, BSMI B |
| Performance | |
| Device class The category to which this device belongs. | Small & Medium Business |
| Compatible products Other products that can be used with this product. | Synology DS1817+, DS1517+ |
| Power | |
| Power supply unit (PSU) capacity | 200 W |
| Number of power supply units | 1 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 29.9 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 248 mm |
| Depth The distance from the front to the back of something. | 233 mm |
| Height The measurement of the product from head to foot or from base to top. | 157 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.91 kg |
| Packaging content | |
| Cables included | AC,eSATA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 231105 |
| MPN | DX517 |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Freestanding |
| NAS Bays | 5.00 |
| Stock Availability | Available for Shipping |
| Product Use | Business |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.synology.com/ |
