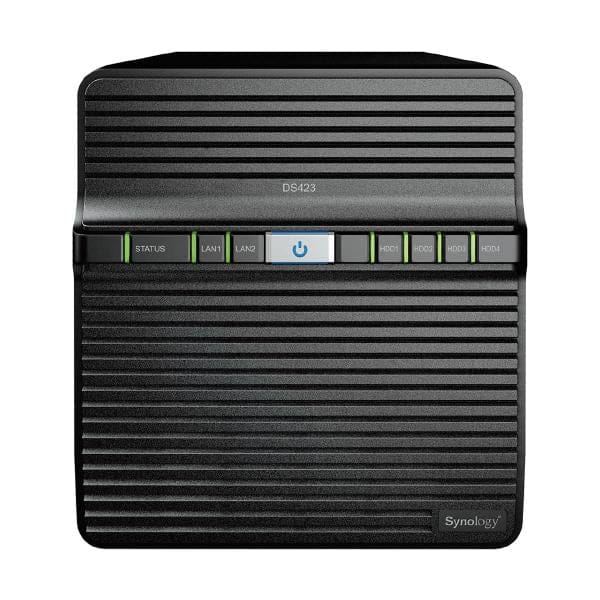

Synology DiskStation DS423 4-Bay RTD1619B Quad-Core NAS

Storage
Supported storage drive interfaces	Serial ATA
Storage drive size The size of the storage drive, given in inches ('').	2.5/3.5"
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5,3.5"
Maximum supported storage capacity The maximum capacity of data storage on the device.	108 TB
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems	BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drives installed Storage drives are built into the system.
Number of storage drives supported How many storage drives can be fit into the product at once.	4
Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD

Processor
Processor manufacturer The manufacturer that produced the processor.	Realtek
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Realtek
Processor model The model number for the processor in a computer.	RTD1619B
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.7 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4

Memory
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4
Maximum RAM supported	2 GB
Internal memory A computer's memory which is directly accessible to the CPU.	2 GB

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
iSCSI support
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2

Design
Cooling type The method used to cool the device or to cool the air around the device.	Active
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	2 fan(s)
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.	8 cm
Fan diameter 2	8 cm
LED indicators
Built-in display A display which is part of the product, so you do not need to attach another display.
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Built-in speaker(s) The device contains speaker(s) to produce sound.

Performance
Type Characteristics of the device.	NAS
Device class The category to which this device belongs.	Home & Home Office
Backup function The function if the main power source fails.
Backup features	Cloud, iSCSI LUN
Buzzer
Multilingual support
Number of users The number of people that use or can use this product.	1024 user(s)
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	22.9 dB
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS, SSH, SSH-1.5, SSH-2, SSL/TLS
Access Control List (ACL)
Reset button
On/off switch The button which is pressed to switch the device on or off.
Built-in FTP server
Browser supported List of supported browsers for this product.	Google Chrome, Firefox, Microsoft Edge, Safari
System log

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	DiskStation Manager

Power
Power supply location Where the power supply is positioned.	External
Power supply unit (PSU) capacity	90 W
Number of power supply units	1
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	32.41 W
Power consumption (sleep)	4.97 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 / 60 Hz

Weight & dimensions
Width The measurement or extent of something from side to side.	184 mm
Depth The distance from the front to the back of something.	168 mm
Height The measurement of the product from head to foot or from base to top.	230 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	2.21 kg

Packaging content
External power adapter
Cables included	AC, LAN (RJ-45)
Power cables quantity	1

Technical details
Sustainability certificates	CCC, CE, Federal Communications Commission (FCC), UKCA

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m
