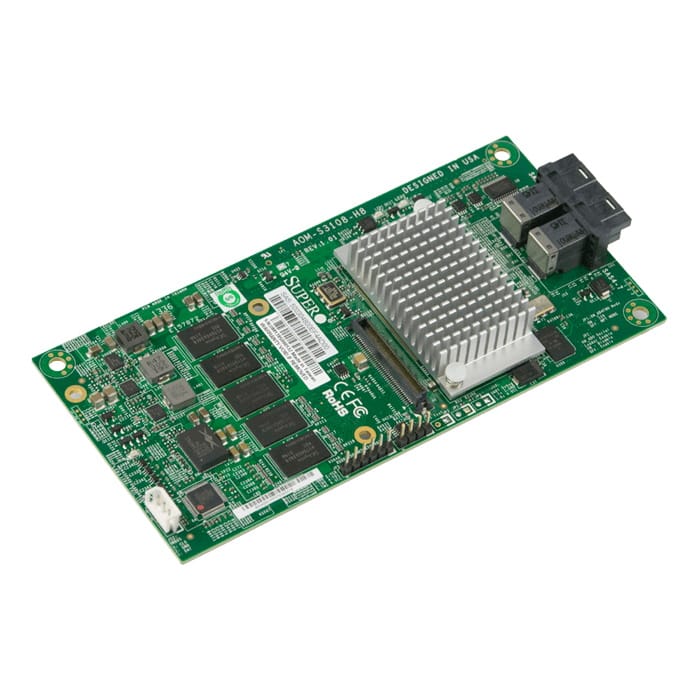

Supermicro AOM-S3108M-H8 - storage controller (RAID) - SAS 12Gb/s - PCIe
Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro MegaRAID Low Profile AOM-S3108-H8 features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the Broadcom SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of supercar/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Use a Broadcom 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.
Key Features
Broadcom 3108 8-port PCI-E SAS-3 controller
Designed for Blade Systems
8-port (8 internal) 12Gb/s per port
Supports 16 physical Devices
Supports RAID 0, 1, 5, 6, 10, 50, 60
On board hardware IO Processor
2GB 1866MHz DDR3 on-card cache
Advanced array configuration and management utilities
Automatically negotiates PCI-E link widths
Power management support
Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data
transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Optional Supercap/TFM Unit for cached data protection
(BTR-TFM8G-LSICVM02; Installation kit: MCP-240-00127- 0N)
- Ambient operating temperature from 10 DegC - 55 DegC
OS Support : Windows XP, 2K3, 2K8, Vista, RedHat
Enterprise and SUSE Linux
Supports fastpath(Free) and cachecade
(AOC-CHCD-PRO2-ESW)
The Supermicro MegaRAID Low Profile AOM-S3108-H8 features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the Broadcom SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of supercar/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Use a Broadcom 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.
Key Features
Broadcom 3108 8-port PCI-E SAS-3 controller
Designed for Blade Systems
8-port (8 internal) 12Gb/s per port
Supports 16 physical Devices
Supports RAID 0, 1, 5, 6, 10, 50, 60
On board hardware IO Processor
2GB 1866MHz DDR3 on-card cache
Advanced array configuration and management utilities
Automatically negotiates PCI-E link widths
Power management support
Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data
transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Optional Supercap/TFM Unit for cached data protection
(BTR-TFM8G-LSICVM02; Installation kit: MCP-240-00127- 0N)
- Ambient operating temperature from 10 DegC - 55 DegC
OS Support : Windows XP, 2K3, 2K8, Vista, RedHat
Enterprise and SUSE Linux
Supports fastpath(Free) and cachecade
(AOC-CHCD-PRO2-ESW)
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | SAS |
| Expansion card form factor | Low-profile |
| Design | |
| Internal The product is built in. |
 |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Data transfer rate (max) | 12 Gbit/s |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,50,60 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 50 °C |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 76.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 152.4 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Quantity The number of products there are. | 1 |
| SKU | 441890 |
| MPN | AOM-S3108M-H8 |
| Brand | Supermicro |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
