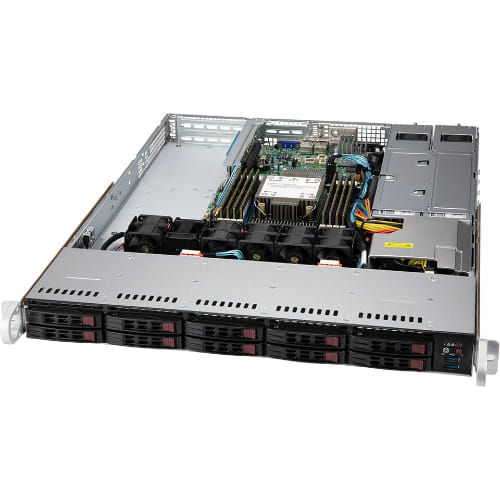

Supermicro 110P 1RU 4310 12C/16GB/960GB Server

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Xeon® 3000 Sequence
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel® C621
Intelligent Platform Management Interface (IPMI) support

Memory
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	8
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	3200 MHz
Maximum internal memory The maximum internal memory which is available in the product.	3 TB

Storage
HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.	SATA III
HDD size The amount of data that the hard drive can store.	2.5"
Number of HDDs supported The total number of hard drives that can be used in/with this product.	10
Supported HDD sizes The size of the hard disk drives which can be used by the device.	2.5"
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0, 1, 5, 10
Hot-swap
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
LAN controller	Intel® X550
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	10 Gigabit Ethernet

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	3
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.	2

Expansion slots
PCI Express x16 slots	3

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Rack (1U)
Product colour The colour e.g. red, blue, green, black, white.	Black
Rack mounting The type of mounting that can position devices in a shelving system (rack).

Performance
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	EEPROM
Trusted Platform Module (TPM)

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Power
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	750 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	10 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	5 - 95%

Certificates
Certification	80 PLUS Platinum Level

Logistics data
Harmonized System (HS) code	84714100

Weight & dimensions
Width The measurement or extent of something from side to side.	437 mm
Depth The distance from the front to the back of something.	597 mm
Height The measurement of the product from head to foot or from base to top.	43 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	7.03 kg
Package width The distance from one side of the packaging to the other.	609.6 mm
Package depth The distance from the front to the back of the packaging.	812.8 mm
Package height The distance from the top to the bottom of the packaging.	203.2 mm
Package weight Weight of the packaged product.	12.2 kg
