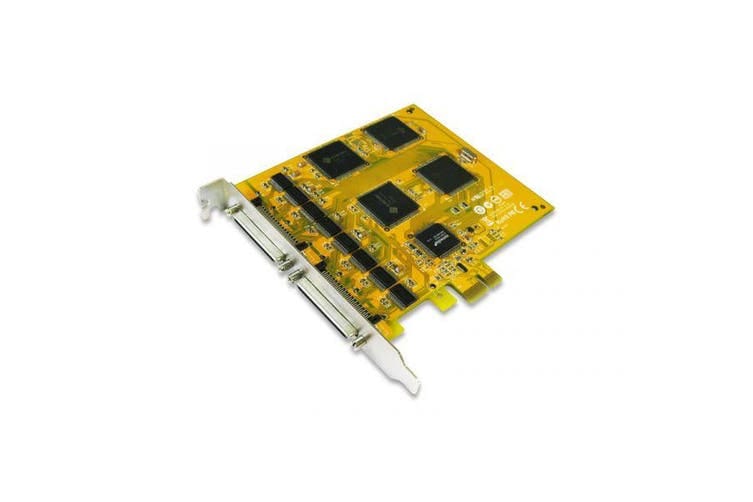

SUNIX SER5416H, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 16 serial ports to their system, allowing them to use serial devices further. SUNIX SER5416H card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications
Features Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps. High speed SUN1999 16C950 compatible UART controller on-board. Designed to meet PCI Express Base Specification Revision 1.1 Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys. On-chip hardware auto flow control to guarantee no data loss. Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard. Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Host interface gender | Male |
| Output interface The socket (port) where the output connectors are connected. | RS-232 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Satin steel, Yellow |
| Certification | CE, FCC, VCCI, BSMI |
| Features | |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Stop bits | 1, 1.5, 2 |
| Flow control support |
|
| Parity bit | Even, Mark, N, Odd, Space |
| Flow Control type | N, RTS/CTS, XON/XOFF |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 110 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 443426 |
| MPN | SER5416H |
| Brand | Sunix |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.sunix.com/ |
