Unleash the performance of your desktop PC or server with this enterprise-class drive adapter. By providing compatibility with newer U.2 NVMe SSDs, such as the Intel® SSD 750 series, you can gain faster read/write speeds and higher productivity levels for data-intensive applications.
Upgrade your system cost-effectively
This drive adapter provides an ideal way to upgrade legacy motherboard platforms and your existing computer system, by adding compatibility for newer U.2 NVMe SSDs, which are designed to meet the high-performance needs of today?s data centers and enterprise-level applications.
The adapter card enables IT professionals and system integrators to upgrade their computing infrastructure by installing the adapter card into the PCIe slots on desktop PCs or servers. Upgrading, rather than replacing computing infrastructure, provides a cost-effective way to enhance your system?s performance.
U.2 NVMe SSDs also offer superior energy efficiency, providing an advantage to companies looking to reduce energy costs.
Gain higher productivity through faster read/write speeds
Companies and organizations with intensive file workloads can achieve greater productivity by upgrading their data center or enterprise-level applications with U.2 NVMe SSD capability. U.2 SSDs are up to four times faster than SATA SSDs, providing extremely fast read/write speeds, high-speed file access and transfers, and rapid boot times. U.2 NVMe SSDs are also more reliable than SATA hard drives, so less time is spent waiting for computers to boot, or applications and files to load.
Through U.2 NVMe SSD capability, the drive adapter brings enhanced productivity for numerous data-heavy applications. Office professionals, from architects and engineers to healthcare professionals, can quickly access and edit large documents, spreadsheets, or 3D models and renderings. Creative professionals, including content creators and graphic designers, can work more productively on photo editing, video production and editing of large image or audio files.
The drive adapter also saves time for gaming enthusiasts, with much faster launch times and level changes.
Installs easily into your PC?s 4-lane PCIe expansion slot

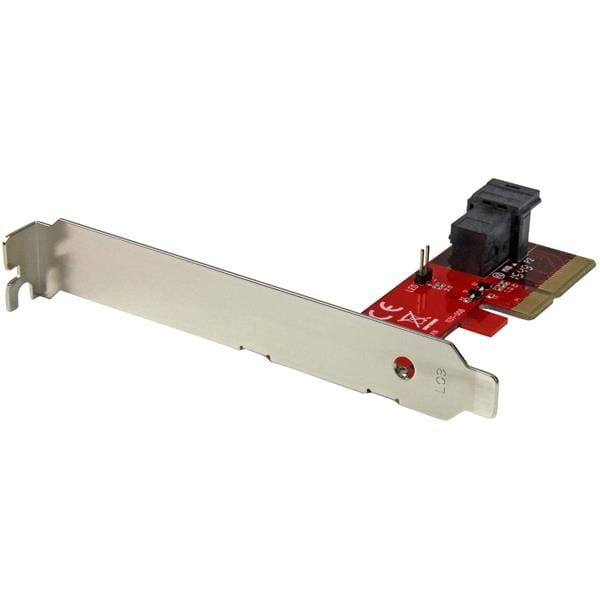

The U.2 SSD adapter lets you add a PCIe NVMe 2.5 in. SSD to a computer system that doesn?t natively support U.2 PCIe NVMe. The adapter simply connects to your computer?s 4-lane or greater PCI Express slot and enables you to connect a U.2 SSD to your PC through the provided SFF-8643 interface, using an SFF-8643 to U.2 cable. The PCIe 2.5 in. NVMe SSD adapter is compatible with PCIe 3.0 and PCIe 2.0 motherboards.
The drive adapter comes with a full-profile bracket (preinstalled), and also includes a low-profile bracket that makes it easy to install the card in a small form-factor computer.
The PEX4SFF8643 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SFF-8643 (36 pin, x4 PCIe Gen 3) |
| Host Connectors | PCI Express x4 |
| Environmental | |
| Humidity | 15% ~ 90% |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Hardware | |
| Bus Type | PCI Express |
| Compatible Drive Types | PCIe U.2 SSD |
| Fan(s) | No |
| Interface | PCI Express |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | LED Header for drive activity |
| Packaging Information | |
| Shipping (Package) Weight | 110 g [3.9 oz] |
| Physical Characteristics | |
| Color | Red |
| Product Height | 44 mm [1.7 in] |
| Product Length | 81 mm [3.2 in] |
| Product Weight | 32 g [1.1 oz] |
| Product Width | 18 mm [0.7 in] |
| What's in the Box | |
| Included in Package | full-profile bracket (installed) |
| low-profile bracket | |
| quick-start guide | |
| x4 PCI Express to SFF-8643 adapter | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | SAS |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Red |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 18 mm |
| Depth The distance from the front to the back of something. | 81 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 32 g |
| Packaging data | |
| Quick installation guide |
|
| Package width The distance from one side of the packaging to the other. | 144 mm |
| Package depth The distance from the front to the back of the packaging. | 177 mm |
| Package height The distance from the top to the bottom of the packaging. | 31 mm |
| Package weight Weight of the packaged product. | 111 g |
| SKU | 244174 |
| MPN | PEX4SFF8643 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
