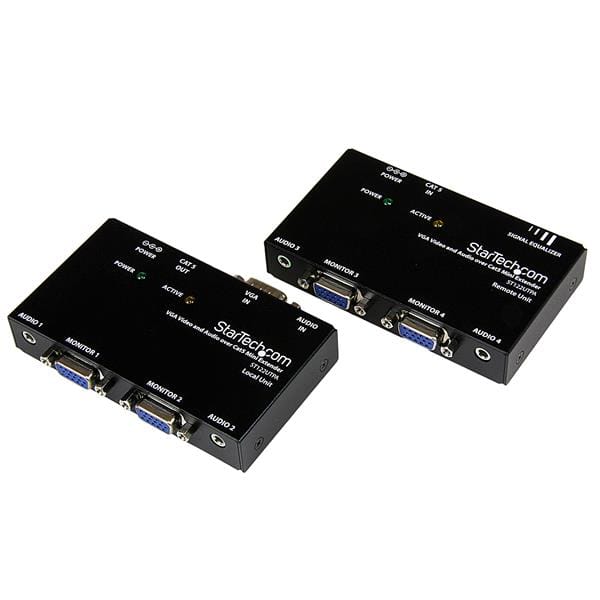

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| RJ-45 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| VGA (15 pin, High Density D-Sub) Male | |
| Remote Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| RJ-45 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | No |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 1.2 kg [2.7 lb] |
| Performance | |
| Max Distance | 150 m / 500 ft |
| Maximum Cable Length | 152.4 m [500 ft] |
| Supported Resolutions | 1440x900 @ 150ft / 50m 1280x1024 @ 300ft / 100m 1024x768 @ 500ft / 150m |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 20 mm [0.8 in] |
| Product Length | 60 mm [2.4 in] |
| Product Weight | 181 g [6.4 oz] |
| Product Width | 83 mm [3.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Output Current | 0.5A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 6 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Instruction Manual |
| Local VGA Extender Unit | |
| Mounting Bracket for Receiver (w/ screws) | |
| Power Adapter | |
| Remote VGA Extender Unit | |
| Sets Rubber Feet | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1024 x 768 (XGA),1280 x 1024 (SXGA),1440 x 900 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum |
| Daisy chain |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, FCC |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 2 |
| VGA (D-Sub) output ports | 2 |
| Audio input The type of audio input that the device requires, and the connection needed. | 2 x 3.5 mm |
| Audio output The type of audio output that the device produces, and the connector(s). | 2 x 3.5 mm |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Output current | 0.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6 W |
| External power adapter |
|
| Weight & dimensions | |
| Receiver dimensions (W x D x H) | 83 x 60 x 20 mm |
| Receiver weight | 181 g |
| Transmitter dimensions (WxDxH) | 83 x 60 x 20 mm |
| Transmitter weight | 181 g |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 92 x 242 x 188 mm |
| Package width The distance from one side of the packaging to the other. | 92 |
| Package depth The distance from the front to the back of the packaging. | 242 |
| Package height The distance from the top to the bottom of the packaging. | 188 |
| Package weight Weight of the packaged product. | 1.2 kg |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Mounting brackets included |
|
| Technical details | |
| Audio support |
|
| SKU | 245686 |
| MPN | ST122UTPA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
