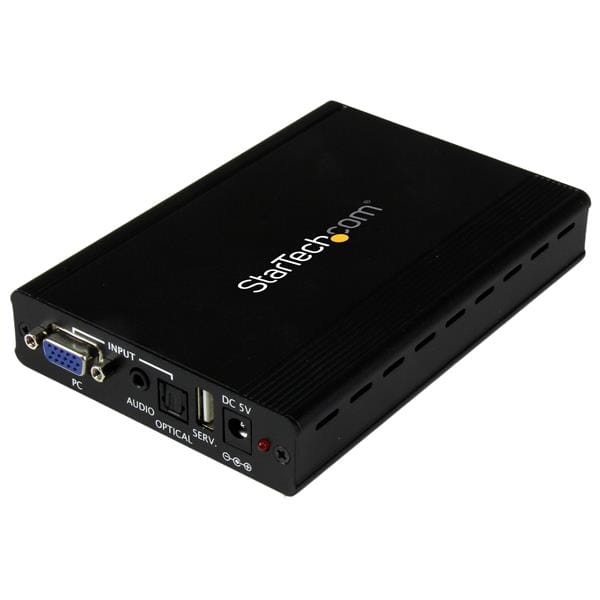

This VGA to HDMI® converter and scaler lets you connect your analog VGA video signal to a digital HDMI display. It features a built-in video scaler that adjusts the output signal to suit virtually any HDMI display. It scales the signal to your choice of resolutions, up to 1080p.
The converter and scaler features 3.5mm and optical audio inputs, which let you combine audio into the HDMI output. The scaler creates a digital signal at high resolutions that's perfect for updating legacy VGA video equipment to work with newer HDMI televisions or projectors.
Ensure compatibility between your VGA source and HDMI display
New HDMI displays are phasing out support for lower resolution video signals such as 480i, 480p, and 720p. Without support for these common VGA resolutions, you may not be able to use a standard adapter to connect your legacy video output to your new display.
This converter lets you continue using your current VGA source equipment by scaling your video signal to a resolution that?s compatible with your new HDMI display. Scaling your source enables you to upgrade to a sleek new HDMI display while keeping your tried-and-true source material on display at trade shows and storefronts.
Continue using your reliable VGA source
Upgrading every component in your A/V setup can be costly and time consuming. Retaining your source can save you the cost and hassle of buying and configuring new equipment. With the VGA to HDMI converter, you can bridge the gap between old and new technologies by converting your dependable VGA source to high-resolution HDMI.
Enjoy hassle-free operation
This converter features automatic resolution detection that minimizes your setup time by avoiding tedious programming. Plus, it features an intuitive on-screen menu that lets you customize the parameters of your input to quickly select and compare different output options, ensuring you get the best video solution possible in a very short time period.
Notes: This converter does not output digitally-encrypted content. This converter is the direct replacement for VGA2HDMIPRO.
The VGA2HDPRO2 and is backed by a 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | 3.5mm Mini-Jack (3 Position) / Mini-Toslink (SPDIF, Optical) Female Input |
| Toslink (SPDIF, Optical) Female Input | |
| VGA (15 pin, High Density D-Sub) Female Input | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Female Output |
| HDMI (19 pin) Female Input | |
| Toslink (SPDIF, Optical) Female Output | |
| Environmental | |
| Humidity | 20~90% RH (non-condensing) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Converter Type | Scaler |
| Output Signal | HDMI |
| Indicators | |
| LED Indicators | Power LED |
| Packaging Information | |
| Shipping (Package) Weight | 0.9 kg [2 lb] |
| Performance | |
| Audio Specifications | 2-Channel Stereo audio (3.5mm) 7.1-channel surround sound audio (SPDIF) |
| Maximum Analog Resolutions | 1920 x 1200 |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 25 mm [1 in] |
| Product Length | 147 mm [5.8 in] |
| Product Weight | 326 g [11.5 oz] |
| Product Width | 102 mm [4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 600 ma |
| Input Voltage | 110V-240V AC |
| Output Current | 2.6 A |
| Output Voltage | 5 DC |
| Power Consumption (In Watts) | 13 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | 4ft (1.2m) VGA Cable |
| 6ft (1.8m) 3.5mm to RCA Cable | |
| Quick install guide | |
| Universal Power Adapter (NA/EU/UK/AU) | |
| VGA to HDMI Converter / Scaler | |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p,720p |
| Audio | |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Audio support |
 |
| Other features | |
| Converter type | Scaler video converter |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| Supported resolutions | 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720, 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640x480 |
| Certification | CE, FCC, RoHS |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | VGA (D-Sub) |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| Power | |
| External power adapter |
|
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Operating current | 2.6 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 102 mm |
| Depth The distance from the front to the back of something. | 147 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 326 g |
| Packaging data | |
| Cables included | RCA,VGA |
| AC adapter included |
|
| Package width The distance from one side of the packaging to the other. | 185 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 74 mm |
| Package weight Weight of the packaged product. | 902 g |
| SKU | 247905 |
| MPN | VGA2HDPRO2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
