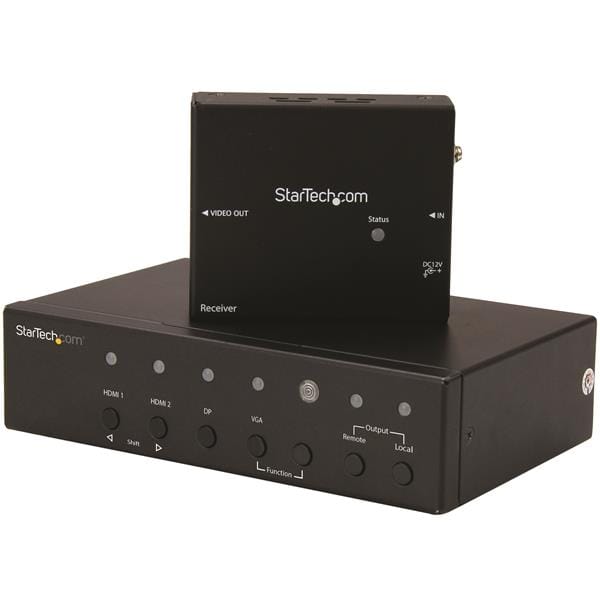

This multi-input video extender kit uses HDBaseT™ technology to extend your video signals up to 230 feet (70 meters) over a single CAT5e or CAT6 cable. It features a built-in video switch that enables you to choose which video source is outputted from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).The video extender supports Ultra HD 4K and Full HD 1080p video resolutions, with support for the accompanying digital 7.1 audio.
Seamless multi-interface operation, with a switch and extender in one
This HDBaseT extender features a built-in converter switch, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same remote HDMI display, without having to use additional adapters or scalers or a separate video switch.
With support for multiple video sources and HDBaseT, this extender is the perfect solution for adding a large display to your boardroom or classroom, enabling BYOD laptops with HDMI, DisplayPort or VGA outputs to share their display with the room.
Effortless control with automatic or priority switching
The extender switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching.
The multi-input video extender kit is perfect for digital signage applications, where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages. Plus, the combined built-in HDBaseT functionality means you can connect a remote digital signage display with one kit that reduces failure points.
Hassle-free integration with your existing infrastructure
The kit extends your video signal over a single cable, unlike some video extender systems that require two cables and only offer minimal audio support. Extending your video with one cable reduces potential failure points and also lowers your cabling costs.
Using standard CAT5e, CAT6 or CAT7 cables, the HDBaseT extender works with existing Ethernet infrastructure that's already built into large commercial buildings such as shopping centers, stadiums, schools, and hospitals, making it the perfect solution for deploying digital signage.
Astonishing 4K picture quality from an impressive distance
With high-quality HDMI cables beginning signal degradation at 30 feet, it can be difficult to maintain the brilliance of 4K video even at shorter distances. But with HDBaseT, you?ll be amazed at how your Ultra HD picture -- four times the resolution of high-definition 1080p, is just as brilliant even at distances up to 130 feet from your video source.
Even if you're not running 4K, HDBaseT supports High-Definition 1080p and lower resolutions at even greater distances, up to 230 feet from your source, giving you peace of mind knowing that this extender will comfortably work with any HDMI video source and display.
What is HDBaseT?
HDBaseT is a zero-latency connectivity standard that?s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.
The STDHVHDBT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Output Signal | HDMI |
| Connector(s) | |
| Local Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female Input |
| DisplayPort (20 pin) Female Input | |
| HDMI (19 pin) Female Input | |
| HDMI (19 pin) Female Output | |
| IrDA (Infrared, SIR/FIR) Female | |
| RJ-45 Female Output | |
| VGA (15 pin, High Density D-Sub) Female Input | |
| Remote Unit Connectors | HDMI (19 pin) Female Output |
| RJ-45 Female Input | |
| Environmental | |
| Humidity | 0% - 80 % RH (non-condensing) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | port selection LEDs |
| Status LED (remote) | |
| status LEDs (local) | |
| Packaging Information | |
| Shipping (Package) Weight | 1.7 kg [3.7 lb] |
| Performance | |
| Audio Specifications | 7.1 Surround Sound |
| Max Distance | 70 m / 230 ft |
| Maximum Cable Length | 70 m [229.6 ft] |
| Maximum Digital Resolutions | 4096 x 2160 (4K) @ 30 Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 40 mm [1.6 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 918 g [32.4 oz] |
| Product Width | 160 mm [6.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | 4 ft [1.2 m] RJ45 cable |
| 5 ft [1.5m] RJ11 cable | |
| foot pads | |
| HDBaseT receiver | |
| IR remote control | |
| mounting brackets | |
| multi-input HDBaseT extender | |
| quick-start guide | |
| RJ11-to-RS232 converter | |
| screw kit | |
| universal power adapter (NA, EU, UK, ANZ) | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Maximum refresh rate | 60 Hz |
| Audio system System used to play music or speech. | Multichannel |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 720p,1080p,2160p |
| Remote control type | IrDA |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Daisy chain |
 |
| Rubber feet |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDBaseT certified |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH, TAA |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| HDMI in Port (socket) for HDMI input. | 2 |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| DisplayPorts in | 1 |
| 3.5 mm (1/8-inch) in |
|
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| External power adapter |
|
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 40 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 918 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 205 mm |
| Package depth The distance from the front to the back of the packaging. | 298 mm |
| Package height The distance from the top to the bottom of the packaging. | 62 mm |
| Package weight Weight of the packaged product. | 1.68 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | LAN (RJ-45),Phone (RJ-11) |
| Included power plug types | ANZ,EU,NA,UK |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Handheld remote control Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Mounting brackets included |
|
| Mounting kit |
|
| Technical details | |
| Audio support |
|
| SKU | 245903 |
| MPN | STDHVHDBT |
| Brand | Startech |
| Product Condition | Brand New/Unused |
