SERIAL=up to 250kbps, USB = up to 12MBPS

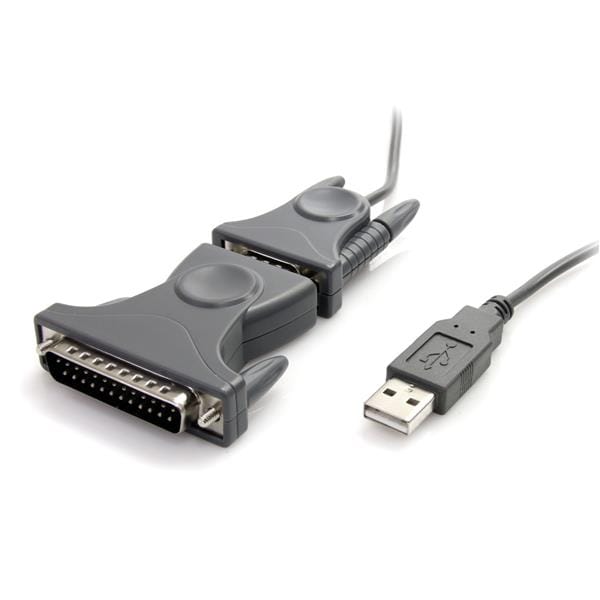

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.
A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | USB Type-A (4 pin) USB 2.0 Male |
| External Ports | DB-25 (25 pin, D-Sub) Male |
| DB-9 (9 pin, D-Sub) Male | |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | Prolific - PL-2303 |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 90 g [3.2 oz] |
| Performance | |
| Data Bits | 4, 5, 6, 7, 8 |
| FIFO | 512 Bytes |
| Flow Control | None, Xon/ Xoff, Hardware |
| Max Baud Rate | 230.4 Kbps |
| Parity | None, Even, Odd, Mark, Space |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Physical Characteristics | |
| Cable Length | 0.9 m [3 ft] |
| Color | Gray |
| Enclosure Type | Plastic |
| Product Length | 0.9 m [3 ft] |
| Product Weight | 70 g [2.5 oz] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Mac OS X? 10.6 to 10.12 Linux 2.4.x to 4.4.x LTS Versions only |
| What's in the Box | |
| Included in Package | 3ft USB to RS232 Cable |
| DB9 to DB25 Serial Adapter | |
| Driver CD | |
| Manual | |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB 2.0 |
| Connector 2 This is the second connector in the device. | DB-25 + DB-9 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Cable length How long the cable is. | 0.9 m |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Gray |
| Housing material What the casing of the product is made of. | Plastic |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Prolific - PL-2303 |
| Data bits | 4,5,6,7,8 |
| Stop bits | 1,1.5,2 |
| Flow Control type | N,XON/XOFF |
| Baud rate | 230.4 Kbit/s |
| Parity bit | Even,Mark,N,Odd,Space |
| FIFO (First In, First Out) | 512 B |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | - Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2016, 2019 - Mac OS X 10.6 - 10.14 - Linux 2.4.x to 4.11.x LTS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Relative humidity | 5 - 85% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 70 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 143 mm |
| Package depth The distance from the front to the back of the packaging. | 172 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 143 g |
| Package length | 6.89 |
| Packaging content | |
| Manual |
 |
| Drivers included |
|
| SKU | 219044 |
| MPN | ICUSB232DB25 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
