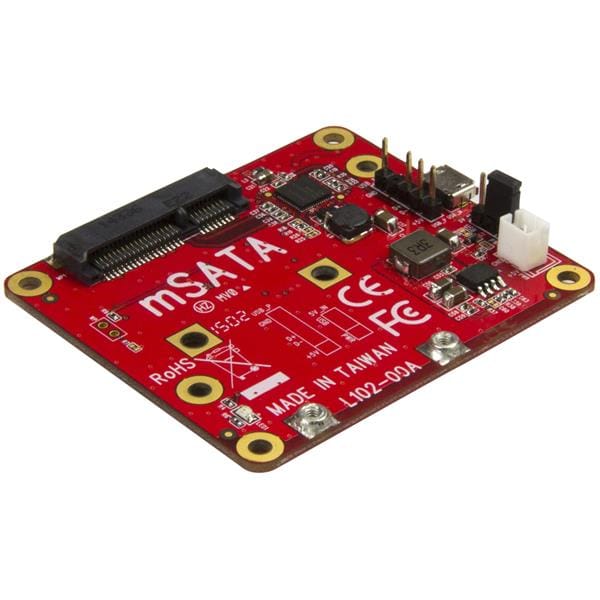

Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an mSATA drive. Perfect for custom projects and applications, this USB to mSATA converter supports all models of Raspberry Pi as well as other development boards.
Add storage capacity to your development board
This convenient USB 2.0 mSATA converter lets you overcome data storage limitations by enabling you to connect an mSATA drive through your board?s USB-A port.
A convenient integrated solution
The USB to mSATA converter integrates seamlessly with your existing development board. It?s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It allows you to utilize your mSATA drives with your development board, and take advantage of the small form factor of mini-SATA, ideal for applications with space limitations.
Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install and doesn?t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2MS1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Raspberry Pi is a trademark of the Raspberry Pi Foundation
| Connector(s) | |
| Drive Connectors | mSATA (52 pin, Mini SATA) Slot |
| Host Connectors | USB Micro-B (5 pin) |
| Environmental | |
| Humidity | 15% ~ 90% RH |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | Renesas - ?PD720231A |
| Compatible Drive Types | mSATA (Mini SATA) |
| Drive Size | mSATA (Full Size) |
| Interface | USB 2.0 |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Maximum Data Transfer Rate | 480 Mbps |
| MTBF | 5,077,966 hrs |
| Type and Rate | SATA III (6 Gbps) |
| USB 2.0 - 480 Mbit/s | |
| Physical Characteristics | |
| Color | Red |
| Product Height | 11 mm [0.4 in] |
| Product Length | 65 mm [2.6 in] |
| Product Weight | 18.2 g [0.6 oz] |
| Product Width | 55 mm [2.2 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | mSATA mounting screws |
| nuts | |
| quick-start guide | |
| screws | |
| standoffs | |
| USB to mSATA converter | |
| USB-A to Micro-B cable | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Micro-USB |
| Output interface The socket (port) where the output connectors are connected. | mSATA |
| SATA revision | 3.0 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Red |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 5077966 h |
| Country of origin Country where the device is made. | Taiwan |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Renesas - µPD720231A |
| Data transfer rate (max) | 6 Gbit/s |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 55 mm |
| Depth The distance from the front to the back of something. | 65 mm |
| Height The measurement of the product from head to foot or from base to top. | 11 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.2 g |
| Packaging data | |
| Cables included | USB |
| Quick installation guide |
|
| Package width The distance from one side of the packaging to the other. | 144 mm |
| Package depth The distance from the front to the back of the packaging. | 175 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 100 g |
| Other features | |
| Compatibility The other products, software and hardware this product can be used with. | Raspberry Pi |
| SKU | 244286 |
| MPN | PIB2MS1 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
