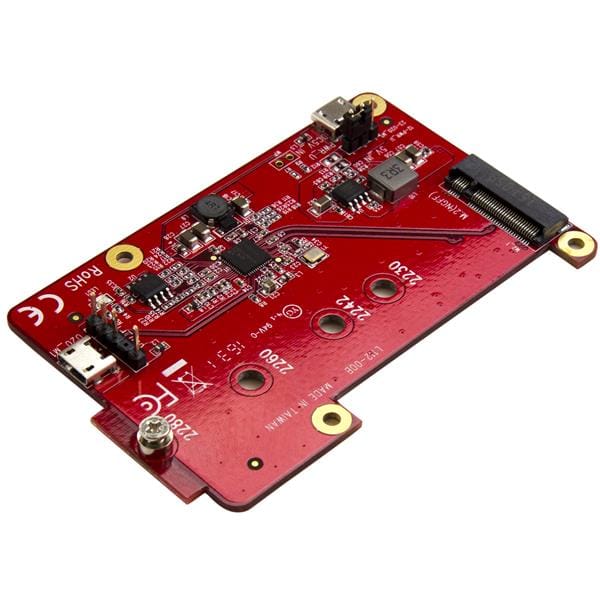

Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an M.2 NGFF SATA SSD. Perfect for custom projects and applications, this USB to M.2 SATA converter supports all models of Raspberry Pi as well as other development boards.
Add storage capacity to your development board
This convenient USB 2.0 to M.2 SATA converter lets you overcome data storage limitations of your development board by enabling you to connect an M.2 SATA drive through your board?s USB-A port.
A convenient integrated solution
The USB to M.2 SATA converter integrates seamlessly with your existing development board. It?s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It enables you to utilize your M.2 SATA drives with your dev board, and take advantage of the small form factor of M.2 SATA which makes it ideal for applications with space limitations.
Easy to install
Compatible with M.2 SATA drives (2230, 2242, 2260, and 2280), the converter is easy to install and doesn?t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2M21 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note:
This converter works with M.2 SATA SSDs only. To see which type of M.2 drive you have, simply look at the number of notches (or keys) on the drive end that connects with the M.2 socket. SATA-based M.2 drives have two notches (an M key and a B key), while PCIe-based M.2 drives have just one notch (an M key).
Raspberry Pi is a trademark of the Raspberry Pi Foundation
| Connector(s) | |
| Drive Connectors | M.2 (NGFF, B-Key) |
| Host Connectors | USB Micro-B (5 pin) |
| Other Interface(s) | USB Micro-B (5 pin) (Power) |
| Environmental | |
| Humidity | 15% ~ 90% RH |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | Renesas - ?PD720231A |
| Compatible Drive Types | M.2 (NGFF, B-Key) |
| Drive Size | 22m - M.2 NGFF |
| Interface | USB 2.0 |
| Number of Drives | 1 |
| Supported Drive Height(s) | 2230 |
| 2242 | |
| 2260 | |
| 2280 | |
| Indicators | |
| LED Indicators | Activity |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| MTBF | 5,839,751 hrs |
| Type and Rate | SATA III (6 Gbps) |
| USB 2.0 - 480 Mbit/s | |
| Physical Characteristics | |
| Color | Red |
| Max Drive Height | 80 mm [3.1 in] |
| Product Height | 11 mm [0.4 in] |
| Product Length | 88 mm [3.5 in] |
| Product Weight | 21.8 g [0.8 oz] |
| Product Width | 56 mm [2.2 in] |
| Power | |
| Power Source | USB-Powered |
| What's in the Box | |
| Included in Package | quick-start guide |
| set of converter-mounting hardware | |
| set of drive-mounting hardware | |
| USB to M.2 SATA converter | |
| USB-A to Micro-B cable | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Micro-USB |
| Output interface The socket (port) where the output connectors are connected. | M.2 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Red |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 5839751 h |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Renesas - µPD720231A |
| Data transfer rate (max) | 6 Gbit/s |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 56 mm |
| Depth The distance from the front to the back of something. | 88 mm |
| Height The measurement of the product from head to foot or from base to top. | 11 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 21.8 g |
| Packaging data | |
| Cables included | USB |
| Quick installation guide |
|
| Package width The distance from one side of the packaging to the other. | 142 mm |
| Package depth The distance from the front to the back of the packaging. | 170 mm |
| Package height The distance from the top to the bottom of the packaging. | 30 mm |
| Package weight Weight of the packaged product. | 110 g |
| Package volume | 100 cm³ |
| SKU | 244279 |
| MPN | PIB2M21 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
