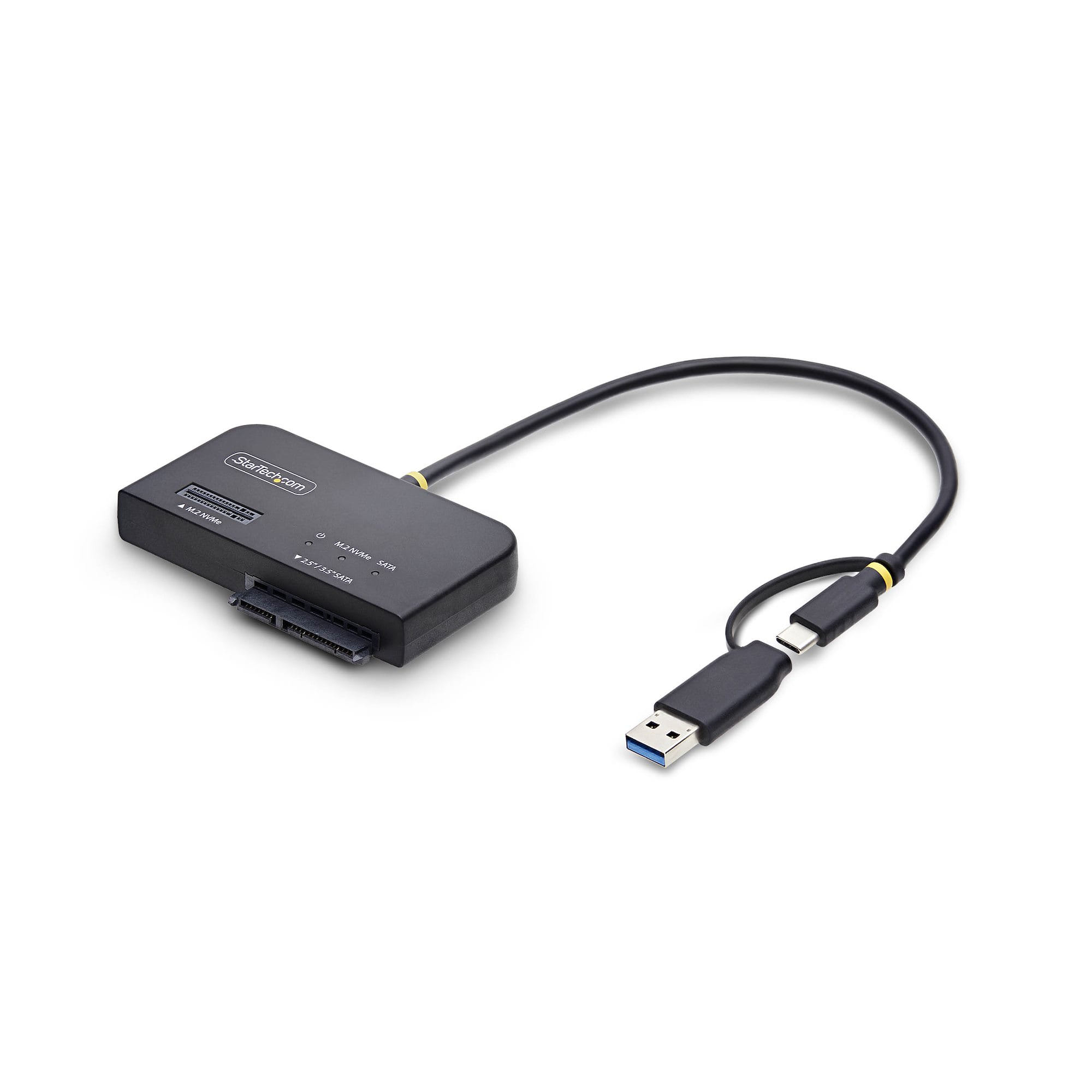

StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key, HDD, SSD, M.2, Serial ATA III, 2.5,3.5", USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Black, Acrylonitrile butadiene styrene (ABS)
Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps
Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.
External Drive Access over USB-C and USB-A
Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.
Compact Form Factor
Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access.
Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.
External Drive Access over USB-C and USB-A
Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.
Compact Form Factor
Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access.
| Hard drive | |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | HDD, SSD |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | M.2, Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Acrylonitrile butadiene styrene (ABS) |
| Maximum data transfer rate | 10 Gbit/s |
| Hot-swap |
 |
| TRIM support |
|
| LED indicators |
|
| UASP support |
|
| Cooling | |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 0 fan(s) |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 12 V |
| Input current | 2 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Power plug type | Type H |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88.4 mm |
| Depth The distance from the front to the back of something. | 360.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 14.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 190 mm |
| Package depth The distance from the front to the back of the packaging. | 123 mm |
| Package height The distance from the top to the bottom of the packaging. | 54 mm |
| Package weight Weight of the packaged product. | 330 g |
| Packaging content | |
| AC adapter included |
|
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide |
|
| Interface adapters included | USB Type-A male - USB Type-C female |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Other features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | JMS581DC |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 20 pc(s) |
| SKU | 833858 |
| MPN | USB31CSAT3M2E |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Adapter Type | Storage Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.startech.com/ |
