Wall-mountable, 921.6Kbps max transfer rate

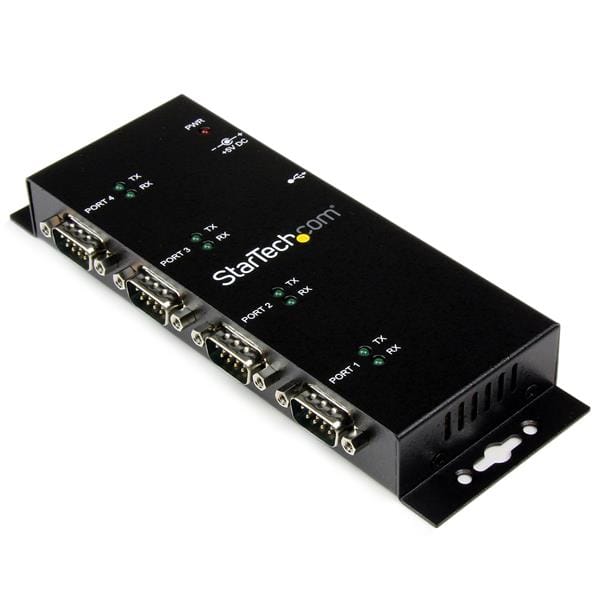

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI FT4232HL |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 4 |
| Indicators | |
| LED Indicators | Each, Tx/Rx Activity indicators |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 kg [1.1 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Maximum Data Transfer Rate | 921.6Kbps |
| MTBF | 282713.5 hours |
| Parity | Odd, Even, Mark, Space, None |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 26 mm [1 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 450 g [15.9 oz] |
| Product Width | 66.5 mm [2.6 in] |
| Power | |
| Plug Type | M |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.12 Linux 2.4.x to 4.4.x LTS Versions only |
| What's in the Box | |
| Included in Package | 6 ft USB A to B cable |
| DIN rail kit | |
| Driver CD | |
| Instruction Manual | |
| USB to RS-232 Serial Adapter | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 2.0 Type-B |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | Serial |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 4 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| LED indicators | Activity |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source type What the power source is. | USB |
| Power plug type | Type M |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
 |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Other operating systems supported | Windows XP Embedded |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 59 mm |
| Depth The distance from the front to the back of something. | 1788 mm |
| Height The measurement of the product from head to foot or from base to top. | 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 216 mm |
| Package depth The distance from the front to the back of the packaging. | 152 mm |
| Package height The distance from the top to the bottom of the packaging. | 50 mm |
| Package weight Weight of the packaged product. | 518 g |
| Package length | 8.66 |
| Packaging content | |
| Cables included | USB |
| Manual |
|
| DIN rail kit included |
|
| Drivers included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| Data bits | 7,8 |
| Stop bits | 1,2 |
| Parity bit | Even,Mark,N,Odd,Space |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 921.6 Kbit/s |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 282713.5 h |
| Other features | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB 2.0 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | FTDI - FT4232HL |
| SKU | 218981 |
| MPN | ICUSB2324I |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
