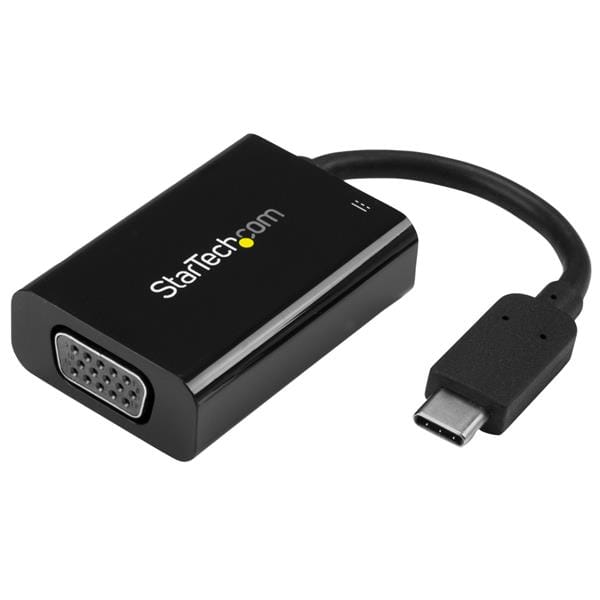

This USB-C™ to VGA adapter lets you connect your laptop or MacBook with USB Type-C™ to a VGA display. The video adapter features USB Power Delivery, which enables you to provide power to your laptop while you're outputting video to a VGA display.
USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook and Chromebook Pixel™. It's also compatible with Thunderbolt™ 3 ports.
Charges your laptop
Unlike some video adapters that take up your laptop?s USB-C charge port while you're outputting video and prevent you from charging your computer, this video adapter supports USB Power Delivery up to 60 Watts and features an additional USB-C port. This means you can charge your laptop, even while outputting video, by simply connecting the laptop?s power adapter to the additional port. It?s the perfect solution for laptops that only have a single USB-C port.
Promotes portability
This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design. It?s the perfect accessory to carry with your MacBook or Chromebook, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Connects easily
USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always connect. This saves you the hassle and embarrassment of struggling with your device while you're trying to deliver a presentation or sharing information.
Maintains crystal-clear picture quality
The adapter supports video resolutions up to 2048x1280 (60Hz), easily supporting your 1080p or 720p high-definition monitors, projectors or TVs. You?ll be surprised at the picture quality the adapter provides, even when it's connected to a legacy VGA display. The adapter harnesses the video capabilities that are built into your USB Type-C connection to deliver every detail in stunning high definition.
The CDP2VGAUCP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | USB-C (24 pin) DisplayPort Alt Mode Male Input |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Hardware | |
| Converter Type | Adapters |
| Output Signal | VGA |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Maximum Analog Resolutions | 2048 x 1280 @ 60Hz |
| Maximum Power Delivery Support | 60 W |
| Supported Resolutions | 2048 x 1280 @ 60Hz 1920 x 1200 1920 x 1080 1280 x 720 1680 x 1050 1600 x 900 1440 x 900 1360 x 768 1280 x 800 1280 x 768 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Accent Color | Black |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 24 g [0.8 oz] |
| Product Width | 32 mm [1.3 in] |
| What's in the Box | |
| Included in Package | USB-C to VGA adapter |
| Performance | |
| DVI output |
 |
| HDMI output The device features an HDMI output. |
|
| DisplayPort output The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. |
|
| Number of displays supported The number of displays that can be used with this product. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-C |
| USB connector gender | Male |
| VGA (D-Sub) output |
 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1280 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800,1360 x 768 (WXGA),1440 x 900,1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2048 x 1280 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ITE - IT6516, VIA/VLI - VL100 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC, CE, REACH |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Integrated USB cable |
|
| USB cable length | 0.102 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 33 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 24 g |
| Package width The distance from one side of the packaging to the other. | 148 mm |
| Package depth The distance from the front to the back of the packaging. | 173 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 109 g |
| Logistics data | |
| Quantity per master (outer) case | 40 pc(s) |
| Master (outer) case width | 33 cm |
| Master (outer) case length | 36.2 cm |
| Master (outer) case height | 32 cm |
| SKU | 240373 |
| MPN | CDP2VGAUCP |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
