USB 3.1 Gen 2, 10 Gbps Max Data Rate, SATA III 6GBPS

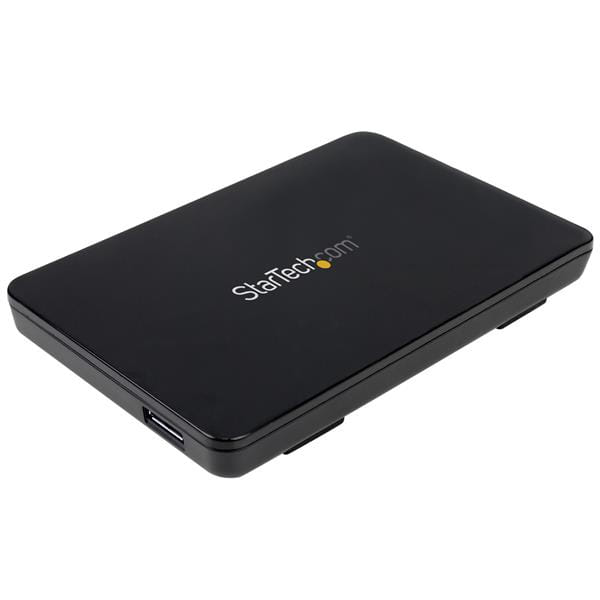

Now it's easier than ever to access your data wherever you go. This USB 3.1 Gen 2 (10 Gbps) single-drive enclosure for 2.5? solid-state or hard drives gives you an ultra-fast, portable external storage solution.
Light-weight and tool-free for easy portability
Engineered with a durable and lightweight housing, the enclosure tucks easily into a laptop bag or carrying case for portable storage. It?s completely tool-free so you can install your drives quickly on the fly.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps ? twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfer.
Powered directly from USB port
The enclosure connects easily to a host computer, with no external power required. It comes with a USB A to Micro B cable, providing backward compatibility with existing USB ports or hardware. It also provides UASP support for enhanced performance.
The S251BPU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Female |
| Host Connectors | USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps) Female |
| Environmental | |
| Humidity | Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 65?C (14?F to 149?F) |
| Hardware | |
| Bus Type | USB 3.1 Gen 2 |
| Chipset ID | ASMedia - ASM1351 |
| Compatible Drive Types | SATA |
| Drive Installation | Fixed |
| Drive Size | 2.5in |
| Fan(s) | No |
| Interface | USB 3.1 Gen 2 |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | Power & Activity |
| Packaging Information | |
| Shipping (Package) Weight | 195 g [6.9 oz] |
| Performance | |
| Max Drive Capacity | Currently tested with hard drives up to 2TB at 7200 RPM |
| Maximum Data Transfer Rate | 10 Gbps |
| TRIM Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Max Drive Height | 9.5 mm [0.4 in] |
| Product Height | 15 mm [0.6 in] |
| Product Length | 132 mm [5.2 in] |
| Product Weight | 74 g [2.6 oz] |
| Product Width | 88 mm [3.5 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | drive cushion |
| quick start guide | |
| USB 3.1 to 2.5" SATA HDD enclosure | |
| USB cable | |
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Storage drive size The size of the storage drive, given in inches (''). | 2.5" |
| Supported storage drive interfaces | Serial ATA |
| Supported storage drive heights | 7,9.5 mm |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 2 TB |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type The type of USB connector/port that this product has. | Micro-USB B |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Integrated USB cable |
 |
| Design | |
| Product type The sub-category of the product. | HDD/SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| LED indicators | Activity,Power |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASMedia - ASM1351 |
| UASP support |
|
| Power | |
| Power source type What the power source is. | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88 mm |
| Depth The distance from the front to the back of something. | 132 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 74 g |
| Package width The distance from one side of the packaging to the other. | 178 mm |
| Package depth The distance from the front to the back of the packaging. | 133 mm |
| Package height The distance from the top to the bottom of the packaging. | 44 mm |
| Package weight Weight of the packaged product. | 195 g |
| Packaging content | |
| Cables included | USB |
| Quick installation guide |
|
| SKU | 217602 |
| MPN | S251BPU313 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
