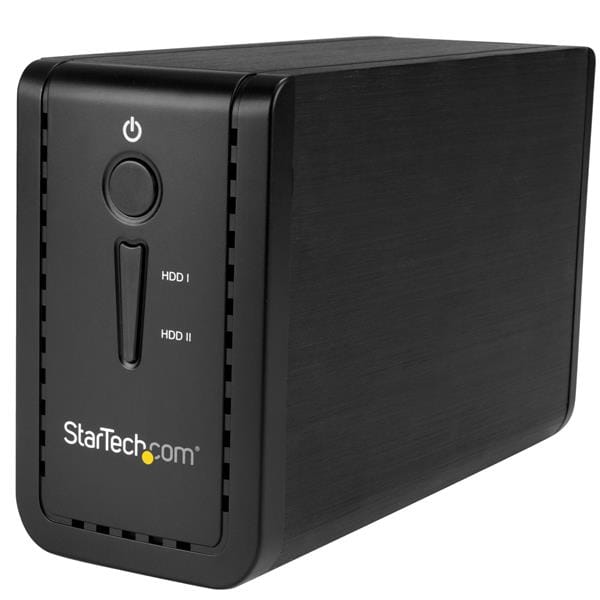

This USB 3.1 dual-bay drive enclosure makes it easy to add high-capacity, high-performance external data storage to your laptop or desktop computer. The dual-bay RAID enclosure supports two 3.5? SATA hard drives with ultra-fast data transfer speeds and configurable RAID modes.
High-speed, high-capacity data storage
Create a high-capacity, external data storage solution with support for two 3.5? HDDs, SSDs or SSHDs. This 2-bay 3.5" drive enclosure delivers fast file transfer rates up to 10Gbps with USB 3.1 Gen 2 performance. It supports SATA I, II and III and is enhanced with UASP to maximize the performance and speed of your SATA III drives.
The dual-drive RAID enclosure provides an effective solution for creative professionals, office employees, researchers, and medical personnel to store, access, back up, and protect important files. It gives you the peace of mind of knowing that your data is safe, secure, and protected.
Increase performance and data redundancy through RAID
With multiple RAID options, you can gain increased storage size, performance, or redundancy. The enclosure supports RAID 0, RAID 1, JBOD and SPAN (BIG), which enables you to choose your preferred backup mode and customize your drive arrangement based on your storage requirements.
Designed for reliability and versatility
To maximize both durability and reliability, the external RAID enclosure features an aluminum and plastic housing with a metal hard-drive mounting tray. It also features a built-in fan, to help dissipate operating heat and maintain an optimum operating environment for drive protection.
The dual-bay drive enclosure includes both a USB-C and USB-A cable for flexible use with the latest laptops and tablets, equipped with a USB-C™ port, Thunderbolt™ 3 USB-C port, as well as legacy devices. The enclosure is OS independent, requiring no additional software or drivers.
The S352BU313R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| Host Connectors | USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) |
| Environmental | |
| Humidity | 5%~95% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 65?C (14?F to 149?F) |
| Hardware | |
| Bus Type | USB 3.1 Gen 2 |
| Chipset ID | ASMedia - ASM1352R |
| Compatible Drive Types | SATA |
| Drive Installation | Fixed |
| Drive Size | 3.5in |
| Fan Bearing Type | Sleeve Bearing |
| Fan(s) | Yes |
| Fans | 50 mm |
| Interface | USB 3.1 Gen 2 |
| Number of Drives | 2 |
| Indicators | |
| LED Indicators | Drive Activity |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 173.5 g [6.1 oz] |
| Performance | |
| 4Kn Support | Yes |
| Max Drive Capacity | Tested up to 10TB |
| Maximum Data Transfer Rate | 10 Gbps |
| MTBF | 100,000 hours |
| RAID | Yes |
| Supported RAID Modes | BIG (Spanning or Concatenation) |
| JBOD - (Just a Bunch of Disks) | |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| TRIM Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 21.5 mm [0.8 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 620 g [21.9 oz] |
| Product Width | 77 mm [3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.0A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3.0A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36W |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | drive screws |
| dual-bay enclosure | |
| enclosure stand | |
| quick-start guide | |
| universal power adapter (NA/JP, UK, EU, AU) | |
| USB-A to USB-B cable | |
| USB-C to USB-B cable | |
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Storage drive size The size of the storage drive, given in inches (''). | 3.5" |
| Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,BIG,JBOD |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 10 TB |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| USB connector gender | Female |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Product type The sub-category of the product. | HDD/SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum, Plastic |
| LED indicators | Activity,Power |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 5 cm |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASMedia - ASM1352R |
| UASP support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| External power adapter |
|
| Compatible power plug types | AU,EU,UK,US |
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 1 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 75 mm |
| Depth The distance from the front to the back of something. | 190 mm |
| Height The measurement of the product from head to foot or from base to top. | 125 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| Package width The distance from one side of the packaging to the other. | 186 mm |
| Package depth The distance from the front to the back of the packaging. | 261 mm |
| Package height The distance from the top to the bottom of the packaging. | 151 mm |
| Package weight Weight of the packaged product. | 1.75 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB,USB Type-C |
| Stand included |
|
| Screws included |
|
| Quick installation guide |
|
| Other features | |
| Power plug type | Type M |
| SKU | 248773 |
| MPN | S352BU313R |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
