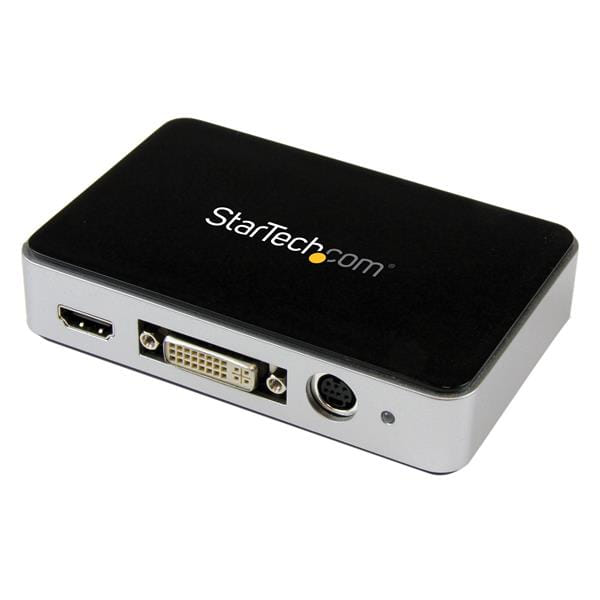

This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
Seamless picture quality at 60 FPS
Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.
H.264 encoding for wide device compatibility
The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac®, iOS® and Android™ with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch.
This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft® DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).
Flexible Input Solutions for Convenient Compatibility
With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter (SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that?s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Notes:
- A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers.
- Will not record digitally encrypted content.
- Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S400 or PEXUSB3S4.
Computer System Requirements:
- Operating System: Microsoft® Windows® Vista / 7 / 8 / 8.1 / 10 (32/64-bit)
- CPU: i3 Dual Core 2.8GHz or higher
- Memory: 2 GB
- USB 3.0 host controller (Confirmed support with: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100)
| Connector(s) | |
| Connector B | Component Video (3 x RCA) Female Input |
| Composite Video (1 x RCA) Female Input | |
| DVI-I (29 pin) Female Input | |
| HDMI (19 pin) Female Input | |
| Stereo Audio (2 x RCA) Female Input | |
| S-Video (4 pin, Mini-DIN) Female Input | |
| USB Type-B (9 pin) USB 3.0 Female Output | |
| VGA (15 pin, High Density D-Sub) Female Input | |
| Environmental | |
| Humidity | 20-80% RH Non-Condensing |
| Operating Temperature | 0?C to 35?C (32?F to 95?F) |
| Storage Temperature | -5?C to 40?C (23?F to 1604?F) |
| Hardware | |
| Audio | Yes |
| Converter Type | Format Converter |
| Industry Standards | NTSC, PAL-M, PAL-60, PAL Video Encoding: MPEG4/H.264 |
| NTSC, PAL-M, PAL-60, PAL Video Encoding: MPEG4/H.264 | |
| Packaging Information | |
| Shipping (Package) Weight | 410 g [14.5 oz] |
| Performance | |
| Audio Specifications | HDMI or Component RCA Stereo |
| General Specifications | This product is not compatible with Etron USB controllers, or ASMedia 1042 / 1042A USB controllers. |
| Maximum Analog Resolutions | 1920x1080 (1080p/30/50/60) |
| Maximum Digital Resolutions | Video input: 1920x1080 (1080p/30/50/60) Video Output: 1920x1080 (1080p/60) |
| Supported Resolutions | 1080i/p, 720p, 576i/p, 480i/p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 24.5 mm [1 in] |
| Product Length | 114.4 mm [4.5 in] |
| Product Weight | 106 g [3.7 oz] |
| Product Width | 75.5 mm [3 in] |
| Software | |
| OS Compatibility | Windows? 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) |
| Special Notes / Requirements | |
| Note | Confirmed compatible USB 3.0 host controllers: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100 |
| Incompatible USB 3.0 host controllers: ASmedia, Etron | |
| A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers. | |
| Will not record digitally encrypted content. | |
| What's in the Box | |
| Included in Package | A/V breakout cable |
| DVI to VGA adapter | |
| Instruction manual | |
| USB 3.0 Cable | |
| USB 3.0 HD Video Capture Device | |
| Technical details | |
| Internal The product is built in. |
 |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Mstar MST3363CNK-170 |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2242857 h |
| Supported aspect ratios The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device. | 4:3,16:9 |
| Video | |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC,PAL,PAL 60,PAL M |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Supported video modes The video modes that can be displayed by the device. | 1080i,1080p,480i,480p,576i,576p,720p |
| Audio | |
| Audio support |
 |
| File formats | |
| Video compression formats | H.264,MPEG4 |
| Ports & interfaces | |
| S-Video inputs quantity The number of ports (input sockets) for S-Video, which is a signalling standard for standard definition video, typically 480i or 576i. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DVI-I ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog. | 1 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 75.5 mm |
| Depth The distance from the front to the back of something. | 114.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 104 g |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Packaging data | |
| Package weight Weight of the packaged product. | 412 g |
| Package height The distance from the top to the bottom of the packaging. | 53 mm |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 215 mm |
| Packaging content | |
| Interface adapters included | DVI-I male - VGA female |
| Cables included | AV,USB |
| Manual |
|
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| SKU | 218813 |
| MPN | USB3HDCAP |
| Brand | Startech |
