Video resolutions up to 1920x1200

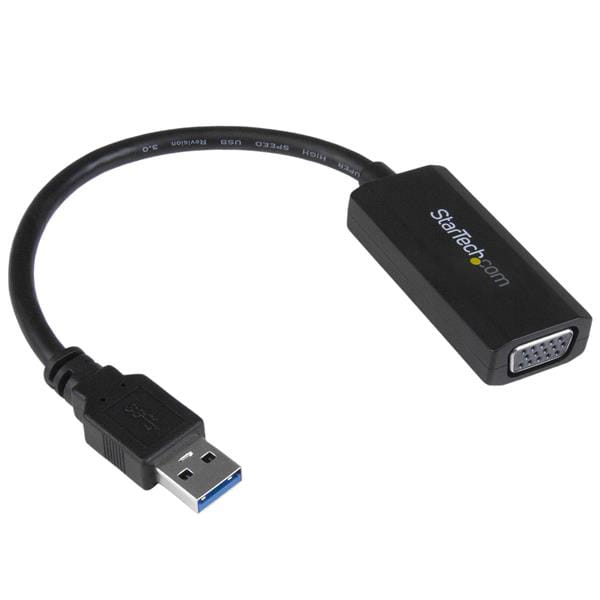

This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.
Save time and hassle with on-board driver installation
For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook™ or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.
Increase your productivity by connecting an additional display
Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.
USB 3.0 performance for business applications
Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems supporting an 800 x 600 resolution at 60Hz.
The USB32VGAV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | USB Type-A (9 pin) USB 3.0 Male Input |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Environmental | |
| Humidity | 40%~50% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -10?C to 55?C (14?F to 131?F) |
| Hardware | |
| Chipset ID | Fresco - FL2000DX |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 |
| Memory | 512MB DDR II |
| USB Pass-Through | No |
| Packaging Information | |
| Shipping (Package) Weight | 92 g [3.2 oz] |
| Performance | |
| Recommended System Requirements | Recommended System Requirements: Core 2.4GHz or higher processor (i5 recommended) 4GB of RAM |
| General Specifications | This USB video adapter uses a Fresco family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Trigger family chipset. |
| Maximum Analog Resolutions | USB 3.0: 1920x1200 USB 2.0: 800x600 |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 12 mm [0.5 in] |
| Product Length | 195 mm [7.7 in] |
| Product Weight | 26 g [0.9 oz] |
| Product Width | 25 mm [1 in] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? Vista, 7, 8, 8.1, 10 |
| What's in the Box | |
| Included in Package | Quick install guide |
| USB 3.0 to VGA adapter | |
| Performance | |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output |
 |
| HDMI output The device features an HDMI output. |
|
| DisplayPort output The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. |
|
| Number of displays supported The number of displays that can be used with this product. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| USB connector gender | Male |
| VGA (D-Sub) output |
 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 8 MB |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 800,1280 x 960,1600 x 900,1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1360 x 768 (WXGA),1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),800 x 600 (SVGA) |
| Supported video modes The video modes that can be displayed by the device. | 480p,720p,1080p |
| Output colour depth | 16/32 bit |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Fresco - FL2000DX |
| USB pass-through |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC, CE, REACH |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Integrated USB cable |
|
| USB cable length | 0.139 m |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64 |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM The smallest amount of RAM (random access memory) required to perform a particular function. | 4 GB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 55 °C |
| Operating relative humidity (H-H) | 40 - 50% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 25 mm |
| Depth The distance from the front to the back of something. | 195 mm |
| Height The measurement of the product from head to foot or from base to top. | 12 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.3 g |
| Package width The distance from one side of the packaging to the other. | 143 mm |
| Package depth The distance from the front to the back of the packaging. | 172 mm |
| Package height The distance from the top to the bottom of the packaging. | 30 mm |
| Package weight Weight of the packaged product. | 92 g |
| Packaging content | |
| Quick installation guide |
|
| SKU | 210525 |
| MPN | USB32VGAV |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
