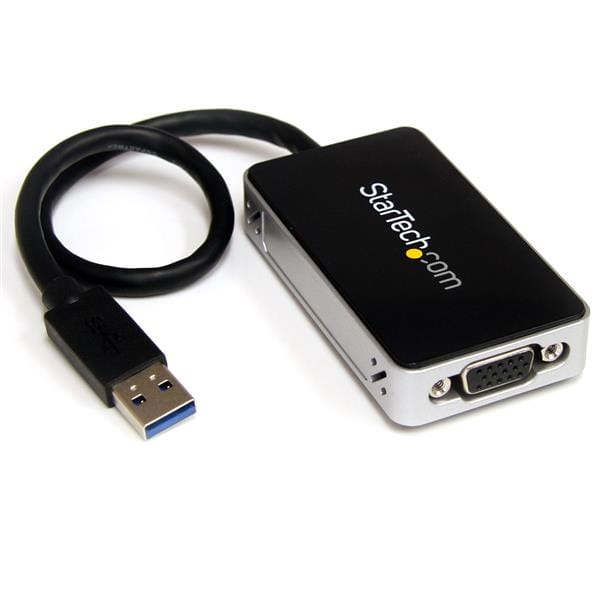

The USB32VGAE USB 3.0 to VGA Adapter turns an available USB 3.0 port into a VGA output with support for high resolution video (up to 2048x1152) - a convenient external video solution that makes it easy to add multi-monitor/dual display capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0 connection, backward compatible with USB 2.0 connection).
Leveraging the high-bandwidth (up to 5 Gbps) SuperSpeed USB 3.0 interface, the adapter functions as an external graphics card to deliver smooth, high-resolution content to your VGA display; the adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
| Connector(s) | |
| Connector A | USB Type-A (9 pin) USB 3.0 Male Input |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Environmental | |
| Humidity | <85% RH Non-Condensing |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -10?C to 75?C (14?F to 167?F) |
| Hardware | |
| Chipset ID | MCT Trigger 5 T5-302A |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 |
| Memory | 16MB DDR II |
| USB Pass-Through | No |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| General Specifications | This USB video adapter uses a Trigger family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. |
| Maximum Analog Resolutions | 2048x1152 |
| Supported Resolutions | Widescreen(16/32 bit): 2048x1152, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 160 mm [6.3 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15.5 mm [0.6 in] |
| Product Length | 78 mm [3.1 in] |
| Product Weight | 300 g [10.6 oz] |
| Product Width | 43.5 mm [1.7 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) |
| Special Notes / Requirements | |
| Note | Connect a maximum of five USB32VGAE adapters on a single PC - See manual for system requirements |
| System and Cable Requirements | 1~2 USB Displays Office Application: CPU: i3 Dual core 2.8GHz RAM: 2GB or higher Full HD Video: CPU: Quad Core 2.4GHz or Higher (i5 recommended) RAM: 4GB or higher |
| What's in the Box | |
| Included in Package | Driver CD |
| Installation guide | |
| USB 3.0 to VGA Adapter | |
| Performance | |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output |
 |
| HDMI output The device features an HDMI output. |
|
| DisplayPort output The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. |
|
| Number of displays supported The number of displays that can be used with this product. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| USB connector gender | Male |
| VGA (D-Sub) output |
 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 16 MB |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1152 pixels |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1400 x 1050 (SXGA+),1440 x 900,1600 x 1200 (UXGA),1680 x 1050 (WSXGA+) |
| Supported video modes The video modes that can be displayed by the device. | 720p,1080p |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Trigger - T5-302A |
| USB pass-through |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH, TAA |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Integrated USB cable |
|
| USB cable length | 0.16 m |
| Package type The type of product package e.g. box. | Box |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM The smallest amount of RAM (random access memory) required to perform a particular function. | 4 GB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 75 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 43.5 mm |
| Depth The distance from the front to the back of something. | 78 mm |
| Height The measurement of the product from head to foot or from base to top. | 15.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Package width The distance from one side of the packaging to the other. | 144 mm |
| Package depth The distance from the front to the back of the packaging. | 207 mm |
| Package height The distance from the top to the bottom of the packaging. | 38 mm |
| Package weight Weight of the packaged product. | 400 g |
| Packaging content | |
| Drivers included |
|
| Software CD |
|
| SKU | 247086 |
| MPN | USB32VGAE |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
