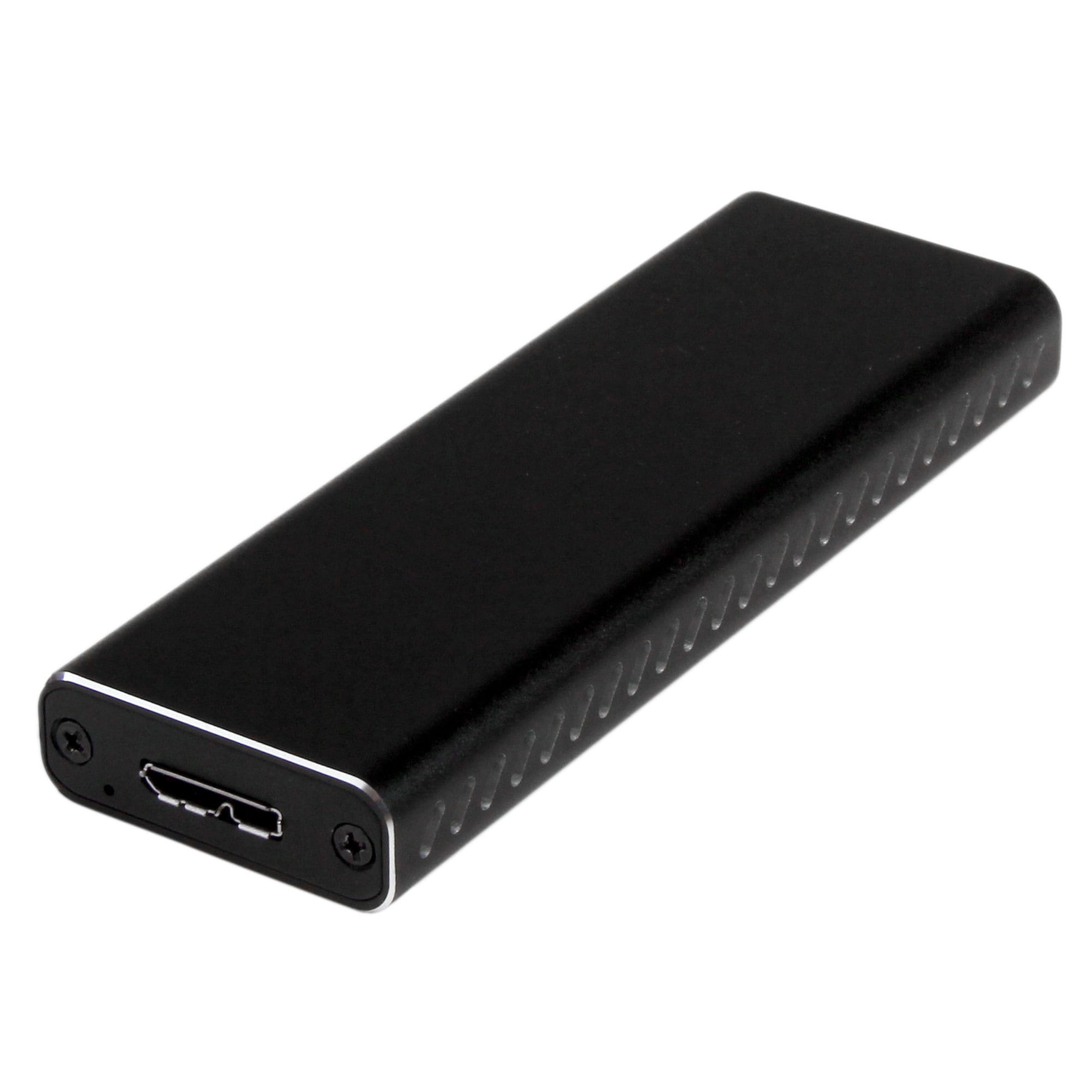

The SM2NGFFMBU33 external USB 3.0 to M.2 (NGFF) enclosure turns your SATA M.2 solid state drive into a portable, high speed USB 3.0 drive.
Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer.
This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter.
Durable aluminum construction helps to ensure your drive won't be damaged while you're on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive.
For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280.
The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
| Connector(s) | |
| Drive Connectors | M.2 (NGFF, B-Key) Receptacle |
| Host Connectors | USB 3.0 Micro-B (10 pin, SuperSpeed) Female |
| Environmental | |
| Humidity | 5% to 95% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 85?C (14?F to 185?F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | ASMedia - ASM1153E |
| Compatible Drive Types | M.2 (NGFF, B-Key) |
| Drive Installation | Fixed |
| Interface | USB 3.0 |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.3 lb] |
| Performance | |
| General Specifications | Not compatible with PCI-Express M.2 SSDs |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 15 mm [0.6 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 68 g [2.4 oz] |
| Product Width | 35 mm [1.4 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Instruction manual |
| Mini screw driver | |
| SSD screw kit | |
| USB 3.0 Cable | |
| USB 3.0 to M.2 NGFF SSD Enclosure | |
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Storage drive size The size of the storage drive, given in inches (''). | M.2 |
| Supported storage drive interfaces | M.2 |
| Supported storage drive lengths | 30,42,60,80 mm |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type The type of USB connector/port that this product has. | Micro-USB B |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Integrated USB cable |
 |
| Design | |
| Product type The sub-category of the product. | SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC, CE, TAA, REACH |
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Asmedia - ASM1153 |
| UASP support |
|
| Power | |
| Power source type What the power source is. | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 35 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50 g |
| Package width The distance from one side of the packaging to the other. | 163 mm |
| Package depth The distance from the front to the back of the packaging. | 131 mm |
| Package height The distance from the top to the bottom of the packaging. | 31 mm |
| Package weight Weight of the packaged product. | 125 g |
| Packaging content | |
| Cables included | USB |
| Screws included |
|
| Screwdriver included |
|
| Manual |
|
| SKU | 217588 |
| MPN | SM2NGFFMBU33 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
