Compatible with USB3.0/2.0/1.1(5Gbps/480Mbps/12Mbps)

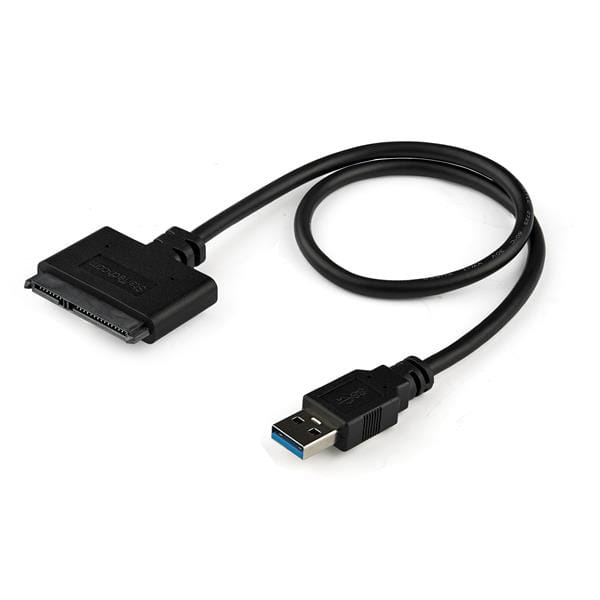

The USB3S2SAT3CB USB 3.0 to SATA adapter cable lets you connect a 2.5" SATA hard drive or solid state drive to your computer through an available USB port -- the easiest way to upgrade the hard drive in your laptop by adding an external SSD via USB 3.0.
The cable supports UASP, allowing for transfer speeds up to 70% faster than conventional USB 3.0, which enables you to utilize the full potential of your SATA III SSD/HDD, when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
This portable adapter features a lightweight design with no external power required, for easy storage in a laptop bag or carrying case. Plus, the cable-style adapter makes it easy to swap between hard drives without having to install your drives into an enclosure. Perfect for easy drive access for data migration, drive cloning and data backup applications.
The USB3S2SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | USB Type-A (9 pin) USB 3.0 Male |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0C to 60C (32F to 140F) |
| Storage Temperature | -10C to 70C (14F to 158F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | ASMedia - ASM1153E |
| Compatible Drive Types | SATA |
| Drive Size | 2.5in |
| Fan(s) | No |
| Interface | USB 3.0 |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 61 g [2.2 oz] |
| Performance | |
| General Specifications | Max power of the attached drive is 900 mA |
| Max Drive Capacity | Currently tested with up to 2TB 5900 RPM hard drives |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Product Height | 9 mm [0.4 in] |
| Product Length | 500 mm [19.7 in] |
| Product Weight | 41 g [1.4 oz] |
| Product Width | 49 mm [1.9 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Cable will work only with 2.5" SATA drives 3.5"/5.25" drives are not supported |
| What's in the Box | |
| Included in Package | Instruction Manual |
| USB 3.0 to SATA 2.5" HDD Adapter Cable | |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB 3.0 A |
| Connector 2 This is the second connector in the device. | SATA 7+15 pin |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Cable length How long the cable is. | 0.5 m |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASMedia - ASM1153E |
| UASP support |
 |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| Maximum supported storage capacity The maximum capacity of data storage on the device. | 2 TB |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8/8.1 (32/64-bit), Mac OS X, Linux |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Relative humidity | 40 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 49 mm |
| Depth The distance from the front to the back of something. | 500 mm |
| Height The measurement of the product from head to foot or from base to top. | 9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 42.5 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 220 mm |
| Package depth The distance from the front to the back of the packaging. | 198 mm |
| Package height The distance from the top to the bottom of the packaging. | 10 mm |
| Package weight Weight of the packaged product. | 61 g |
| Package length | 7.80 |
| Packaging content | |
| Manual |
|
| Other features | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB 3.0 |
| SKU | 219072 |
| MPN | USB3S2SAT3CB |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
