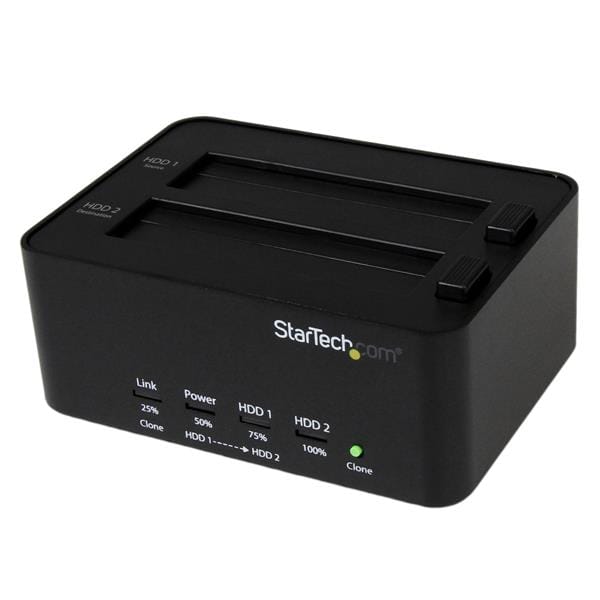

The SATDOCK2REU3 USB 3.0 Standalone Duplicator and Eraser Dock lets you connect your 2.5in/3.5in SATA HDDs or SSDs through SuperSpeed USB 3.0, with the ability to swap drives in and out as needed. The dock also functions as a standalone drive duplicator and eraser – an efficient and versatile solution for external drive management.
Featuring standalone Sector by Sector hard drive duplication with built-in LED progress bar, and support for 2 drive single pass over writing the SATDOCK22EU3 is a user-friendly all-in-one solution for any application requiring hard drive duplication or erasing.
With support for SATA I/II/III, and large capacity drives (tested up to 4TB) this HDD/SSD docking station is compatible with virtually any SATA hard drive, and greatly increases the storage/backup capabilities of your computer.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
The SATDOCK2REU3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| Host Connectors | USB Type-B (9 pin) USB 3.0 |
| Environmental | |
| Humidity | 5-90% |
| Operating Temperature | 0?C to 85?C (32?F to 185?F) |
| Storage Temperature | -10?C to 95?C (14?F to 203?F) |
| Hardware | |
| Chipset ID | Prolific - PL2775 |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Interface | USB 3.0 |
| Number of Drives | 2 |
| Indicators | |
| LED Indicators | HDD1 / 75% |
| HDD2 / 100% | |
| Link / 25% | |
| Power / 50% | |
| Packaging Information | |
| Shipping (Package) Weight | 710 g [25.1 oz] |
| Performance | |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM 3.5" hard drives and 1TB 7200 RPM 2.5" hard drives |
| Type and Rate | SATA II (3 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| Physical Characteristics | |
| Product Height | 62 mm [2.4 in] |
| Product Length | 128 mm [5 in] |
| Product Weight | 610 g [21.5 oz] |
| Product Width | 103 mm [4.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.2A |
| Input Voltage | 110V-240V AC |
| Output Current | 3000mA |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Destination drive must be the same size or larger than the source drive |
| What's in the Box | |
| Included in Package | HDD Dock |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| USB 3.0 Cable | |
| User Manual | |
| Technical details | |
| Product type The sub-category of the product. | HDD/SSD duplicator |
| Number of simultaneous copies The amount of copies that can be made at the same time. | 1 copies |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Duplicator operating modes | Copy,Erase |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum supported storage capacity The maximum capacity of data storage on the device. | 4 TB |
| Transfer rate | 11 GB/min |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Prolific - PL2775 |
| LED indicators | HDD,Link,Power |
| Hard drive | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| SSD support Solid-state drive (SSD), a type of memory, can be used with this product. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Input current | 1.2 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 95 °C |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 103 x 128 x 62 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 424 g |
| Packaging data | |
| Package weight Weight of the packaged product. | 885 g |
| Package height The distance from the top to the bottom of the packaging. | 130 mm |
| Package length | 6.30 |
| Package width The distance from one side of the packaging to the other. | 165 mm |
| Cables included | AC,USB |
| AC adapter included |
|
| Manual |
|
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | REACH, CE, FCC |
| SKU | 245000 |
| MPN | SATDOCK2REU3 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
