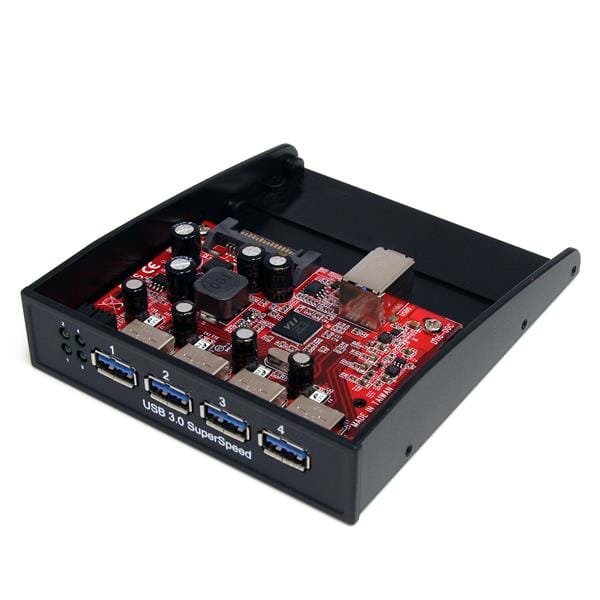

The 35BAYUSB3S4 3.5-inch Front Bay to 4-Port USB 3.0 Panel Hub turns any available 3.5-inch computer case front bay into a 4-Port USB 3.0 hub.
Using only a single USB connection, this front panel hub adds four easily accessible USB ports to the front of your computer case through a 3.5-inch bay, or through a 5.25-inch bay using the optional Front Bay Bracket Adapter (BRACKETFDBK) accessory. Each of the added ports is compliant with the USB 3.0 standard which supports up to 5 Gbps of bandwidth (10x faster than the USB 2.0 standard) and up to 900mA of power.
Accessorize with the PEXUSB3S11 PCI Express card to provide an internal USB 3.0 port, so as to keep the external ports free for external devices. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Internal Ports | SATA Power (15 pin) Plug |
| USB Type-B (9 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 5C to 50C (41F to 122F) |
| Storage Temperature | -25C to 70C (-13F to 158F) |
| Hardware | |
| Chipset ID | VLI - VL811 |
| Fast-Charge Port(s) | No |
| Interface | USB 3.0 |
| Ports | 4 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Indicators | |
| LED Indicators | USB Device Link (Green) |
| Packaging Information | |
| Shipping (Package) Weight | 214 g [7.6 oz] |
| Performance | |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Form Factor | Drive Bay |
| Product Height | 25 mm [1 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 100 g [3.5 oz] |
| Product Width | 100 mm [3.9 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| System and Cable Requirements | Available 3.5 inch front bay |
| Available USB 3.0 type A port | |
| What's in the Box | |
| Included in Package | 3.5" Front Panel |
| Instruction Manual | |
| Mounting Screw Kit | |
| USB 3.0 Cable | |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators |
|
| Cable length How long the cable is. | 0.12 m |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 100 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 175 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 208 g |
| Package length | 5.59 |
| Packaging content | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| SKU | 239106 |
| MPN | 35BAYUSB3S4 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
