Startech USB 3.0 / eSATA 2.5/3.5" SATA 3 Hard Drive Duplicator Dock

Item No:
245140
MPN:
SDOCK2U33RE
$188.82 $162.50 While stocks last!

Startech USB 3.0 / eSATA 2.5/3.5" SATA 3 Hard Drive Duplicator Dock

$188.82 $162.50 While stocks last!
Payment options
Shipping Information
  • ETA 18/11/2024 for shipping
  • Pre-order available, shipping ETA 18/11/2024
Store Availability
  • ETA 18/11/2024 at Bankstown Store
  • ETA 18/11/2024 at Castle Hill Store
Shipping Estimate

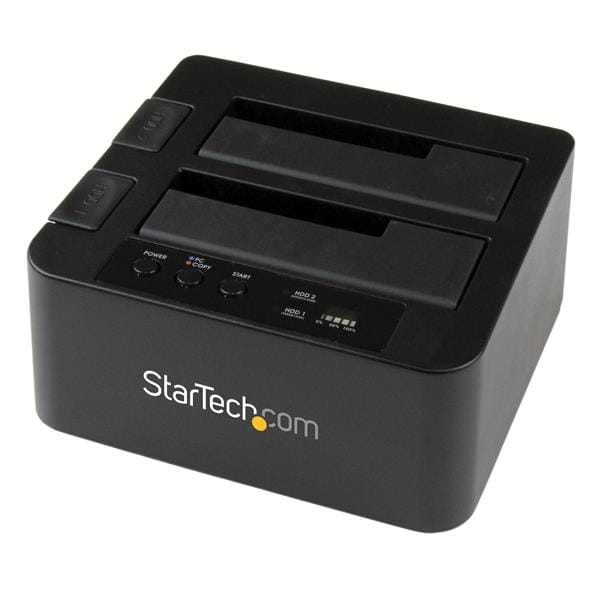

The SDOCK2U33RE Dual 2.5/3.5" SATA HDD/SSD duplicator dock lets you duplicate/clone an existing hard drive without the use of a host computer system -- or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port.

Versatile Features

The SDOCK2U33RE offers convenient dual-function performance. As a hard drive duplicator, the SDOCK2U33RE lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock the SDOCK2U33RE lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5/3.5" hard drives or solid state drives, tested up to 4 TB.

Fast Performance

With support for SATA III (6 Gbps) you can maximize efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6 Gbps. The Dock can also be connected through USB 3.0 with UASP for transfer speeds up 5 Gbps (70% faster than conventional USB 3.0). See our UASP testing results below for further details.

Hassle-free Operation

With push button operation and plug-and play installation, the duplicator dock has been specially designed for hassle-free operation.  The SDOCK2U33RE lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you'll  know exactly when it's time to start your next operation.

For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225

SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

Connector(s)
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle
Host ConnectorseSATA (7 pin, Data) Female
USB Type-B (9 pin) USB 3.0 Female
Environmental
Humidity20%RH ~ 80%RH
Operating Temperature5?C - 35?C (41?C to 95?C)
Storage Temperature-20?C - 50?C (-4?C to 122?C)
Hardware
Chipset IDJMicron - JMS562
Compatible Drive TypesSATA
Drive InstallationRemovable
Drive Size2.5in & 3.5in
InterfaceUSB 3.0 & eSATA
Number of Drives2
Indicators
LED IndicatorsDrive Status
Mode Indicator
Power Indicator
Progress Indicator
Packaging Information
Shipping (Package) Weight1020 g [36 oz]
Performance
Max Drive CapacityCurrently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
RAIDNo
Type and RateSATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorBlack
Product Height70 mm [2.8 in]
Product Length147 mm [5.8 in]
Product Weight500 g [17.6 oz]
Product Width132 mm [5.2 in]
Power
Input Current1.3 A
Input Voltage100 ~ 240 AC
Output Current3000 mA
Output Voltage12 DC
Power Consumption (In Watts)36
Power SourceAC Adapter Included
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in PackageeSATA cable
instruction manual
SATA HDD duplicator dock
universal power adapter (NA,UK,EU, ANZ)
USB 3.0 cable
Technical details
Product type The sub-category of the product. HDD/SSD duplicator
Number of simultaneous copies The amount of copies that can be made at the same time. 1 copies
Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. SATA
Duplicator operating modes Copy
Product colour The colour e.g. red, blue, green, black, white. Black
Hard drive
Supported HDD sizes The size of the hard disk drives which can be used by the device. 2.5,3.5"
System requirements
Windows operating systems supported Windows vesions wich can be used with the device.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Server operating systems supported Windows Server 2003,Windows Server 2003 x64,Windows Server 2008,Windows Server 2008 x64
Power
AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 5 - 35 °C
Weight & dimensions
Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). 132 x 147 x 70 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 500 g
Packaging data
Package weight Weight of the packaged product. 1.05 kg
Package height The distance from the top to the bottom of the packaging. 213 mm
Package length 7.36
Package width The distance from one side of the packaging to the other. 190 mm
Certificates
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance.
Certification CE, FCC
More Information
SKU 245140
MPN SDOCK2U33RE
Brand Startech
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period 2 Years Warranty
