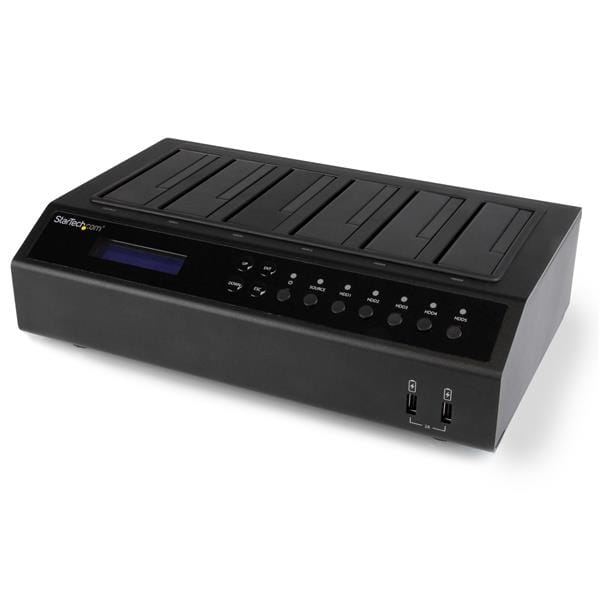

The SATDOCK5U3ER Hard Drive Duplicator & Docking Station lets you clone a 2.5in or 3.5in SATA hard drive (HDD) or solid-state drive (SSD) to five other SATA drives simultaneously, as a standalone device. The duplicator also lets you erase up to 5 drives, without a host connection.
You can also use the duplicator as a 5-bay HDD / SSD docking station, by connecting it to a host computer system through either USB 3.0 or eSATA. With support for high-capacity drives (tested with up to 6TB), this is a simple and cost-effective way to boost your data storage/backup capabilities.
Optimized Productivity
By copying data from one drive to five drives simultaneously, the hard drive cloner helps boost your productivity by avoiding the hassle of repeatedly swapping drives in and out during high volume duplication projects.
Plus, the dock supports erasing up to five drives simultaneously with multiple operating modes, including Quick Erase as well as Multipass Overwriting (DoD) -- the ideal solution for permanently erasing confidential information and helping to protect your business and your clients from identity theft.
Hassle-free Performance
With a built-in LCD display, the SATDOCK5U3ER makes it easy to monitor duplication progress and review copy/erase results and drive diagnostics during standalone operation.
The housing has also been specifically designed with ease-of-use in mind. The drive slots feature a dual-profile design to support hassle-free swapping between 2.5in and 3.5in hard drives and solid-state drives without having to use additional brackets or adapters.
Maximum Versatility
With the option to connect the docking station through either eSATA or USB 3.0, the SATDOCK5U3ER provides a versatile solution for expanding the storage capability of almost any laptop or desktop computer. For fast performance, you can connect the docking station to your computer through eSATA for efficient data transfer speeds up to 3 Gbps. For broader system compatibility, you can connect the dock through USB 3.0, which is also backward compatible with USB 2.0/1.1 host connections.
The SATDOCK5U3ER also provides two charge-only, fast-charge USB ports, that you can use to keep your iPhone®, iPad®, and Android™ tablets or smartphones charged.
You can also duplicate, erase or access other drive types in duplication and quick-erase applications using a drive adapter. The following StarTech.com adapters have been tested to ensure compatibility with this drive duplicator:
2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225
Built for dependable, long-term performance the SATDOCK5U3ER is durably constructed and backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | eSATA (7 pin, Data) Receptacle |
| USB Type-B (9 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 20%~80% RH |
| Operating Temperature | 5?C to 35?C (41?F to 95?F) |
| Storage Temperature | -20?C to 50?C (-4?F to 122?F) |
| Hardware | |
| Chipset ID | SunplusIT - SPIF260A ASMedia ? ASM1453 JMicron ? JMB393 |
| Compatible Drive Types | SATA |
| Drive Size | 2.5in / 3.5in |
| Fans | 60 mm |
| Number of Drives | 5 |
| Indicators | |
| LED Indicators | Docking station power |
| Source Drive Power and Activity | |
| Target Drive Power / Activity | |
| Packaging Information | |
| Shipping (Package) Weight | 2500 g [88.3 oz] |
| Performance | |
| General Specifications | 7 GB per minute duplication speed |
| Max Drive Capacity | Currently tested with up to 6TB 7200 RPM |
| Maximum Data Transfer Rate | 5 Gbps |
| Port Multiplier | Yes |
| Type and Rate | SATA II (3 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| Physical Characteristics | |
| Product Height | 75 mm [3 in] |
| Product Length | 315 mm [12.4 in] |
| Product Weight | 1500 g [52.9 oz] |
| Product Width | 151.8 mm [6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 2 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 5 A |
| Output Voltage | 19V DC |
| Power Consumption (In Watts) | 95 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | eSATA cable |
| instruction manual | |
| rubber feet (installed) | |
| universal power adapter (NA, UK, EU, ANZ) | |
| USB 3.0 cable | |
| USB 3.0\eSATA 1:5 SATA HDD duplicator dock | |
| Technical details | |
| Product type The sub-category of the product. | HDD duplicator |
| Number of simultaneous copies The amount of copies that can be made at the same time. | 5 copies |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB 3.0/eSATA |
| Duplicator operating modes | Copy,Erase |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Transfer rate | 5000 MB/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | SPIF260A, ASM1453, JMB393 |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| Port multiplier |
 |
| LED indicators | Activity,Power |
| Hard drive | |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 6000 GB |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Supported HDD interfaces The type of interfaces that can be used with the hard disk drive e.g. parallel ATA (PATA), serial ATA (SATA), SCSI. | Serial ATA II |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Input current | 2 A |
| Output voltage | 19 V |
| Output current | 5 A |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 50 °C |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 151.8 x 315 x 75 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.5 kg |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 195 x 383 x 270 mm |
| Package weight Weight of the packaged product. | 2.5 kg |
| Package height The distance from the top to the bottom of the packaging. | 197 mm |
| Package width The distance from one side of the packaging to the other. | 276 mm |
| Cables included | eSATA,USB |
| AC adapter included |
|
| Manual |
|
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| SKU | 245007 |
| MPN | SATDOCK5U3ER |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
